M110A-GMNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

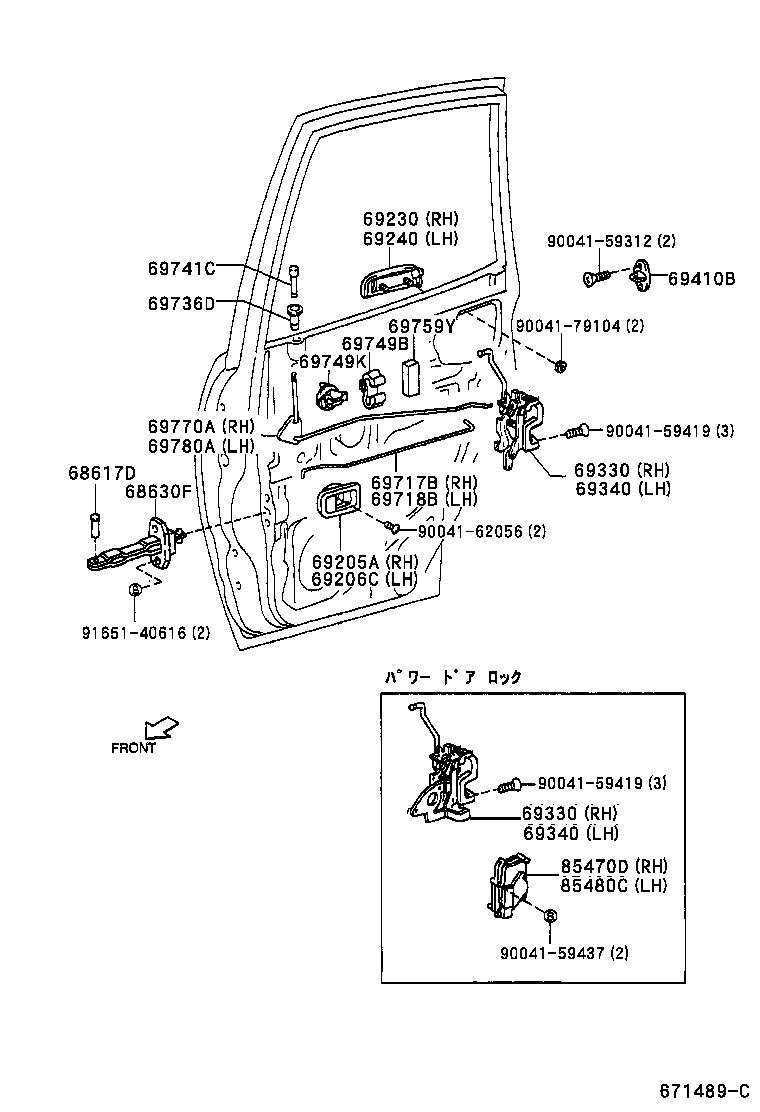

Click highlighted areas on diagram

diagram 68617D 68630F 69205A 69206C 69230 69240 69330 69330 69340 69340 69410B 69717B 69718B 69736D 69741C 69749B 69749K 69759Y 69770A 69780A 85470D 85480C 9004159312 9004159419 9004159419 9004159437 9004162056 9004179104 9165140616
Part # Description Qty Price
68617D - PIN, REAR DOOR CHECK
68617-87204

M10#,11#

 2
68630F - CHECK ASSY, REAR DOOR
68630-97201

M10#,11#

 2
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69270-8770733

M10#,11#..V,VS

DARK GRAY,TRIMS6,S8

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69280-8770733

M10#,11#..V,VS

DARK GRAY,TRIMS6,S8

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69210-9720213

M100,110

GRAYISH SEPIA ME.,S21

 1
69210-97201

M100,110..V

ﾌﾞﾗﾂｸ

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69220-9720213

M100,110

GRAYISH SEPIA ME.,S21

 1
69220-97201

M100,110..V

ﾌﾞﾗﾂｸ

 1
69330 - LOCK ASSY, REAR DOOR, RH
69303-97201

M10#,11#

 1
69330-97201

M100,110..V

ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B) OR ｱｼｽﾀﾊﾟﾂｹ-ｼﾞ*(D) OR ﾘﾄﾙﾊﾟﾂｹ-ｼﾞ

 1
69330 - LOCK ASSY, REAR DOOR, RH
69303-97201

M10#,11#

 1
69330-97201

M100,110..V

ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B) OR ｱｼｽﾀﾊﾟﾂｹ-ｼﾞ*(D) OR ﾘﾄﾙﾊﾟﾂｹ-ｼﾞ

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-97201

M100,110..V

ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B) OR ｱｼｽﾀﾊﾟﾂｹ-ｼﾞ*(D) OR ﾘﾄﾙﾊﾟﾂｹ-ｼﾞ

 1
69304-97201

M10#,11#

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-97201

M100,110..V

ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B) OR ｱｼｽﾀﾊﾟﾂｹ-ｼﾞ*(D) OR ﾘﾄﾙﾊﾟﾂｹ-ｼﾞ

 1
69304-97201

M10#,11#

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-87202

M10#,11#

 2
69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-97201

M10#,11#

 1
69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69714-97201

M10#,11#

 1
69736D - GUIDE, REAR DOOR LOCKING LINK
69751-9720103

M10#,11#

GRAY,TRIMS6,S8

 2
69741C - KNOB, REAR DOOR LOCK CONTROL
69747-8770313

M10#,11#

DARK GRAY,TRIMS6,S8

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-87701

M10#,11#

 2
69749K - CLAMP, REAR DOOR LOCK
69749-87702

M10#,11#

 2
69759Y - SILENCER, REAR DOOR LOCK LINK
69759-87207

M10#,11#

 2
69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH
69730-97201

M10#,11#

 1
69780A - LINK ASSY, REAR DOOR INSIDE LOCKING, LH
69740-97201

M10#,11#

 1
85470D - MOTOR ASSY, DOOR CONTROL, REAR RH
85470-97201

M10#,11#

 1
85480C - MOTOR ASSY, DOOR CONTROL, REAR LH
85480-97201

M10#,11#

 1
Common parts
90041-59312
90041-59419
90041-59437
90041-62056
90041-79104
91651-40616
