M110A-GMNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

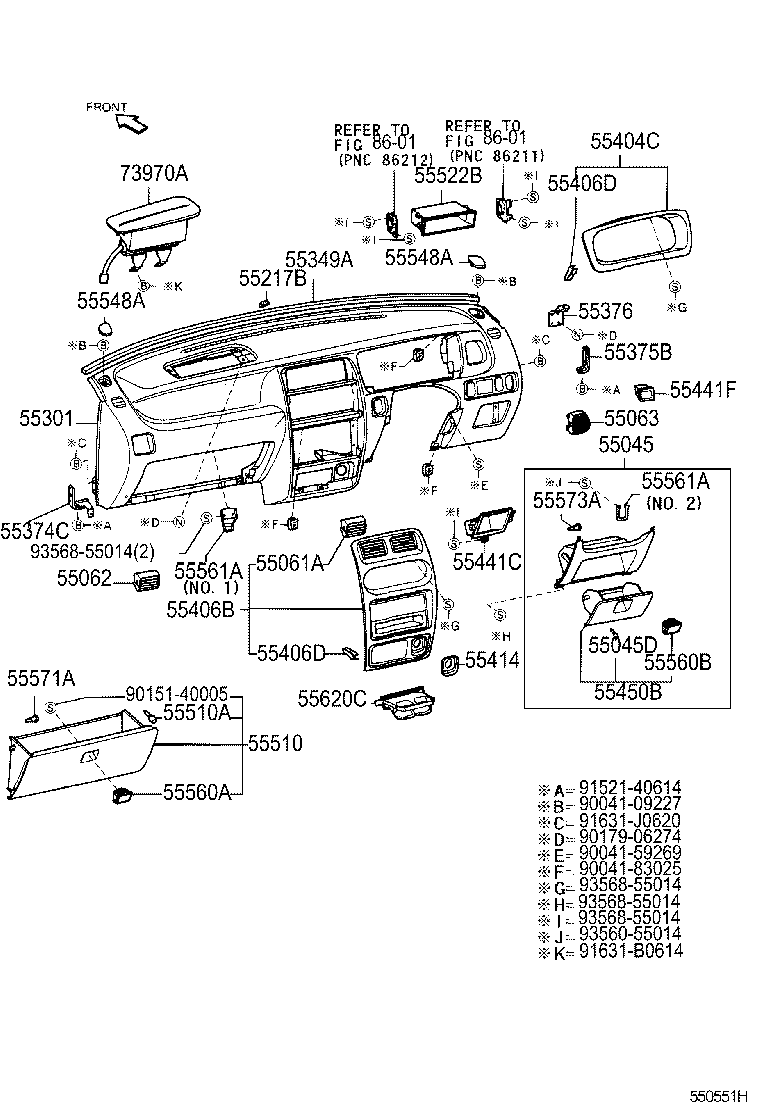

ILLUST NO. 1 OF 2(9809-0005)

Click highlighted areas on diagram

diagram 55045 55045D 55061A 55062 55063 55217B 55301 55349A 55374C 55375B 55376 55404C 55406B 55406D 55406D 55414 55441C 55441F 55450B 55510 55510A 55522B 55548A 55548A 55560A 55560B 55561A 55561A 55571A 55573A 55620C 73970A 8601 8601 9004109227 9004159269 9004183025 9015140005 9017906274 9152140614 91631B0614 91631J0620 9356055014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
55045-9720103

M10#,11#

DARK GRAY,TRIMS6

 1
55045D - CUSHION, GLOVE COMPARTMENT
90045-40163

M10#,11#

 2
55061A - REGISTER SUB-ASSY, INSTRUMENT PANEL
55061-97201

M100,110

 1
55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2
55062-8720303

M10#,11#

DARK GRAY,TRIMS6

 1
55063 - REGISTER SUB-ASSY, INSTRUMENT, NO.3
55063-97201

M100,110

 1
55217B - RETAINER, DASH PANEL SILENCER
55217-97201

M10#,11#

 3
55301 - PANEL SUB-ASSY, INSTRUMENT
55311-9720103

M10#,11#

DARK GRAY,TRIMS6

 1
55349A - CUSHION, INSTRUMENT PANEL
55349-97203

M100,110

 1
55349-97202

M100,110

 1
55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55374-97203

M10#,11#

 1
55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55375-97203

M10#,11#

 1
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-97201

M10#,11#

 2
55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55404-97201

M100,110

 1
55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
55406-97201

M100,110

 1
55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH)
90044-68091

M10#,11#

 6
55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH)
90044-68091

M10#,11#

 6
55414 - BEZEL, CIGAR LIGHTER HOLE
55414-97201

M10#,11#

 1
55441C - BOX, INSTRUMENT PANEL COIN
55441-9720103

M10#,11#

DARK GRAY,TRIMS6

 1
55441F - BOX, INSTRUMENT PANEL COIN
55441-8740113

M100,110..V

DARK GRAY,TRIMS6

 1
55450B - BOX ASSY, COIN
55450-9720103

M10#,11#

DARK GRAY,TRIMS6

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55501-9720103

M10#,11#

DARK GRAY,TRIMS6

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
90045-40163

M10#,11#

 2
55522B - COVER, RADIO TUNER OPENING
55522-87209

M100,110..V

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55545-9720103

M10#,11#

DARK GRAY,TRIMS6,右側

 1
55546-9720103

M10#,11#

DARK GRAY,TRIMS6,左側

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55545-9720103

M10#,11#

DARK GRAY,TRIMS6,右側

 1
55546-9720103

M10#,11#

DARK GRAY,TRIMS6,左側

 1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-8770223

M10#,11#

DARK GRAY,TRIMS6

 1
55560B - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-8770223

M10#,11#

DARK GRAY,TRIMS6

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-97201

M10#,11#

NO.1

 1
55561-97202

M10#,11#

NO.2

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-97201

M10#,11#

NO.1

 1
55561-97202

M10#,11#

NO.2

 1
55571A - HINGE, GLOVE COMPARTMENT DOOR
55571-87101

M10#,11#

 1
55573A - HINGE, GLOVE COMPARTMENT DOOR
55571-87101

M10#,11#

 1
55620C - HOLDER, INSTRUMENT PANEL CUP
55620-97201

M100,110

 1
73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER
73970-9720103

M100,110

DARK GRAY,TRIMS6

 1
Common parts
90041-09227
90041-59269
90041-83025
90151-40005
90179-06274
91521-40614
91631-B0614
91631-J0620
93560-55014
93568-55014
Linked diagrams
8601

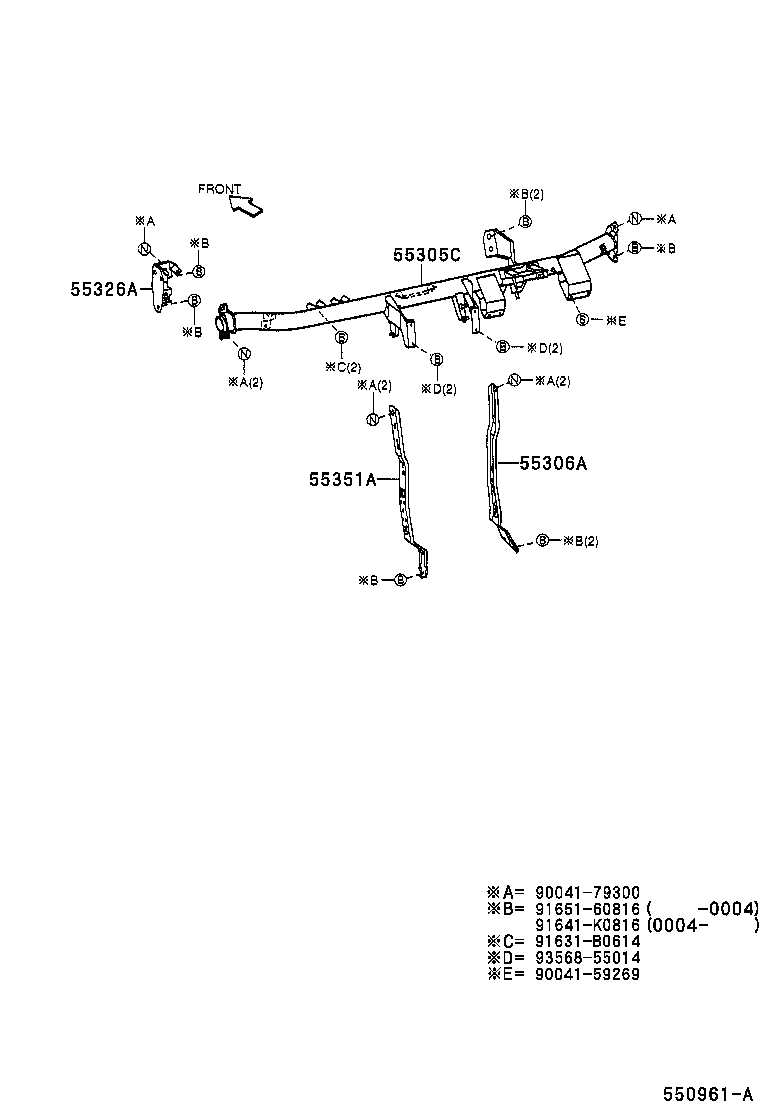

ILLUST NO. 2 OF 2(9809-0112)

Click highlighted areas on diagram

diagram 55305C 55306A 55326A 55351A 9004159269 9004179300 91631B0614 91641K0816 9165160816 9356855014
Part # Description Qty Price
55305C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL
55305-97201

M100,110

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55309-97201

M10#,11#

 1
55326A - STAY, INSTRUMENT PANEL, NO.1
61187-97202

M10#,11#

 1
55351A - BRACE, INSTRUMENT PANEL TO FLOOR
55351-97201

M10#,11#

 1
Common parts
90041-59269
90041-79300
91631-B0614
91641-K0816
91651-60816
93568-55014
