M110A-GMNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9809-0112)

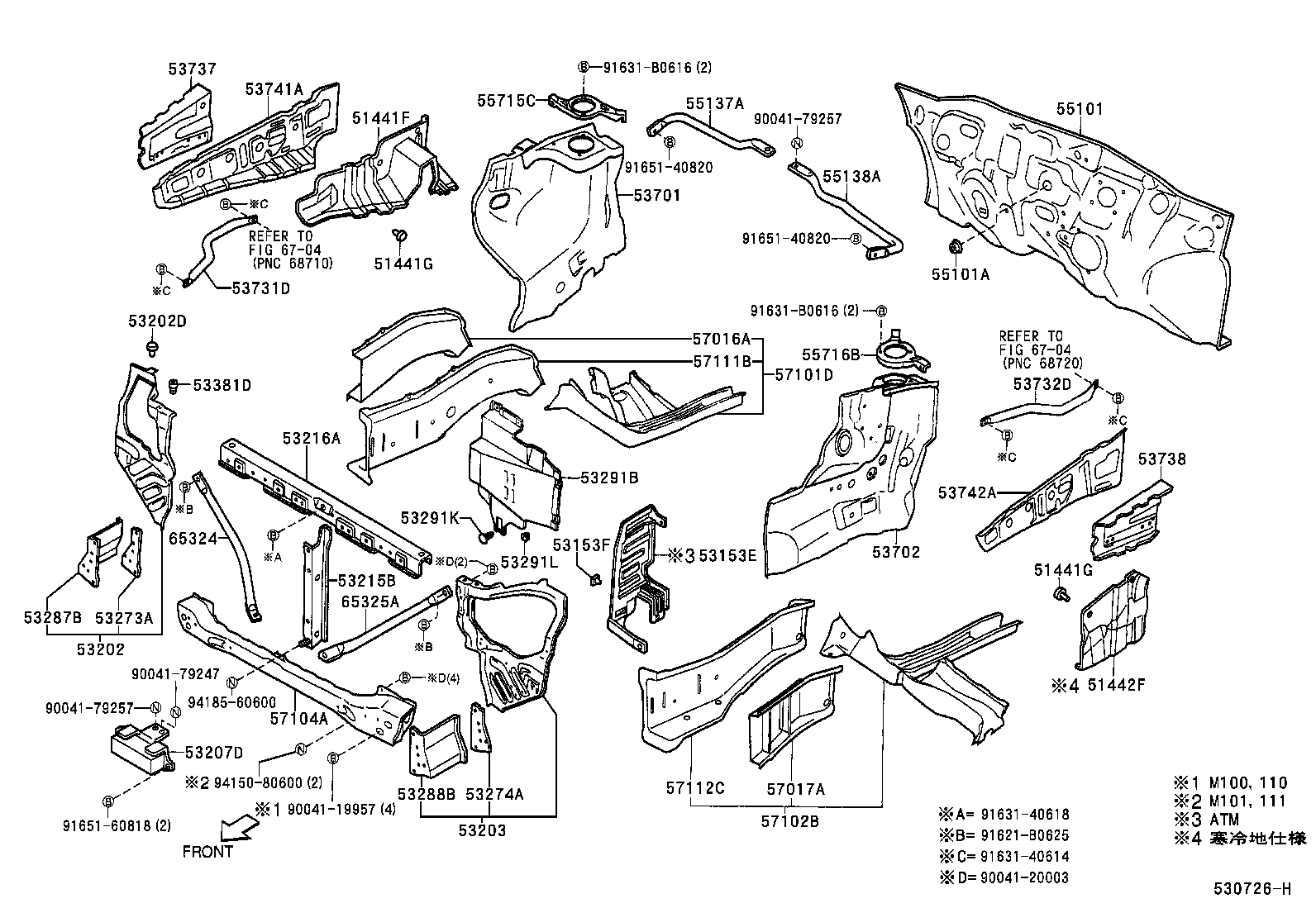

Click highlighted areas on diagram

diagram 51441F 51441G 51441G 51442F 53153E 53153F 53202 53202D 53203 53207D 53215B 53216A 53273A 53274A 53287B 53288B 53291B 53291K 53291L 53381D 53701 53702 53731D 53732D 53737 53738 53741A 53742A 55101 55101A 55137A 55138A 55715C 55716B 57016A 57017A 57101D 57102B 57104A 57111B 57112C 65324 65325A 6704 6704 9004119957 9004120003 9004179247 9004179257 9004179257 91621B0625 9163140614 9163140618 91631B0616 91631B0616 9165140820 9165140820 9165160818 9415080600 9418560600
Part # Description Qty Price
51441F - COVER, ENGINE UNDER, RH
51441-97202

M10#,11#

 1
51441G - CLIP, ENGINE UNDER COVER
90044-67357

M10#,11#

 3
51441G - CLIP, ENGINE UNDER COVER
90044-67357

M10#,11#

 3
51442F - COVER, ENGINE UNDER, LH
51442-97201

M10#,11#

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-97201

M10#,11#

 1
53202D - CUSHION, RADIATOR SUPPORT
90045-41224

M10#,11#

 2
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-97201

M10#,11#

 1
53207D - DAMPER SUB-ASSY, FRONT
53207-97201

M100,110

 1
53215B - SUPPORT, HOOD LOCK
53215-97201

M10#,11#

 1
53216A - SUPPORT, RADIATOR, UPPER
53216-97201

M100,110

 1
53273A - REINFORCEMENT, RADIATOR SUPPORT, RH
53273-97201

M10#,11#

 1
53274A - REINFORCEMENT, RADIATOR SUPPORT, LH
53274-97201

M10#,11#

 1
53287B - EXTENSION, RADIATOR SUPPORT, RH
53287-97201

M10#,11#

 1
53288B - EXTENSION, RADIATOR SUPPORT, LH
53288-97201

M10#,11#

 1
53291B - PLATE, RADIATOR COVER
53291-97201

M100,110

 1
53291K - CLIP, RADIATOR COVER PLATE
90044-6815901

M10#,11#

BLACK,B37 ,B52 ,G36 ,G37 ,R27 ,R29 ,S20 ,S21 ,S25 ,S26 ,T16 ,W09 ,W16 ,Y06

 1
53291L - CLAMP, RADIATOR COVER PLATE
88718-87236

M10#,11#

 4
53381D - BUMPER, HOOD TO FRONT SHROUD
53381-87701

M10#,11#

 2
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-97214

M100,110..V

ｱﾘ(ABS)

 1
53701-97213

M100,110..V

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-97209

M100,110..V

 1
53702-97210

M100,110..V

ｱﾘ(ABS)

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-97201

M10#,11#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53731-97201

M10#,11#

 1
53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53737-97201

M10#,11#

 1
53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53738-97201

M10#,11#

 1
53741A - PLATE, FENDER APRON REINFORCE, RH
53741-97201

M10#,11#

 1
53742A - PLATE, FRONT FENDER APRON REINFORCEMENT
53742-97201

M10#,11#

 1
55101 - PANEL SUB-ASSY, DASH
55101-97204

M10#,11#..5F

 1
55101A - PLUG, HOLE, NO.1(FOR DASH PANEL)
90048-74068

M101,111;M100,110..LVVT;M100,110..X..WVVT

 1
55137A - BRACE, DASH TO FRAME, RH
55137-97201

M10#,11#

 1
55138A - BRACE, DASH TO FRAME, LH
55138-97201

M10#,11#

 1
55715C - BRACE, COWL TOP TO APRON, RH
55715-97201

M10#,11#

 1
55716B - BRACE, COWL TOP TO APRON, LH
55716-97201

M10#,11#

 1
57016A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57016-97201

M100,110

 1
57017A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57017-97201

M100,110

 1
57017-97202

M10#,11#

 1
57101D - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-97202

M100,110

 1
57102B - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-97202

M100,110

 1
57102-97207

M100,110

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-97201

M100,110

 1
57111B - MEMBER, FRONT SIDE, RH
57111-97201

M100,110

 1
57112C - MEMBER, FRONT SIDE, LH
57112-97201

M100,110

 1
57112-97202

M10#,11#

 1
65324 - MEMBER, FRONT GUARD, NO.1
65324-97201

M100,110

 1
65325A - MEMBER, FRONT GUARD, NO.2
65325-97201

M100,110

 1
Common parts
90041-19957
90041-20003
90041-79247
90041-79257
91621-B0625
91631-40614
91631-40618
91631-B0616
91651-40820
91651-60818
94150-80600
94185-60600
Linked diagrams
6704
