M110A-GMNF (1998)
Toyota Duet
Production
Sep 1998
-
May 2000
Engine
EJDE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9809- )

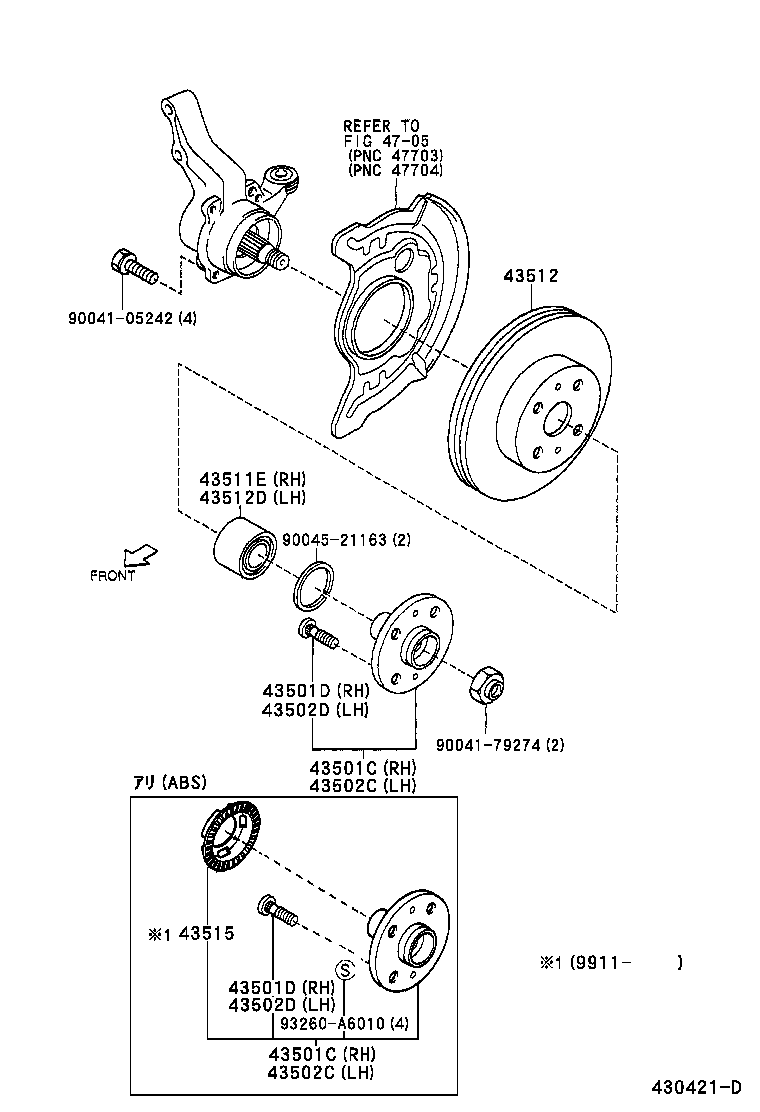

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-97202 |
M10#,11# ｱﾘ(ABS) |
1 | ||
| 43502-97201 |
M100,110..V |
1 | ||
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-97202 |
M10#,11# ｱﾘ(ABS) |
1 | ||
| 43502-97201 |
M100,110..V |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90049-12056 |
M10#,11# |
4 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90049-12056 |
M10#,11# |
4 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-97201 |
M100,110..V |
1 | ||
| 43502-97202 |
M10#,11# ｱﾘ(ABS) |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-97201 |
M100,110..V |
1 | ||
| 43502-97202 |
M10#,11# ｱﾘ(ABS) |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90049-12056 |
M10#,11# |
4 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90049-12056 |
M10#,11# |
4 | ||
| 43511E - BEARING (FOR FRONT AXLE HUB RH) | ||||
| 90043-63253 |
M10#,11# |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-97201 |
M10#,11# |
2 | ||
| 43512-97202 |
M10#,11# ｱﾘ(ｱﾙﾐﾆｳﾑ ﾎｲ-ﾙ) |
2 | ||
| 43512D - BEARING (FOR FRONT AXLE HUB LH) | ||||
| 90043-63253 |
M10#,11# |
1 | ||
| 43515 - ROTOR, SKID CONTROL, FRONT | ||||
| 89547-97201 |
M10#,11# |
2 | ||
| Common parts | ||||
| 90041-05242 | ||||
| 90041-79274 | ||||
| 90045-21163 | ||||
| 93260-A6010 | ||||
| Linked diagrams | ||||
| 4705 | ||||
