M110A-GMNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )EJ#

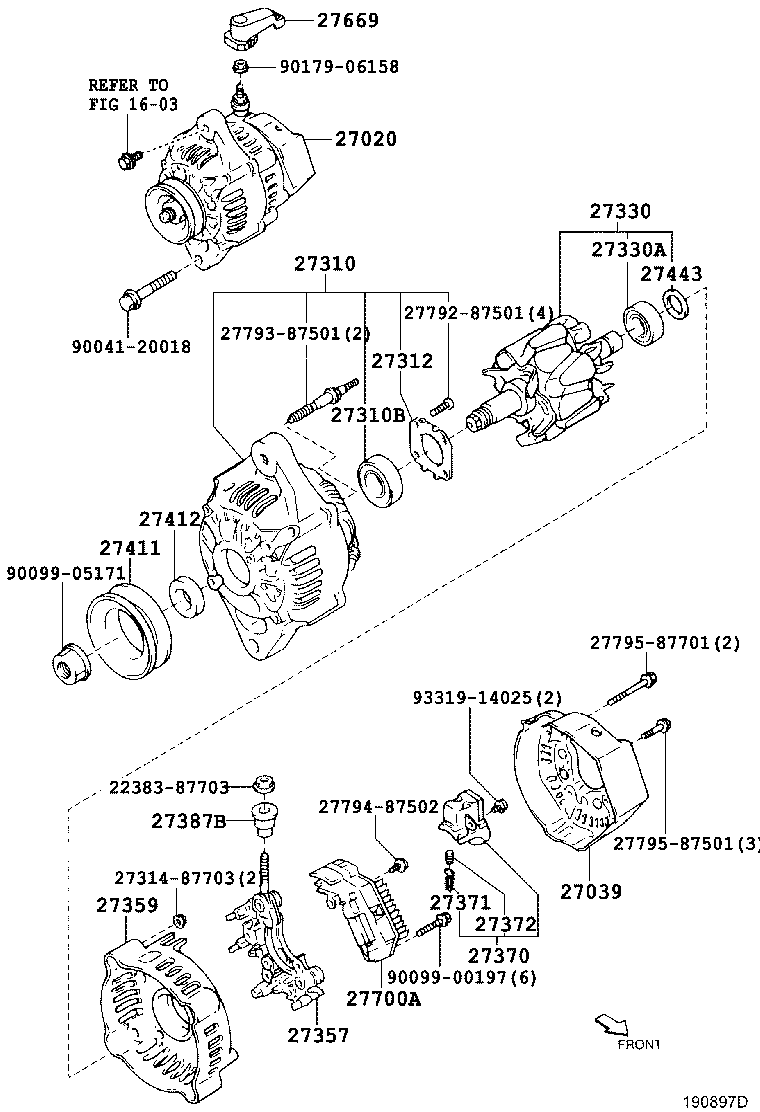

Click highlighted areas on diagram

12V 60A

diagram 1603 2238387703 27020 27039 27310 27310B 27312 2731487703 27330 27330A 27357 27359 27370 27371 27372 27387B 27411 27412 27443 27669 27700A 2779287501 2779387501 2779487502 2779587501 2779587701 9004120018 9009900197 9009905171 9017906158 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-97203

EJDE..M100,110..5F

12V 60A

 1
27039 - COVER, ALTERNATOR REAR END
27039-87703

EJDE..M100,110

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-87218

EJVE..M100,110;EJDE..M100,110..5F

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
27791-87702

EJ#..M100,110

 1
27312 - PLATE, RETAINER
27312-87705

EJ#..M100,110

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-87209

EJ#..M100,110

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
27791-87701

EJ#..M100,110

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-87207

EJ#..M100,110

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-87706

EJDE..M100,110

 1
27359-87401

EJDE..M100,110

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-87708

K3VE,EJ#..M10#,11#

 1
27370-54450

EJDE..M100,110

 1
27371 - BRUSH, ALTERNATOR
27371-87501

K3VE,EJ#..M10#,11#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-87501

K3VE,EJ#..M10#,11#

 2
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-87204

EJ#..M100,110

 1
27411 - PULLEY, ALTERNATOR
27411-87217

EJDE..M100,110..5F

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-87209

EJ#..M100,110

 1
27443 - COVER, ALTERNATOR BEARING
27443-87501

K3VE,EJ#..M10#,11#

 1
27669 - CAP, GENERATOR
27669-87201

K3VE,EJ#..M10#,11#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-97201

EJDE..M100,110

 1
Common parts
22383-87703
27314-87703
27792-87501
27793-87501
27794-87502
27795-87501
27795-87701
90041-20018
90099-00197
90099-05171
90179-06158
93319-14025
Linked diagrams
1603
