M110A-GMNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

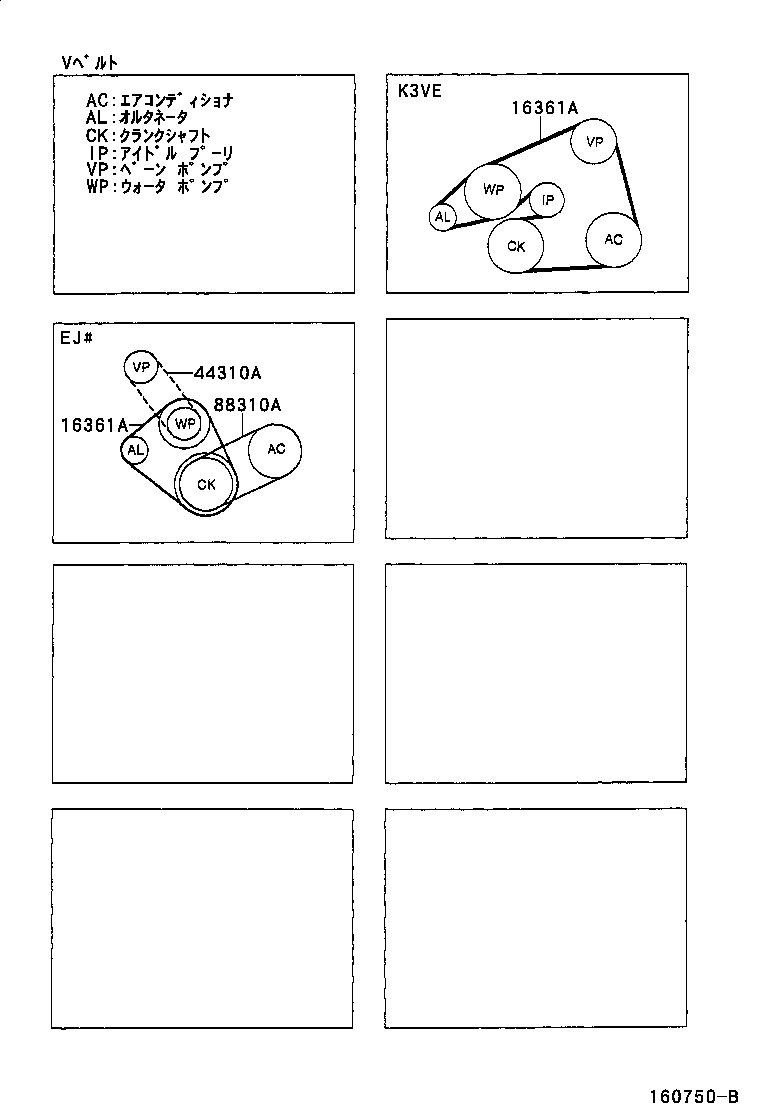

Click highlighted areas on diagram

diagram 16361A 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90048-31020

EJ#..M100,110

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90048-31020

EJ#..M100,110

 1
44310A - BELT, V(FOR VANE PUMP)
44318-97201

M100,110

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99331-50706

M100,110

 1
