M110A-GMGF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

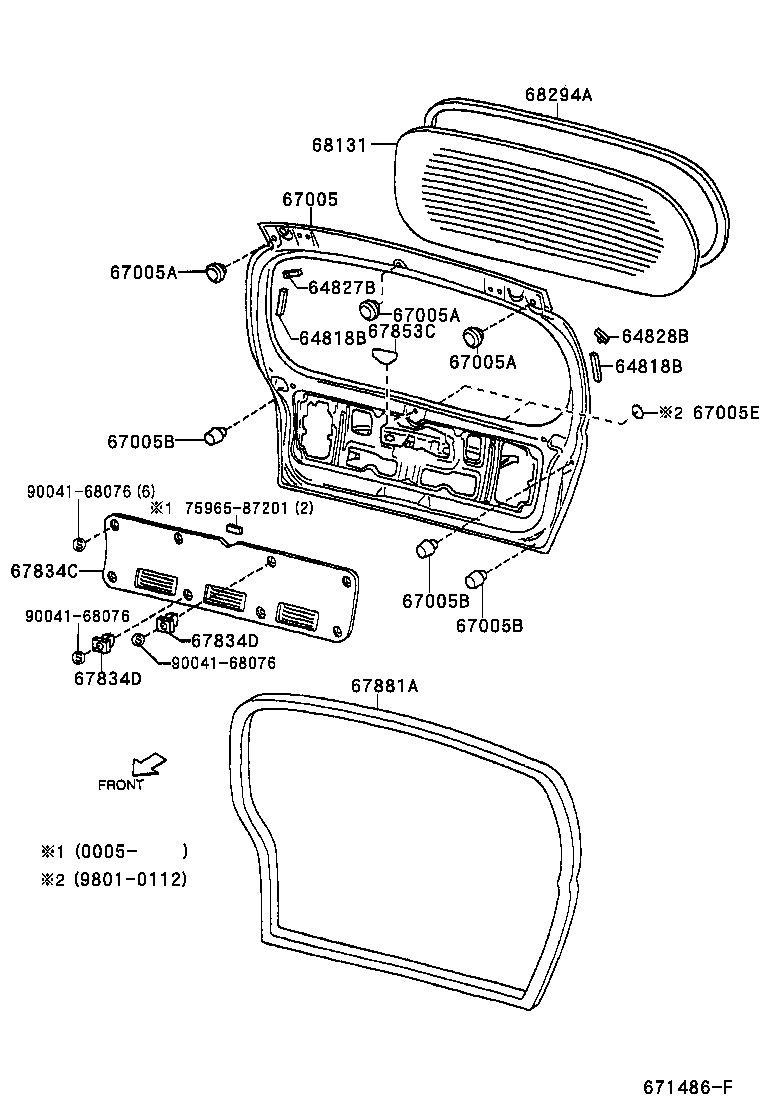

Click highlighted areas on diagram

diagram 64818B 64818B 64827B 64828B 67005 67005A 67005A 67005A 67005B 67005B 67005B 67005E 67834C 67834D 67834D 67853C 67881A 68131 68294A 7596587201 9004168076 9004168076 9004168076
Part # Description Qty Price
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-97201

M10#,11#

 2
64818B - SPACER, BACK DOOR GLASS, NO.1
64818-97201

M10#,11#

 2
64827B - CLIP, BACK WINDOW GLASS, RH
64827-97201

M10#,11#

 1
64828B - CLIP, BACK WINDOW GLASS, LH
64828-97201

M10#,11#

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-97210

M100,110..X

ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ & ﾘﾔﾜｲﾊﾟ & ﾘﾔｽﾎﾟｲﾗ)

 1
67005-97202

M100,110

ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ ﾊﾞﾙﾌﾞｼｷ & ﾘﾔﾜｲﾊﾟ)

 1
67005-97237

M100,110

ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ ﾊﾞﾙﾌﾞｼｷ & ﾘﾔﾜｲﾊﾟ & ﾘﾔｽﾎﾟｲﾗ)

 1
67005-97203

M100,110..X

ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ ﾊﾞﾙﾌﾞｼｷ & ﾘﾔﾜｲﾊﾟ & ﾘﾔｽﾎﾟｲﾗ)

 1
67005A - PLUG, HOLE(FOR BACK DOOR PANEL)
90048-71248

M10#,11#

 3
67005A - PLUG, HOLE(FOR BACK DOOR PANEL)
90048-71248

M10#,11#

 3
67005A - PLUG, HOLE(FOR BACK DOOR PANEL)
90048-71248

M10#,11#

 3
67005B - CUSHION(FOR BACK DOOR PANEL)
90045-41138

M10#,11#

 4
67005B - CUSHION(FOR BACK DOOR PANEL)
90045-41138

M10#,11#

 4
67005B - CUSHION(FOR BACK DOOR PANEL)
90045-41138

M10#,11#

 4
67005E - COVER, HOLE(FOR BACK DOOR PANEL)
90048-74004

M10#,11#

 2
67834C - COVER, BACK DOOR SERVICE HOLE
67834-97201

M10#,11#

 1
67834D - GROMMET, BACK DOOR SERVICE HOLE COVER
90044-80578

M10#,11#

 2
67834D - GROMMET, BACK DOOR SERVICE HOLE COVER
90044-80578

M10#,11#

 2
67853C - COVER, BACK DOOR SERVICE HOLE, NO.3
67853-97201

M100,110..X

 1
67853-97201

M10#,11#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-97201

M10#,11#

 1
68131 - GLASS, BACK DOOR
68131-97203

M10#,11#

*TT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ

 1
68131-97203

M100,110..X

*TT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ

 1
68131-97202

M10#,11#

*UVCTT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
68131-97201

M100,110..LVVT;M100,110..V..WVVT

*TT,厚さ=3.1,ｸﾞﾘｰﾝ

 1
68294A - DAM, BACK DOOR GLASS ADHESIVE
68294-97201

M10#,11#

 1
Common parts
75965-87201
90041-68076
