M110A-GMGF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

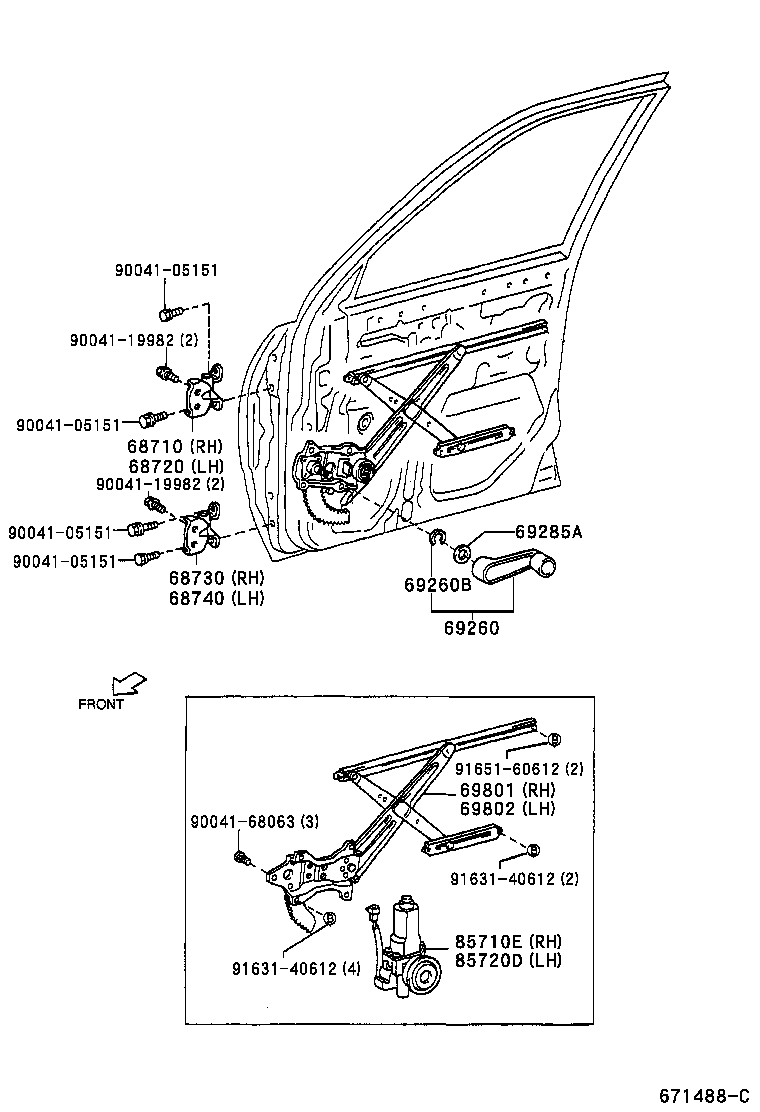

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69285A 69801 69802 85710E 85720D 9004105151 9004105151 9004105151 9004105151 9004119982 9004119982 9004168063 9163140612 9163140612 9165160612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68770-97203

M10#,11#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68780-97203

M10#,11#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68780-97201

M10#,11#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68770-97201

M10#,11#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-97201

M10#,11#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-97201

M10#,11#

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-97201

M100,110..V

 1
85710-97202

M101,111;M100,110..X;M100,110..V..WVVT

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-97202

M100,110..X

 1
85720-97201

M101,111;M100,110..V;M100,110..X..WVVT

 1
Common parts
90041-05151
90041-19982
90041-68063
91631-40612
91651-60612
