M110A-GMGF (1998)
Toyota Duet

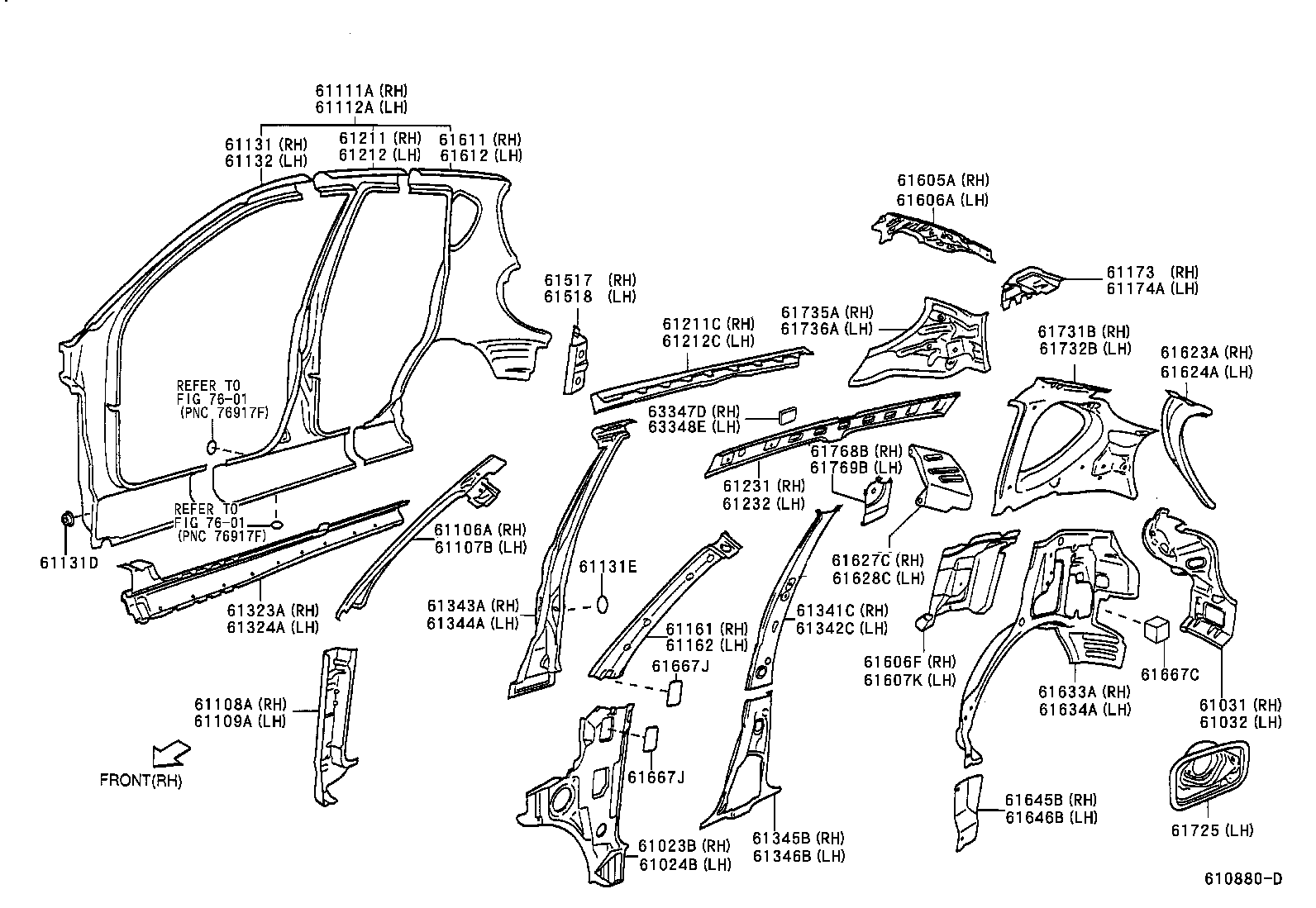

ILLUST NO. 1 OF 2(9809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-97201 |
M10#,11# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-97201 |
M10#,11# |
1 | ||
| 61031 - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH | ||||
| 61031-97201 |
M100,110 |
1 | ||
| 61032 - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH | ||||
| 61032-97201 |
M100,110 |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-97201 |
M10#,11# |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-97201 |
M10#,11# |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-97201 |
M10#,11# |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-97201 |
M10#,11# |
1 | ||
| 61111A - PANEL, FRONT SIDE, OUTER RH | ||||
| 61111-97210 |
M10#,11# |
1 | ||
| 61112A - PANEL, FRONT SIDE, OUTER LH | ||||
| 61112-97201 |
M10#,11# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-97201 |
M10#,11# |
1 | ||
| 61131D - PLUG, HOLE | ||||
| 90048-71116 |
M10#,11# |
2 | ||
| 61131E - PLUG, HOLE | ||||
| 90048-71113 |
M100,110..V ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B) |
2 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-97201 |
M10#,11# |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-97201 |
M10#,11# |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-97201 |
M10#,11# |
1 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 63135-97201 |
M10#,11# |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 63136-97201 |
M10#,11# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61311-97201 |
M10#,11# |
1 | ||
| 61211C - RAIL, ROOF SIDE, RH | ||||
| 61247-97201 |
M10#,11# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61312-97201 |
M10#,11# |
1 | ||
| 61212C - RAIL, ROOF SIDE, LH | ||||
| 61248-97201 |
M10#,11# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-97201 |
M10#,11# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-97201 |
M10#,11# |
1 | ||
| 61323A - REINFORCEMENT, CENTER BODY PILLAR, LOWER RH | ||||
| 61403-97202 |
M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 61403-97201 |
M10#,11# |
1 | ||
| 61403-97202 |
M100,110 ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 61324A - REINFORCEMENT, CENTER BODY PILLAR, LOWER LH | ||||
| 61404-97202 |
M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 61404-97201 |
M10#,11# |
1 | ||
| 61404-97202 |
M100,110 ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 61341C - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-97201 |
M10#,11# |
1 | ||
| 61342C - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-97201 |
M10#,11# |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61037-97202 |
M10#,11# ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 61037-97202 |
M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 61037-97201 |
M10#,11# |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61038-97201 |
M10#,11# |
1 | ||
| 61038-97202 |
M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 61038-97202 |
M10#,11# ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 61345B - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-97201 |
M10#,11# |
1 | ||
| 61346B - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 61346-97201 |
M10#,11# |
1 | ||
| 61517 - BRACKET, QUARTER LOCK PILLAR, LOWER RH | ||||
| 61507-97201 |
M10#,11# |
1 | ||
| 61518 - BRACKET, QUARTER LOCK PILLAR, LOWER LH | ||||
| 61508-97201 |
M10#,11# |
1 | ||
| 61605A - REINFORCEMENT SUB-ASSY, QUARTER PANEL, RH | ||||
| 61647-97201 |
M10#,11# |
1 | ||
| 61606A - REINFORCEMENT SUB-ASSY, QUARTER PANEL, LH | ||||
| 61648-97201 |
M10#,11# |
1 | ||
| 61606F - RETAINER, REAR SEAT BACK LOCK, RH | ||||
| 61606-97201 |
M10#,11# |
1 | ||
| 61607K - RETAINER, REAR SEAT BACK LOCK, LH | ||||
| 61607-97201 |
M10#,11# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-97201 |
M10#,11# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-97201 |
M10#,11# |
1 | ||
| 61623A - EXTENSION, QUARTER PANEL, OUTER RH | ||||
| 61623-97201 |
M10#,11# |
1 | ||
| 61624A - EXTENSION, QUARTER PANEL, OUTER LH | ||||
| 61624-97201 |
M10#,11# |
1 | ||
| 61627C - REINFORCEMENT, QUARTER INNER PANEL, RH | ||||
| 61627-97201 |
M10#,11# |
1 | ||
| 61628C - REINFORCEMENT, QUARTER INNER PANEL, LH | ||||
| 61628-97201 |
M10#,11# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61617-97201 |
M10#,11# |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61618-97201 |
M10#,11# |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-97201 |
M10#,11# |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-97201 |
M10#,11# |
1 | ||
| 61667J - SEAL, FRONT PILLAR | ||||
| 61667-87213 |
M10#,11# |
2 | ||
| 61667J - SEAL, FRONT PILLAR | ||||
| 61667-87213 |
M10#,11# |
2 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-97201 |
M10#,11# |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-97201 |
M10#,11# |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-97201 |
M10#,11# |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61705-97201 |
M10#,11# |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61706-97201 |
M10#,11# |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-97201 |
M10#,11# |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-97201 |
M10#,11# |
1 | ||
| Linked diagrams | ||||
| 7601 | ||||

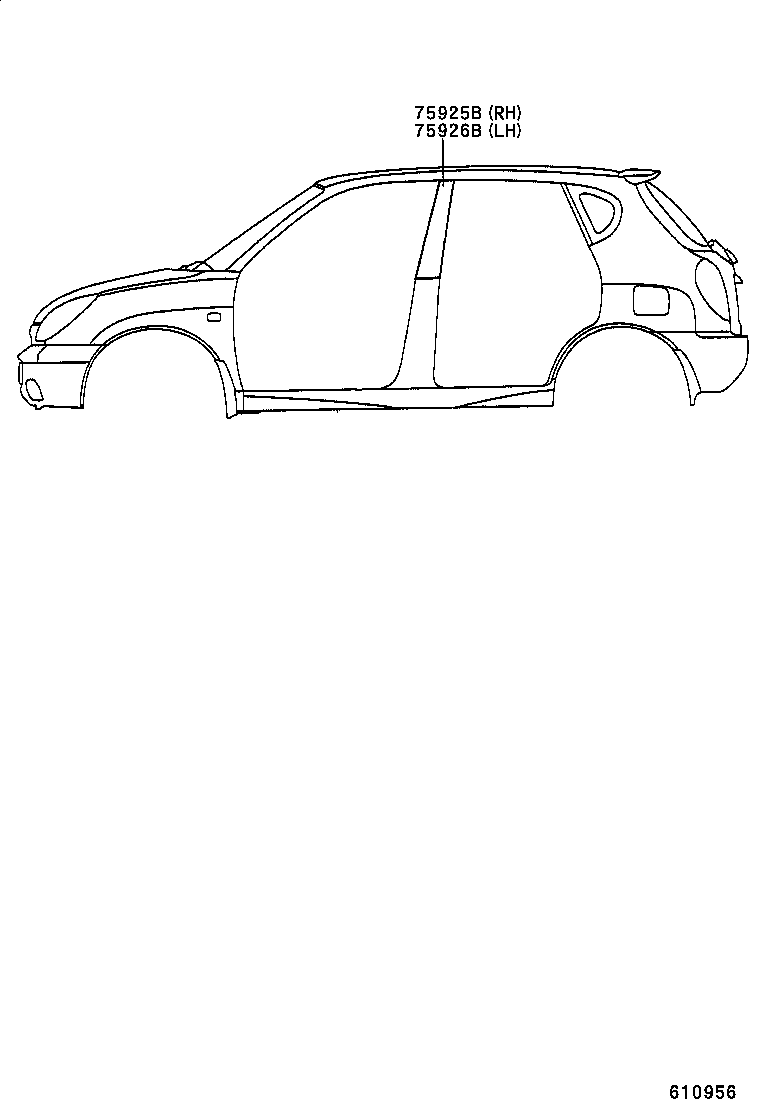

ILLUST NO. 2 OF 2(9904- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75925B - TAPE, BLACK OUT, NO.3 RH | ||||
| 75925-97202 |
M10#,11# |
1 | ||
| 75926B - TAPE, BLACK OUT, NO.3 LH | ||||
| 75926-97202 |
M10#,11# |
1 | ||
