M110A-GMGF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

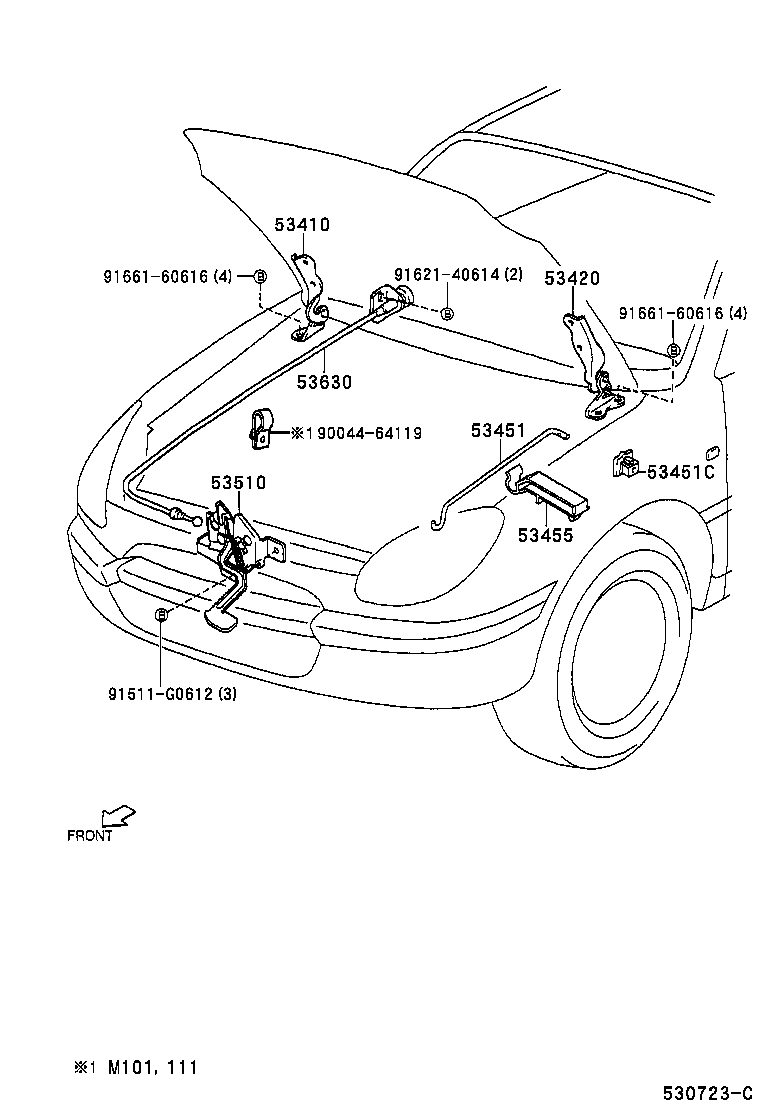

Click highlighted areas on diagram

diagram 53410 53420 53451 53451C 53455 53510 53630 9004464119 91511G0612 9162140614 9166160616 9166160616
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53401-87701

M10#,11#

 1
53420 - HINGE ASSY, HOOD, LH
53402-87701

M10#,11#

 1
53451 - ROD, HOOD SUPPORT
53451-97201

M10#,11#

 1
53451C - CLIP, HOOD SUPPORT ROD
90044-67316

M10#,11#

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-97201

M10#,11#

 1
53510 - LOCK ASSY, HOOD
53510-97201

M10#,11#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-97201

M10#,11#

 1
Common parts
90044-64119
91511-G0612
91621-40614
91661-60616
