M110A-GMGF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

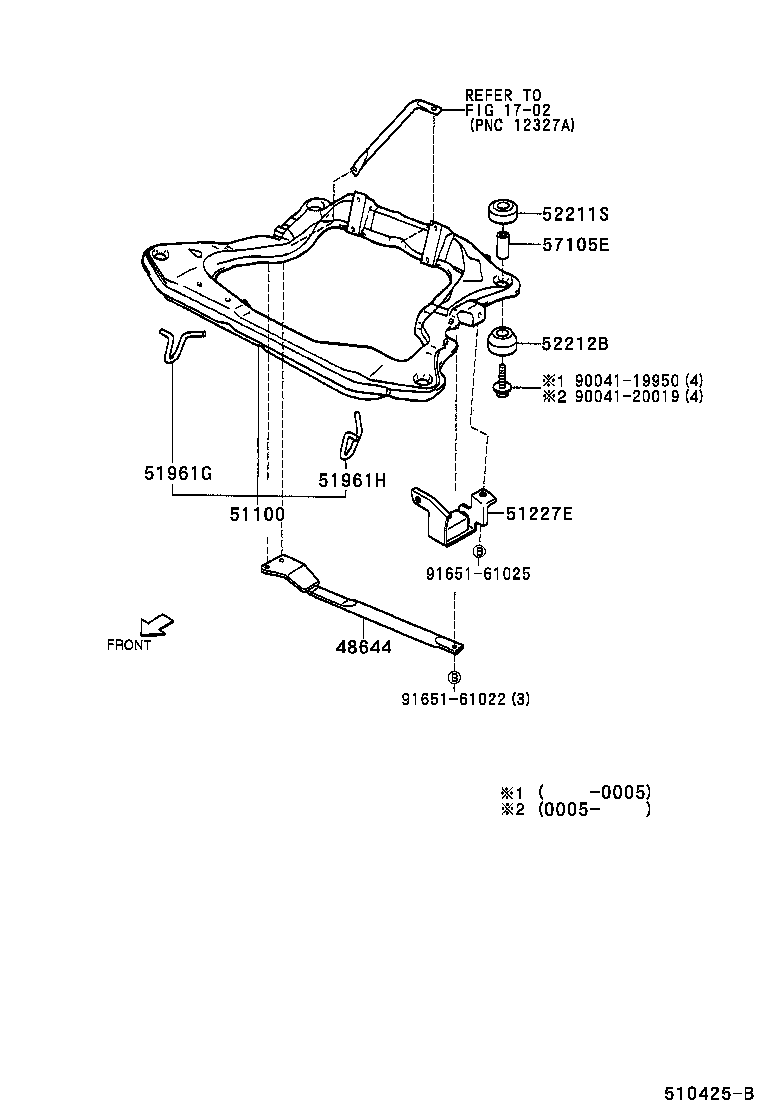

Click highlighted areas on diagram

diagram 1702 48644 51100 51227E 51961G 51961H 52211S 52212B 57105E 9004119950 9004120019 9165161022 9165161025
Part # Description Qty Price
48644 - ROD, LOWER ARM BRACKET CONNECTING
48644-97201

M11#

 1
51100 - FRAME ASSY
51001-97202

M100,110

 1
51227E - DAMPER, FRONT SUSPENSHION MEMBER DYNAMIC
51227-97201

M100,110

 1
51961G - HOOK, FRONT RH
51961-97201

M100,110

 1
51961H - HOOK, FRONT LH
51961-97202

M100,110

 1
52211S - CUSHION, FRONT FRAME, UPPER
52211-97202

M100,110

 4
52212B - CUSHION, FRONT FRAME, LOWER
52212-97202

M100,110

 4
57105E - SPACER SUB-ASSY, SUSPENSHION MEMBER
57105-97201

M100,110

 4
Common parts
90041-19950
90041-20019
91651-61022
91651-61025
Linked diagrams
1702
