M110A-GMGF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )M11#

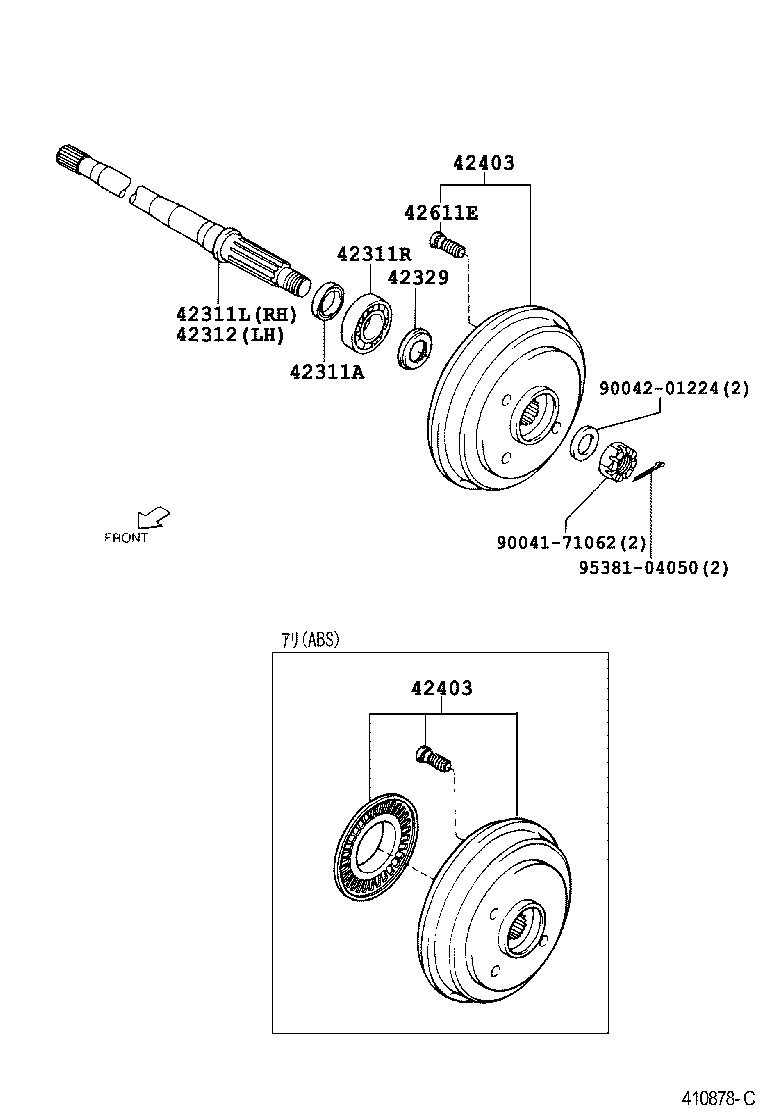

Click highlighted areas on diagram

diagram 42311A 42311L 42311R 42312 42329 42403 42403 42611E 9004171062 9004201224 9538104050
Part # Description Qty Price
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90043-11312

M11#

 2
42311L - SHAFT, REAR AXLE, RH
42301-97202

M11#

 1
42311R - BEARING (FOR REAR AXLE SHAFT INNER)
90043-63249

M11#

 2
42312 - SHAFT, REAR AXLE, LH
42302-97201

M11#

 1
42329 - SPACER, REAR AXLE SHAFT
42329-87505

M11#

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42403-97204

M110..V

ｱﾘ(ABS)

 2
42403-97203

M110..V

 2
42403-97204

M111;M110..X

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42403-97204

M110..V

ｱﾘ(ABS)

 2
42403-97203

M110..V

 2
42403-97204

M111;M110..X

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90049-12057

M11#

 8
Common parts
90041-71062
90042-01224
95381-04050
