M101A-GQSA (2001)
Toyota Duet

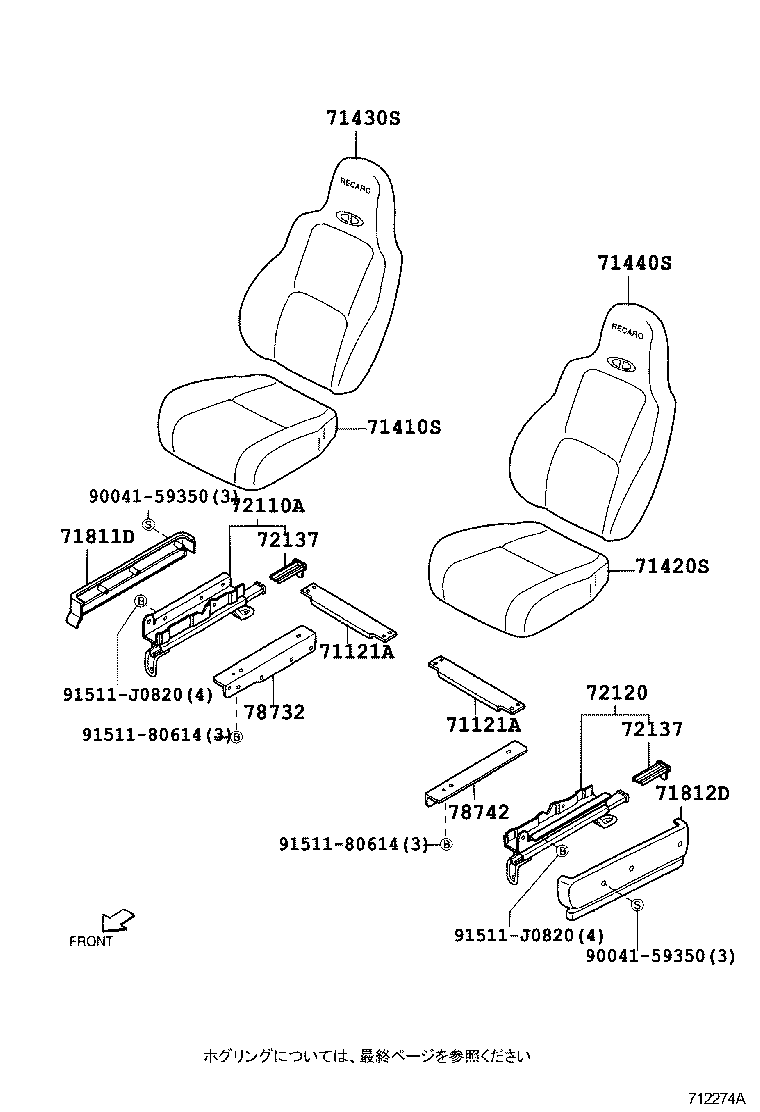

ILLUST NO. 1 OF 2(0112- )VS
ﾚｶﾛ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71121A - BRACKET, FRONT SEAT CUSHION, OUTER | ||||
| 71121-87705 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
2 | ||
| 71121A - BRACKET, FRONT SEAT CUSHION, OUTER | ||||
| 71121-87705 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71510-9744101 |
M101,111..VS ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71510-9744001 |
M101,111..VS BLACK,TRIMS6 |
1 | ||
| 71510-9744307 |
M101,111..V GREEN,TRIMS8 |
1 | ||
| 71510-9744303 |
M101,111..V GRAY,TRIMS6 |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-9727901 |
M101,111..VS ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71420-9727507 |
M10#,11#..V GREEN,TRIMS8 |
1 | ||
| 71420-9727801 |
M101,111..VS BLACK,TRIMS6 |
1 | ||
| 71420-9727503 |
M10#,11#..V GRAY,TRIMS6 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-9749203 |
M101,111..V GRAY,TRIMS6 |
1 | ||
| 71430-97H8501 |
M101,111..4ATS..VS BLACK,TRIMS6 |
1 | ||
| 71430-97H9001 |
M101,111..VS ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71430-97L6803 |
M101..4ATS..V ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71430-97L6807 |
M101..4ATS..V ｱﾘ(*80,ｻｲﾄﾞ),GREEN,TRIMS8 |
1 | ||
| 71430-9749207 |
M101,111..V GREEN,TRIMS8 |
1 | ||
| 71430-97L7701 |
M101,111..4ATS..VS ｱﾘ(*80,ｻｲﾄﾞ),BLACK,TRIMS6 |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-9725201 |
M101,111..VS BLACK,TRIMS6 |
1 | ||
| 71440-9726507 |
M10#,11#..V ｱﾘ(*80,ｻｲﾄﾞ),GREEN,TRIMS8 |
1 | ||
| 71440-9724507 |
M10#,11#..V GREEN,TRIMS8 |
1 | ||
| 71440-9726503 |
M10#,11#..V ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71440-9724503 |
M10#,11#..V GRAY,TRIMS6 |
1 | ||
| 71440-9725401 |
M101,111..VS ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71440-9726901 |
M101..4ATS..VS ｱﾘ(VSC & *80,ｻｲﾄﾞ),BLACK,TRIMS6 |
1 | ||
| 71440-9726901 |
M101,111..VS ｱﾘ(*80,ｻｲﾄﾞ),BLACK,TRIMS6 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-9720701 |
M101,111..VS ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-9720701 |
M101,111..VS ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-97209 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-97208 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-97205 |
M10#,11# |
2 | ||
| 72137-97202 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-97205 |
M10#,11# |
2 | ||
| 72137-97202 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
2 | ||
| 78732 - PLATE, FRONT SEAT CUSHION, NO.1 RH | ||||
| 78732-97201 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
1 | ||
| 78742 - PLATE, FRONT SEAT CUSHION, NO.1 LH | ||||
| 78742-97201 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
1 | ||
| Common parts | ||||
| 90041-59350 | ||||
| 91511-80614 | ||||
| 91511-J0820 | ||||

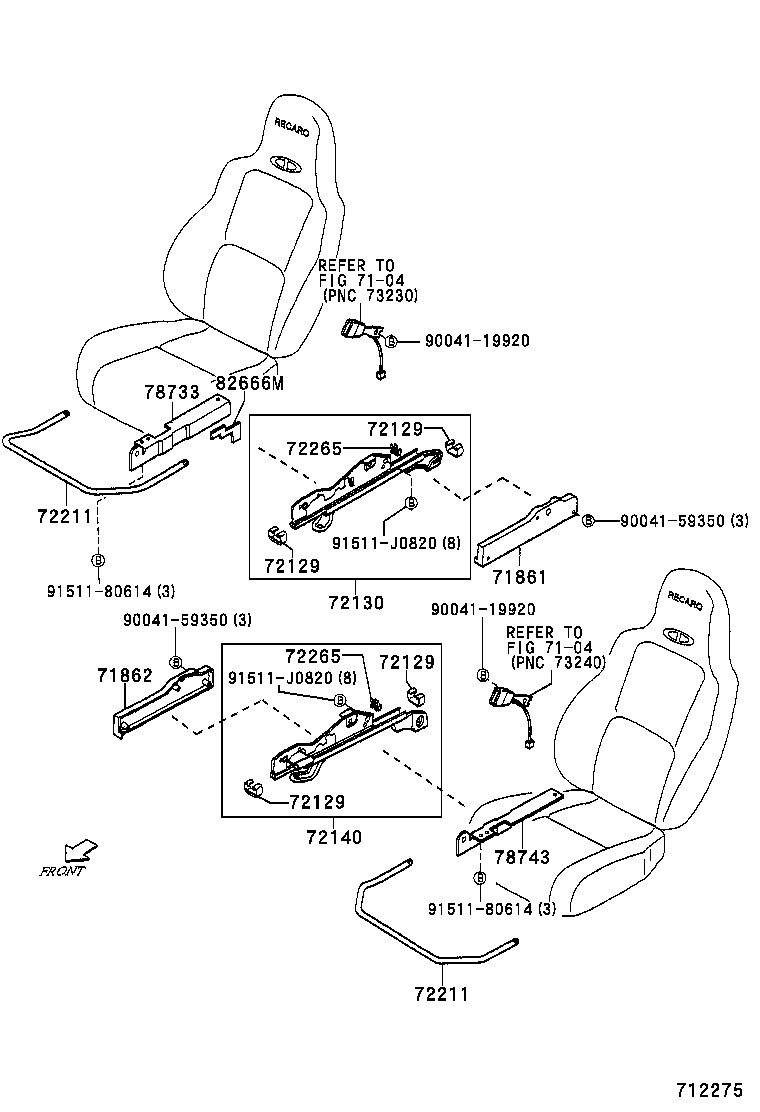

ILLUST NO. 2 OF 2(0112- )VS
ﾚｶﾛ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72137-97201 |
M101..4ATS..VS ﾚｶﾛｼ-ﾄ & ｱﾘ(VSC) |
4 | ||
| 72137-97205 |
M10#,11# ﾘﾔ |
2 | ||
| 72137-97202 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72137-97201 |
M101..4ATS..VS ﾚｶﾛｼ-ﾄ & ｱﾘ(VSC) |
4 | ||
| 72137-97205 |
M10#,11# ﾘﾔ |
2 | ||
| 72137-97202 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72137-97201 |
M101..4ATS..VS ﾚｶﾛｼ-ﾄ & ｱﾘ(VSC) |
4 | ||
| 72137-97205 |
M10#,11# ﾘﾔ |
2 | ||
| 72137-97202 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72137-97201 |
M101..4ATS..VS ﾚｶﾛｼ-ﾄ & ｱﾘ(VSC) |
4 | ||
| 72137-97205 |
M10#,11# ﾘﾔ |
2 | ||
| 72137-97202 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
2 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-97208 |
M101..4ATS..V ｱﾘ(*80,ｻｲﾄﾞ & ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 72130-97205 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-97205 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-97201 |
M101,111..VS ﾚｶﾛｼ-ﾄ,右側 |
1 | ||
| 72212-97201 |
M101,111..VS ﾚｶﾛｼ-ﾄ,左側 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-97201 |
M101,111..VS ﾚｶﾛｼ-ﾄ,右側 |
1 | ||
| 72212-97201 |
M101,111..VS ﾚｶﾛｼ-ﾄ,左側 |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-87701 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-87701 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
2 | ||
| 78733 - PLATE, FRONT SEAT CUSHION, NO.2 RH | ||||
| 78733-97201 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
1 | ||
| 78743 - PLATE, FRONT SEAT CUSHION, NO.2 LH | ||||
| 78743-97201 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-87701 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
2 | ||
| Common parts | ||||
| 90041-19920 | ||||
| 90041-59350 | ||||
| 91511-80614 | ||||
| 91511-J0820 | ||||
| Linked diagrams | ||||
| 7104 | ||||

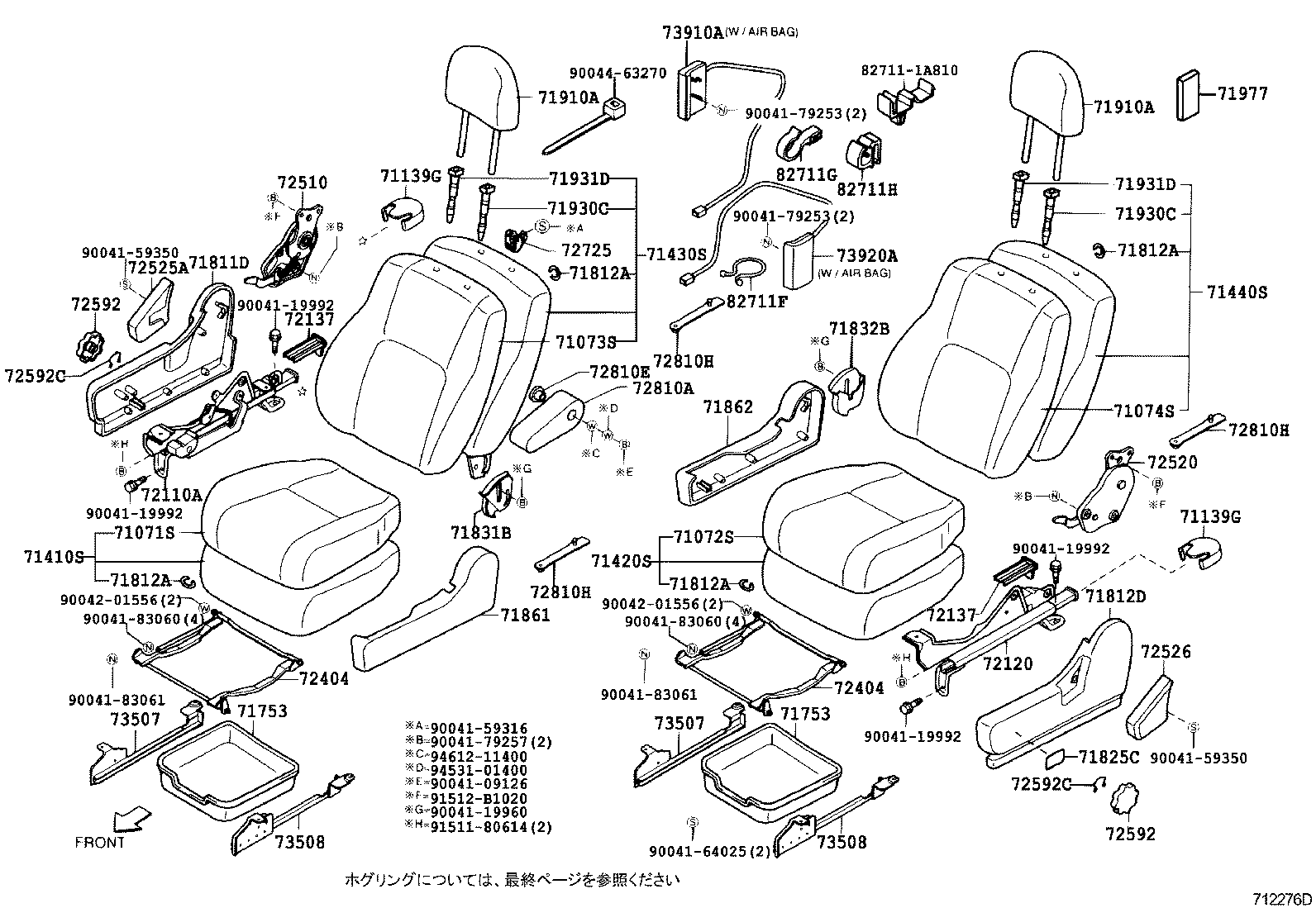

ILLUST NO. 1 OF 2(0112- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71063-9741803 |
M101..4ATS..V ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71063-9741807 |
M101,111..V GREEN,TRIMS8 |
1 | ||
| 71063-9741807 |
M101..4ATS..V ｱﾘ(*80,ｻｲﾄﾞ),GREEN,TRIMS8 |
1 | ||
| 71063-9741803 |
M101,111..V GRAY,TRIMS6 |
1 | ||
| 71063-9742001 |
M101,111..VS BLACK,TRIMS6 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71064-9741503 |
M10#,11#..V GRAY,TRIMS6 |
1 | ||
| 71064-9741507 |
M10#,11#..V GREEN,TRIMS8 |
1 | ||
| 71064-9741701 |
M101,111..VS BLACK,TRIMS6 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71061-9742403 |
M10#,11#..V ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71061-9742407 |
M10#,11#..V ｱﾘ(*80,ｻｲﾄﾞ),GREEN,TRIMS8 |
1 | ||
| 71061-9742303 |
M10#,11#..V GRAY,TRIMS6 |
1 | ||
| 71061-9743301 |
M101,111..4ATS..VS BLACK,TRIMS6 |
1 | ||
| 71061-9742307 |
M10#,11#..V GREEN,TRIMS8 |
1 | ||
| 71061-9743501 |
M101,111..4ATS..VS ｱﾘ(*80,ｻｲﾄﾞ),BLACK,TRIMS6 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71062-9741803 |
M10#,11#..V ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71062-9741703 |
M10#,11#..V GRAY,TRIMS6 |
1 | ||
| 71062-9741707 |
M10#,11#..V GREEN,TRIMS8 |
1 | ||
| 71062-9741807 |
M10#,11#..V ｱﾘ(*80,ｻｲﾄﾞ),GREEN,TRIMS8 |
1 | ||
| 71062-9742401 |
M101,111..VS BLACK,TRIMS6 |
1 | ||
| 71062-9742501 |
M101,111..VS ｱﾘ(*80,ｻｲﾄﾞ),BLACK,TRIMS6 |
1 | ||
| 71139G - COVER, FRONT SEAT LEG | ||||
| 71139-97201 |
M10#,11# ﾚｶﾛｼ-ﾄ |
2 | ||
| 71139G - COVER, FRONT SEAT LEG | ||||
| 71139-97201 |
M10#,11# ﾚｶﾛｼ-ﾄ |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71510-9744101 |
M101,111..VS ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71510-9744001 |
M101,111..VS BLACK,TRIMS6 |
1 | ||
| 71510-9744307 |
M101,111..V GREEN,TRIMS8 |
1 | ||
| 71510-9744303 |
M101,111..V GRAY,TRIMS6 |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-9727901 |
M101,111..VS ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71420-9727507 |
M10#,11#..V GREEN,TRIMS8 |
1 | ||
| 71420-9727801 |
M101,111..VS BLACK,TRIMS6 |
1 | ||
| 71420-9727503 |
M10#,11#..V GRAY,TRIMS6 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-9749203 |
M101,111..V GRAY,TRIMS6 |
1 | ||
| 71430-97H8501 |
M101,111..4ATS..VS BLACK,TRIMS6 |
1 | ||
| 71430-97H9001 |
M101,111..VS ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71430-97L6803 |
M101..4ATS..V ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71430-97L6807 |
M101..4ATS..V ｱﾘ(*80,ｻｲﾄﾞ),GREEN,TRIMS8 |
1 | ||
| 71430-9749207 |
M101,111..V GREEN,TRIMS8 |
1 | ||
| 71430-97L7701 |
M101,111..4ATS..VS ｱﾘ(*80,ｻｲﾄﾞ),BLACK,TRIMS6 |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-9725201 |
M101,111..VS BLACK,TRIMS6 |
1 | ||
| 71440-9726507 |
M10#,11#..V ｱﾘ(*80,ｻｲﾄﾞ),GREEN,TRIMS8 |
1 | ||
| 71440-9724507 |
M10#,11#..V GREEN,TRIMS8 |
1 | ||
| 71440-9726503 |
M10#,11#..V ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71440-9724503 |
M10#,11#..V GRAY,TRIMS6 |
1 | ||
| 71440-9725401 |
M101,111..VS ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71440-9726901 |
M101..4ATS..VS ｱﾘ(VSC & *80,ｻｲﾄﾞ),BLACK,TRIMS6 |
1 | ||
| 71440-9726901 |
M101,111..VS ｱﾘ(*80,ｻｲﾄﾞ),BLACK,TRIMS6 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-9720701 |
M101,111..VS ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
M10#,11# |
33 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
M10#,11# |
33 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
M10#,11# |
33 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
M10#,11# |
33 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-9720701 |
M101,111..VS ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71825C - PLATE | ||||
| 71825-97201 |
M10#,11# |
2 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-9720103 |
M10#,11# GRAY,TRIMS6,S8 |
1 | ||
| 71832B - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-9720103 |
M10#,11# GRAY,TRIMS6,S8 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9741407 |
M100..5F..X;M101..5F..V;M100,11#..V,VS;M101..4ATS..(V,VS) GREEN,TRIMS8 |
2 | ||
| 71910-9741601 |
M101,111..VS BLACK,TRIMS6 |
2 | ||
| 71910-9741403 |
M10#,11#..V GRAY,TRIMS6 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9741407 |
M100..5F..X;M101..5F..V;M100,11#..V,VS;M101..4ATS..(V,VS) GREEN,TRIMS8 |
2 | ||
| 71910-9741601 |
M101,111..VS BLACK,TRIMS6 |
2 | ||
| 71910-9741403 |
M10#,11#..V GRAY,TRIMS6 |
2 | ||
| 71977 - CUSHION | ||||
| 71977-97201 |
M10#,11# ｱﾘ(*80,ｻｲﾄﾞ) |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-97209 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-97208 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-97205 |
M10#,11# |
2 | ||
| 72137-97202 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-97205 |
M10#,11# |
2 | ||
| 72137-97202 |
M101,111..VS ﾚｶﾛｼ-ﾄ |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-97201 |
M10#,11# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-97201 |
M10#,11# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-9720103 |
M10#,11# DARK GRAY,TRIMS6 |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-9720103 |
M10#,11# DARK GRAY,TRIMS6 |
1 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-8770103 |
M101,111;M100,110..X DARK GRAY,TRIMS6 |
1 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-8770103 |
M101,111;M100,110..X DARK GRAY,TRIMS6 |
1 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90045-20167 |
M101,111;M100,110..X |
1 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90045-20167 |
M101,111;M100,110..X |
1 | ||
| 72725 - HOOK, FRONT SEAT BACK | ||||
| 72725-8720113 |
M10#,11# DARK GRAY,TRIMS6 |
1 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72810-9740301 |
M101,111..4ATS..VS BLACK,TRIMS6 |
1 | ||
| 72810E - BUSH, FRONT SEAT ARMREST, NO.1 | ||||
| 90043-85112 |
M10#,11#..ATM..(VS,X) |
1 | ||
| 73507 - RAIL SUB-ASSY, FRONT SEAT | ||||
| 73507-97403 |
M10#,11#..VS,X |
1 | ||
| 73507 - RAIL SUB-ASSY, FRONT SEAT | ||||
| 73507-97403 |
M10#,11#..VS,X |
1 | ||
| 73508 - RAIL SUB-ASSY, FRONT SEAT | ||||
| 73508-97202 |
M10#,11#..VS,X |
1 | ||
| 73508-97201 |
M101,111;M100,110..X |
1 | ||
| 73508 - RAIL SUB-ASSY, FRONT SEAT | ||||
| 73508-97202 |
M10#,11#..VS,X |
1 | ||
| 73508-97201 |
M101,111;M100,110..X |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-97201 |
M10#,11# ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-97201 |
M10#,11# ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 90044-63270 |
M101,111;M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
3 | ||
| Common parts | ||||
| 82711-1A810 | ||||
| 90041-09126 | ||||
| 90041-19960 | ||||
| 90041-19992 | ||||
| 90041-59316 | ||||
| 90041-59350 | ||||
| 90041-64025 | ||||
| 90041-79253 | ||||
| 90041-79257 | ||||
| 90041-83060 | ||||
| 90041-83061 | ||||
| 90042-01556 | ||||
| 90044-63270 | ||||
| 91511-80614 | ||||
| 91512-B1020 | ||||
| 94531-01400 | ||||
| 94612-11400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
