M101A-GQGE (2001)

Toyota Duet

Production Dec 2001 - May 2004
Engine K3VE
Transmission 4ATS ATM
Displacement 2500cc
Power 168 HP (125 kW)

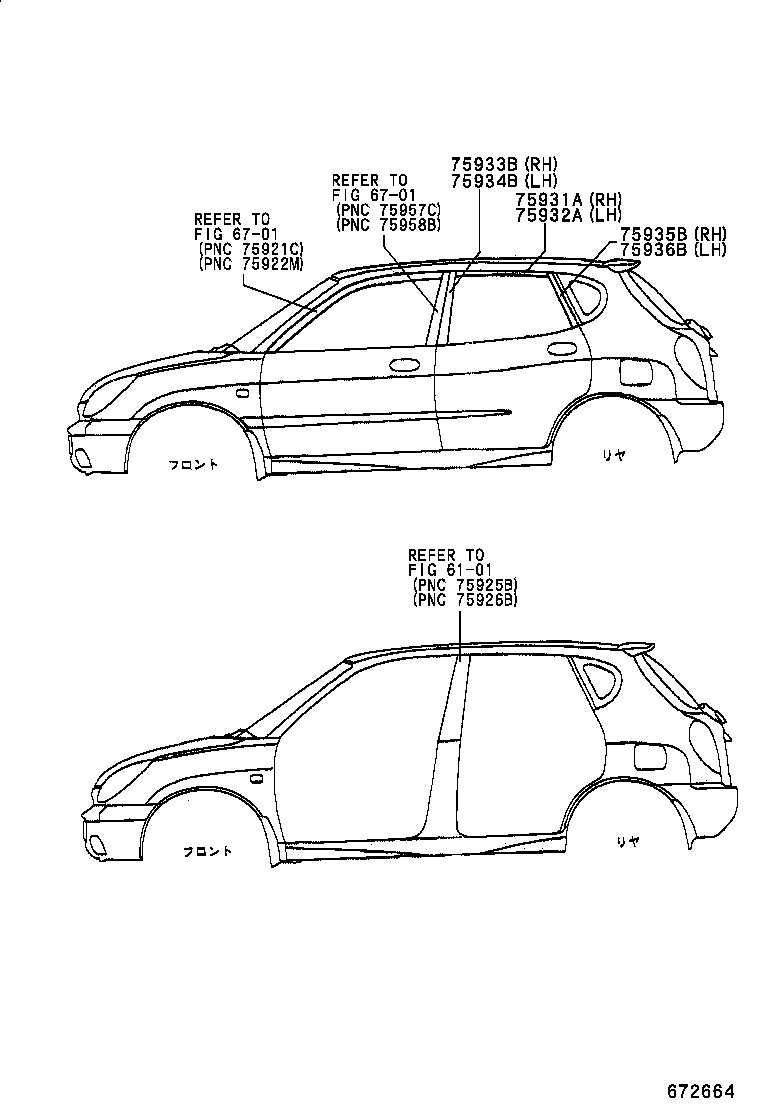

ILLUST NO. 3 OF 3(0112- )

Click highlighted areas on diagram

diagram 6101 6701 6701 75931A 75932A 75933B 75934B 75935B 75936B
Part # Description Qty Price
75931A - TAPE, BLACK OUT, OUTER UPPER RH
75933-97401

M10#,11#

 1
75932A - TAPE, BLACK OUT, OUTER UPPER LH
75934-97401

M10#,11#

 1
75933B - TAPE, BLACK OUT, OUTER FRONT RH
75931-97401

M10#,11#

 1
75934B - TAPE, BLACK OUT, OUTER FRONT LH
75932-97401

M10#,11#

 1
75935B - TAPE, BLACK OUT, OUTER REAR RH
75935-97401

M10#,11#

 1
75936B - TAPE, BLACK OUT, OUTER REAR LH
75936-97401

M10#,11#

 1
Linked diagrams
6101
6701
