M101A-GPSA (2000)

Toyota Duet

Production May 2000 - Dec 2001
Engine K3VE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809-0211)

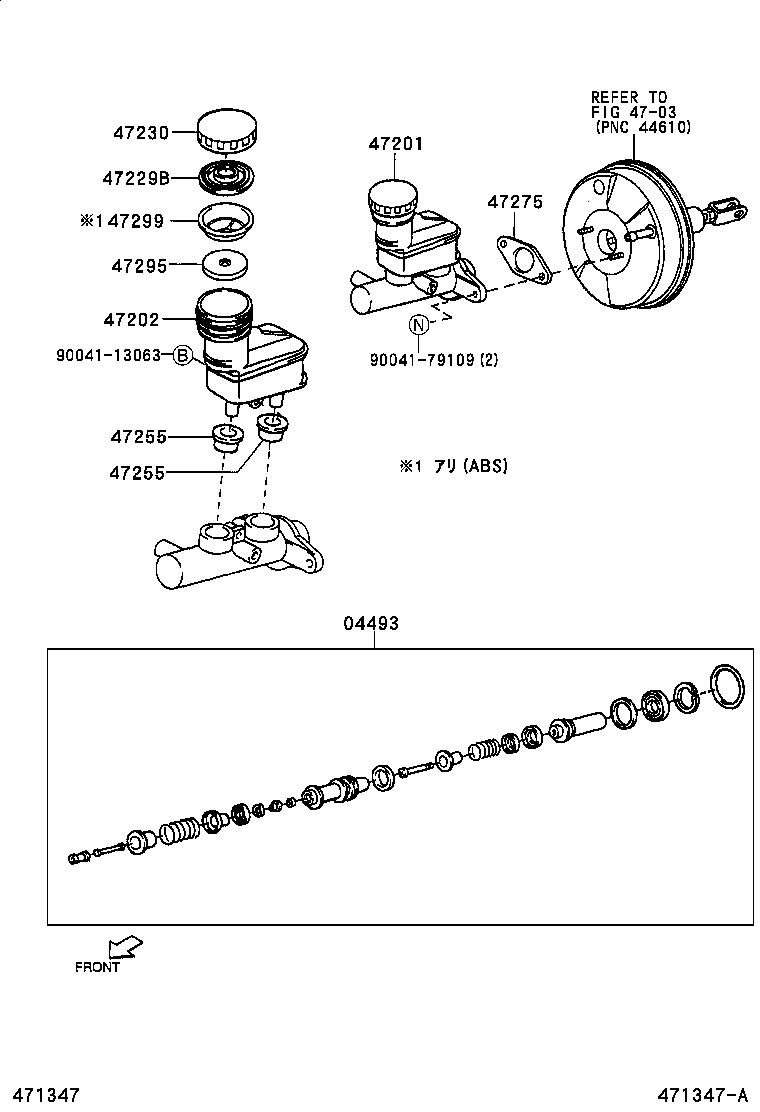

Click highlighted areas on diagram

diagram 04493 4703 47201 47202 47229B 47230 47255 47255 47275 47295 47299 9004113063 9004179109
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04471-97207

M101,111;M100,110..X

 1
04471-97202

M101,111;M100,110..X

 1
04471-97203

M101..ATM

ｱﾘ(VSC)

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-97401

M101..V

ｱﾘ(VSC)

 1
47201-97204

M101,111;M100,110..X

 1
47201-97210

M101,111;M100,110..X

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47203-97204

M10#,11#

 1
47229B - DIAPHRAGM, BRAKE MASTER CYLINDER RESERVOIR
47229-87203

M10#,11#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47225-97203

M101,111;M100,110..X

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-87208

M10#,11#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-87208

M10#,11#

 2
47275 - GASKET, BRAKE MASTER CYLINDER
47275-87702

M10#,11#

 1
47295 - FLOAT, SWITCH OPERATING
47295-87502

M10#,11#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-97201

M10#,11#

 1
Common parts
90041-13063
90041-79109
Linked diagrams
4703
