M101A-GMSA (2000)
Toyota Duet

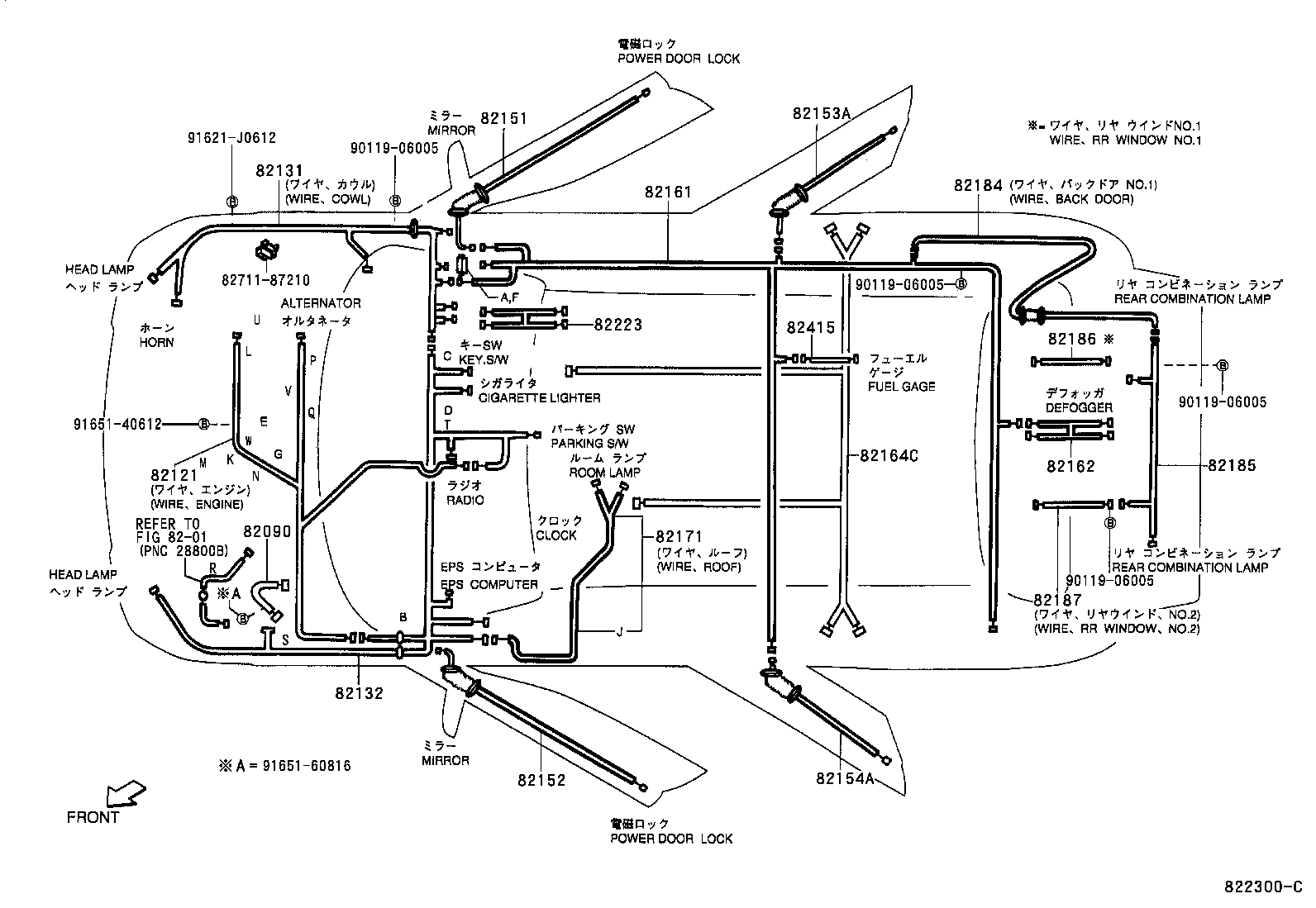

ILLUST NO. 1 OF 3(0005-0112)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82090 - WIRE ASSY, EXTENSION | ||||
| 82090-97402 |
M101,111 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-97431 |
M101,111..5F..VS |
1 | ||
| 82121-97402 |
M101,111..V |
1 | ||
| 82121-97411 |
M101,111..5F..(V,X) |
1 | ||
| 82121-97420 |
M101,111..VS |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-97427 |
M101,111 |
1 | ||
| 82135-97M02 |
M10#,11# |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-97413 |
M101..V ｱﾘ(VSC) |
1 | ||
| 82132-97M51 |
M101,111..V |
1 | ||
| 82132-97426 |
M101,111..V |
1 | ||
| 82132-97427 |
M101,111..VS |
1 | ||
| 82132-97495 |
M101..V ｱﾘ(VSC & ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 82132-97494 |
M101,111..V ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 82133-97F13 |
M101,111..5F |
1 | ||
| 82132-97429 |
M101,111..VS ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 82133-97F61 |
M101,111..5F..VS ｱﾘ(ｵ-ﾄ ｴｱｺﾝ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82133-97F11 |
M101,111..5F ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82133-97F12 |
M101,111..5F..VS ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-97420 |
M101,111;M100,110..X |
1 | ||
| 82151-97443 |
M101,111;M100,110..X |
1 | ||
| 82151-97463 |
M101,111;M100,110..X |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-97440 |
M101,111;M100,110..X |
1 | ||
| 82152-97424 |
M101,111;M100,110..X |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-97405 |
M10#,11# |
1 | ||
| 82153-97407 |
M10#,11# |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82154-97407 |
M10#,11# |
1 | ||
| 82154-97405 |
M10#,11# |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-97441 |
M101..V ｱﾘ(VSC) |
1 | ||
| 82161-97435 |
M101;M100..X |
1 | ||
| 82161-97428 |
M101..V ｱﾘ(VSC & ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 82161-97415 |
M101;M100..X ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 82161-97491 |
M10# |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-97408 |
M101,111;M100,110..X |
1 | ||
| 82162-97408 |
M10#,11# |
1 | ||
| 82164C - WIRE, FLOOR, NO.4 | ||||
| 82164-97407 |
M10#,11# |
1 | ||
| 82164-97402 |
M10#,11# ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 82164-97408 |
M10#,11# ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 82164-97401 |
M10#,11# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-97401 |
M10#,11# |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-97416 |
M100..X;M101,11# |
1 | ||
| 82184-97417 |
M100..X;M101,11# ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ & ﾘﾔｽﾎﾟｲﾗ) |
1 | ||
| 82184-97417 |
M101,111 ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ & ﾘﾔｽﾎﾟｲﾗ) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-97407 |
M100..X;M101,11# ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ & ﾘﾔｽﾎﾟｲﾗ) |
1 | ||
| 82185-97408 |
M100..X;M101,11# |
1 | ||
| 82185-97407 |
M101,111 ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ & ﾘﾔｽﾎﾟｲﾗ) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-97201 |
M10#,11# |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-97201 |
M10#,11# |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-97424 |
M10#,11# |
1 | ||
| 82223-97401 |
M10#,11# |
1 | ||
| 82223-97450 |
M10#,11# |
1 | ||
| 82415 - WIRE, FUEL PUMP | ||||
| 82415-97202 |
M10#,11# |
1 | ||
| Common parts | ||||
| 82711-87210 | ||||
| 90119-06005 | ||||
| 91621-J0612 | ||||
| 91651-40612 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 8201 | ||||

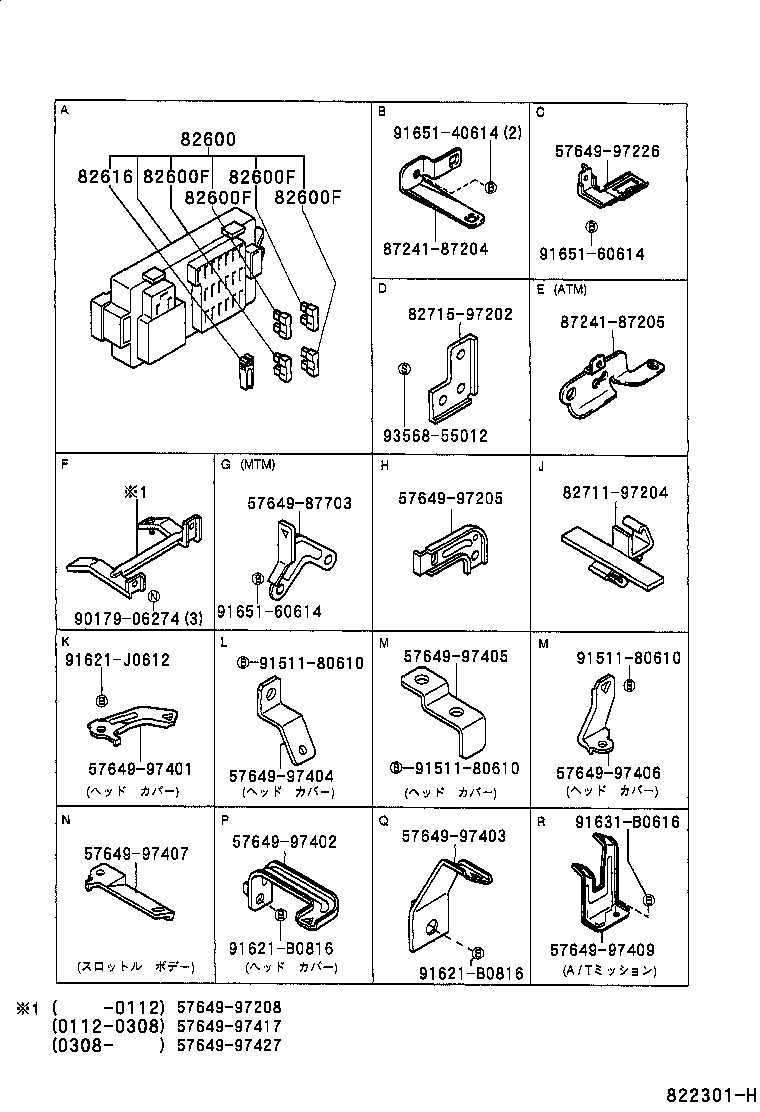

ILLUST NO. 2 OF 3(0005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-97405 |
M10#,11# |
1 | ||
| 82600-97401 |
M10#,11# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90049-40028 |
M10#,11# 30A,ｸﾞﾘｰﾝ |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90049-40028 |
M10#,11# 30A,ｸﾞﾘｰﾝ |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90049-40028 |
M10#,11# 30A,ｸﾞﾘｰﾝ |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90049-40028 |
M10#,11# 30A,ｸﾞﾘｰﾝ |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-87701 |
M10#,11# |
1 | ||
| Common parts | ||||
| 57649-87703 | ||||
| 57649-97205 | ||||
| 57649-97208 | ||||
| 57649-97226 | ||||
| 57649-97401 | ||||
| 57649-97402 | ||||
| 57649-97403 | ||||
| 57649-97404 | ||||
| 57649-97405 | ||||
| 57649-97406 | ||||
| 57649-97407 | ||||
| 57649-97409 | ||||
| 57649-97417 | ||||
| 57649-97427 | ||||
| 82711-97204 | ||||
| 82715-97202 | ||||
| 87241-87204 | ||||
| 87241-87205 | ||||
| 90179-06274 | ||||
| 91511-80610 | ||||
| 91621-B0816 | ||||
| 91621-J0612 | ||||
| 91631-B0616 | ||||
| 91651-40614 | ||||
| 91651-60614 | ||||
| 93568-55012 | ||||

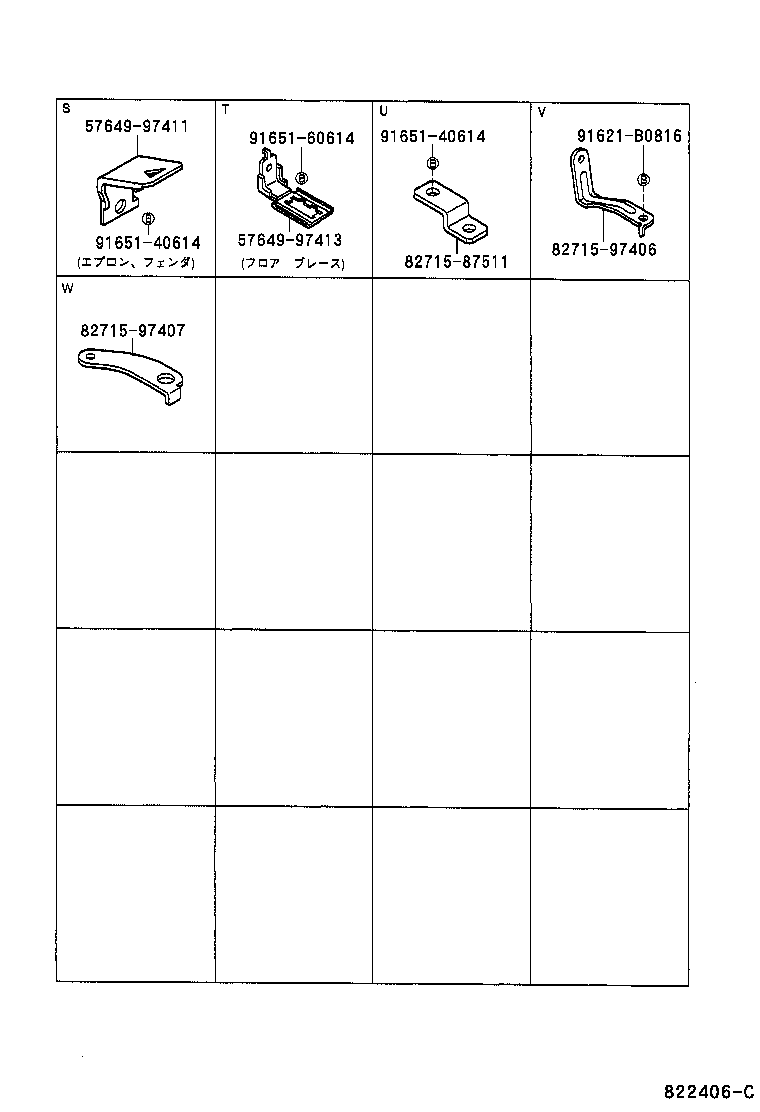

ILLUST NO. 3 OF 3(0005-0112)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 57649-97411 | ||||
| 57649-97413 | ||||
| 82715-87511 | ||||
| 82715-97406 | ||||
| 82715-97407 | ||||
| 91621-B0816 | ||||
| 91651-40614 | ||||
| 91651-60614 | ||||

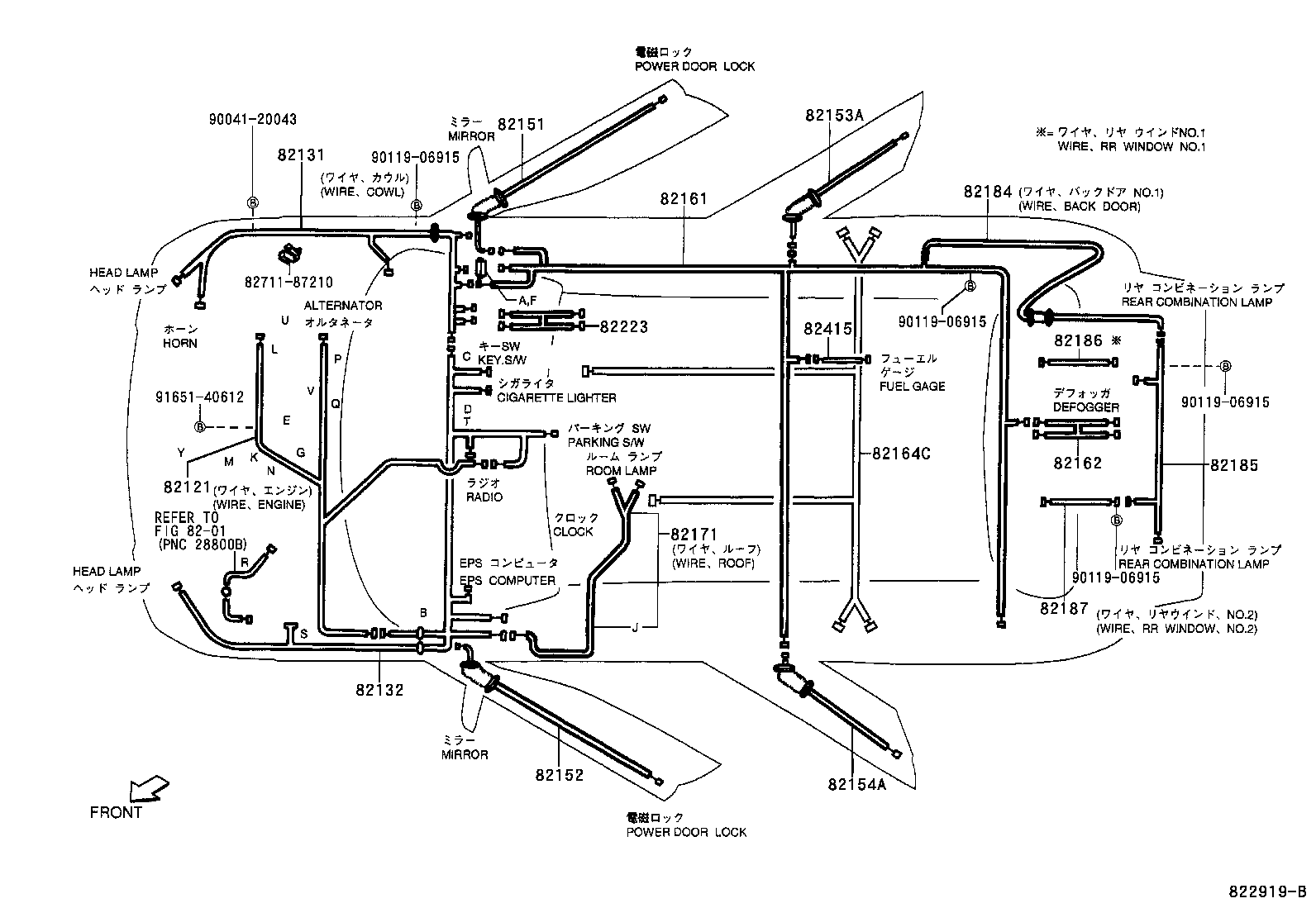

ILLUST NO. 1 OF 3(0112- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-97431 |
M101,111..5F..VS |
1 | ||
| 82121-97402 |
M101,111..V |
1 | ||
| 82121-97411 |
M101,111..5F..(V,X) |
1 | ||
| 82121-97420 |
M101,111..VS |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-97427 |
M101,111 |
1 | ||
| 82135-97M02 |
M10#,11# |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-97413 |
M101..V ｱﾘ(VSC) |
1 | ||
| 82132-97M51 |
M101,111..V |
1 | ||
| 82132-97426 |
M101,111..V |
1 | ||
| 82132-97427 |
M101,111..VS |
1 | ||
| 82132-97495 |
M101..V ｱﾘ(VSC & ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 82132-97494 |
M101,111..V ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 82133-97F13 |
M101,111..5F |
1 | ||
| 82132-97429 |
M101,111..VS ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 82133-97F61 |
M101,111..5F..VS ｱﾘ(ｵ-ﾄ ｴｱｺﾝ & ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82133-97F11 |
M101,111..5F ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82133-97F12 |
M101,111..5F..VS ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-97420 |
M101,111;M100,110..X |
1 | ||
| 82151-97443 |
M101,111;M100,110..X |
1 | ||
| 82151-97463 |
M101,111;M100,110..X |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-97440 |
M101,111;M100,110..X |
1 | ||
| 82152-97424 |
M101,111;M100,110..X |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-97405 |
M10#,11# |
1 | ||
| 82153-97407 |
M10#,11# |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82154-97407 |
M10#,11# |
1 | ||
| 82154-97405 |
M10#,11# |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-97441 |
M101..V ｱﾘ(VSC) |
1 | ||
| 82161-97435 |
M101;M100..X |
1 | ||
| 82161-97428 |
M101..V ｱﾘ(VSC & ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 82161-97415 |
M101;M100..X ｱﾘ(ｷ- ﾌﾘ- ｼｽﾃﾑ) |
1 | ||
| 82161-97491 |
M10# |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-97408 |
M101,111;M100,110..X |
1 | ||
| 82162-97408 |
M10#,11# |
1 | ||
| 82164C - WIRE, FLOOR, NO.4 | ||||
| 82164-97407 |
M10#,11# |
1 | ||
| 82164-97402 |
M10#,11# ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 82164-97408 |
M10#,11# ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 82164-97401 |
M10#,11# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-97401 |
M10#,11# |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-97416 |
M100..X;M101,11# |
1 | ||
| 82184-97417 |
M100..X;M101,11# ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ & ﾘﾔｽﾎﾟｲﾗ) |
1 | ||
| 82184-97417 |
M101,111 ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ & ﾘﾔｽﾎﾟｲﾗ) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-97407 |
M100..X;M101,11# ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ & ﾘﾔｽﾎﾟｲﾗ) |
1 | ||
| 82185-97408 |
M100..X;M101,11# |
1 | ||
| 82185-97407 |
M101,111 ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ LEDｼｷ & ﾘﾔｽﾎﾟｲﾗ) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-97201 |
M10#,11# |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-97201 |
M10#,11# |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-97424 |
M10#,11# |
1 | ||
| 82223-97401 |
M10#,11# |
1 | ||
| 82223-97450 |
M10#,11# |
1 | ||
| 82415 - WIRE, FUEL PUMP | ||||
| 82415-97202 |
M10#,11# |
1 | ||
| Common parts | ||||
| 82711-87210 | ||||
| 90041-20043 | ||||
| 90119-06915 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 8201 | ||||

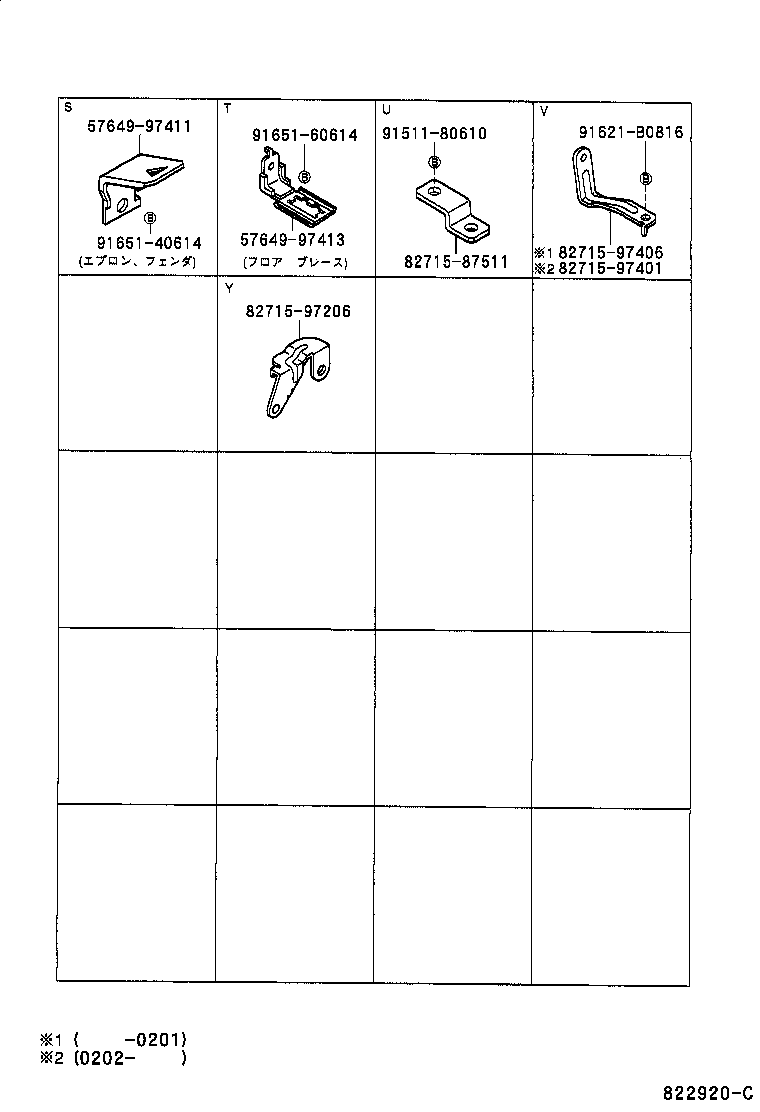

ILLUST NO. 3 OF 3(0112- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 57649-97411 | ||||
| 57649-97413 | ||||
| 82715-87511 | ||||
| 82715-97206 | ||||
| 82715-97401 | ||||
| 82715-97406 | ||||
| 91511-80610 | ||||
| 91621-B0816 | ||||
| 91651-40614 | ||||
| 91651-60614 | ||||
