M101A-GMGE (2001)

Toyota Duet

Production Dec 2001 - May 2004
Engine K3VE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0112- )

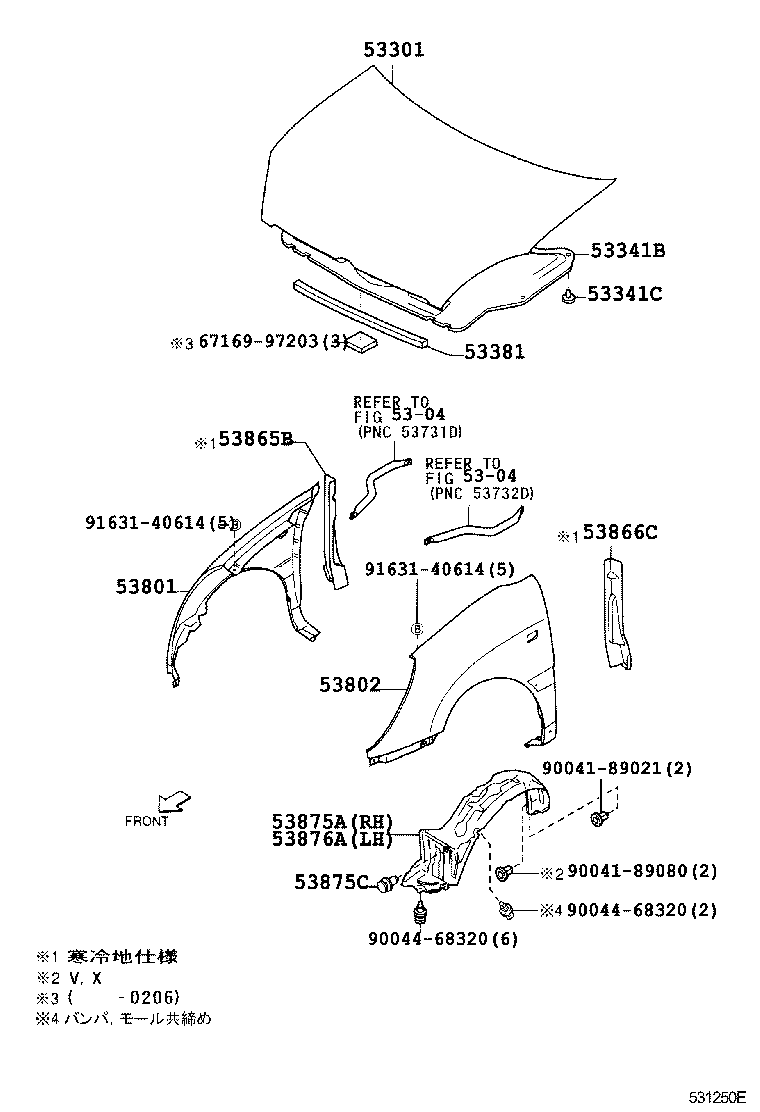

Click highlighted areas on diagram

diagram 5304 5304 53301 53341B 53341C 53381 53801 53802 53865B 53866C 53875A 53875C 53876A 6716997203 9004189021 9004189080 9004468320 9004468320 9163140614 9163140614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-97201

M10#,11#

 1
53301-97404

M10#,11#

 1
53341B - INSULATOR, HOOD
53341-97201

M10#,11#

 1
53341-97402

M10#,11#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90044-68280

M10#,11#

 9
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-97402

M10#,11#

 1
53381-87202

M10#,11#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-97404

M10#,11#..V,X

 1
53811-97201

M10#,11#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-97404

M10#,11#..V,X

 1
53812-97201

M10#,11#

 1
53865B - PLATE, FRONT FENDER EXTENSION, RH
53865-97201

M10#,11#

 1
53866C - PLATE, FRONT FENDER EXTENSION, LH
53866-97201

M10#,11#

 1
53875A - LINER, FRONT FENDER, RH
53875-97406

M10#,11#

 1
53875-97201

M10#,11#

 1
53875C - CLIP, FRONT FENDER LINER
90044-68060

M10#,11#

 12
90044-68060

M10#,11#

 8
53876A - LINER, FRONT FENDER, LH
53876-97406

M10#,11#

 1
53876-97201

M10#,11#

 1
Common parts
67169-97203
90041-89021
90041-89080
90044-68320
91631-40614
Linked diagrams
5304
