M100A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

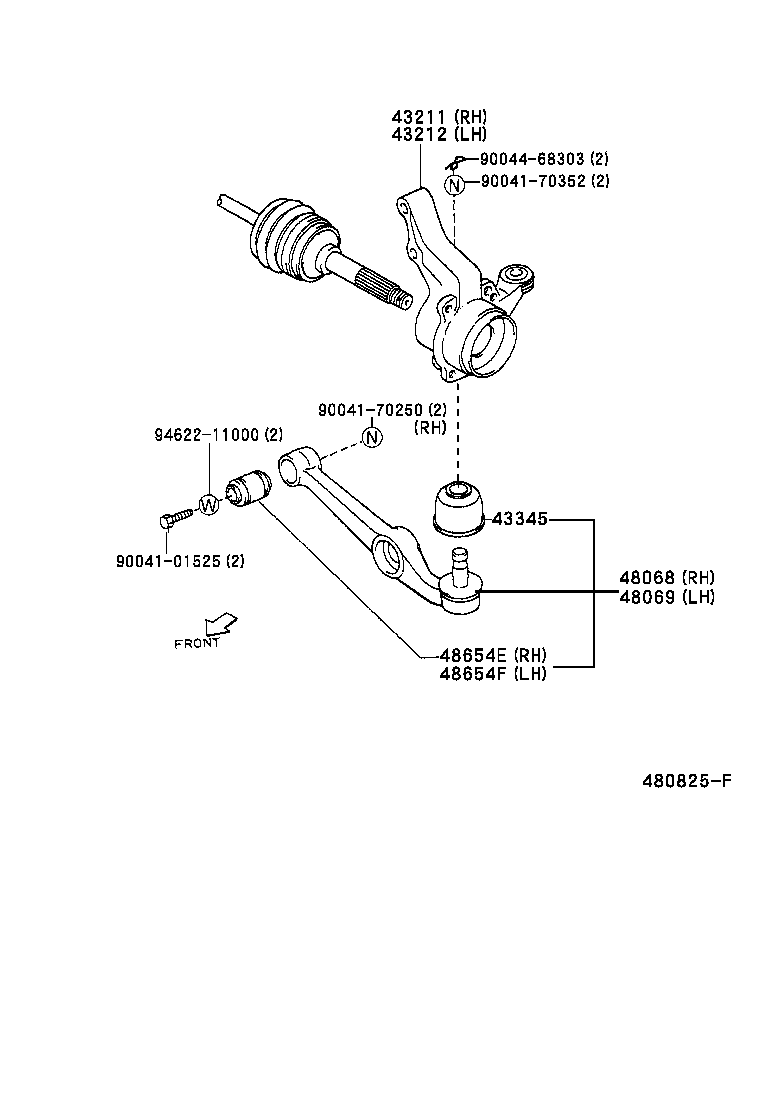

Click highlighted areas on diagram

diagram 43211 43212 43345 48068 48069 48654E 48654F 9004101525 9004170250 9004170352 9004468303 9462211000
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-97201

M100,110..V

 1
43211-97202

M100,110..V

ｱﾘ(ABS)

 1
43212 - KNUCKLE, STEERING, LH
43212-97202

M100,110..V

ｱﾘ(ABS)

 1
43212-97201

M100,110..V

 1
43345 - COVER, LOWER BALL JOINT DUST
43345-97201

M10#,11#

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-97201

M10#,11#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-97201

M10#,11#

 1
48654E - BUSH, FRONT LOWER ARM, NO.1 RH
48654-87203

M10#,11#

 1
48654F - BUSH, FRONT LOWER ARM, NO.1 LH
48654-87203

M10#,11#

 1
Common parts
90041-01525
90041-70250
90041-70352
90044-68303
94622-11000
