M100A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

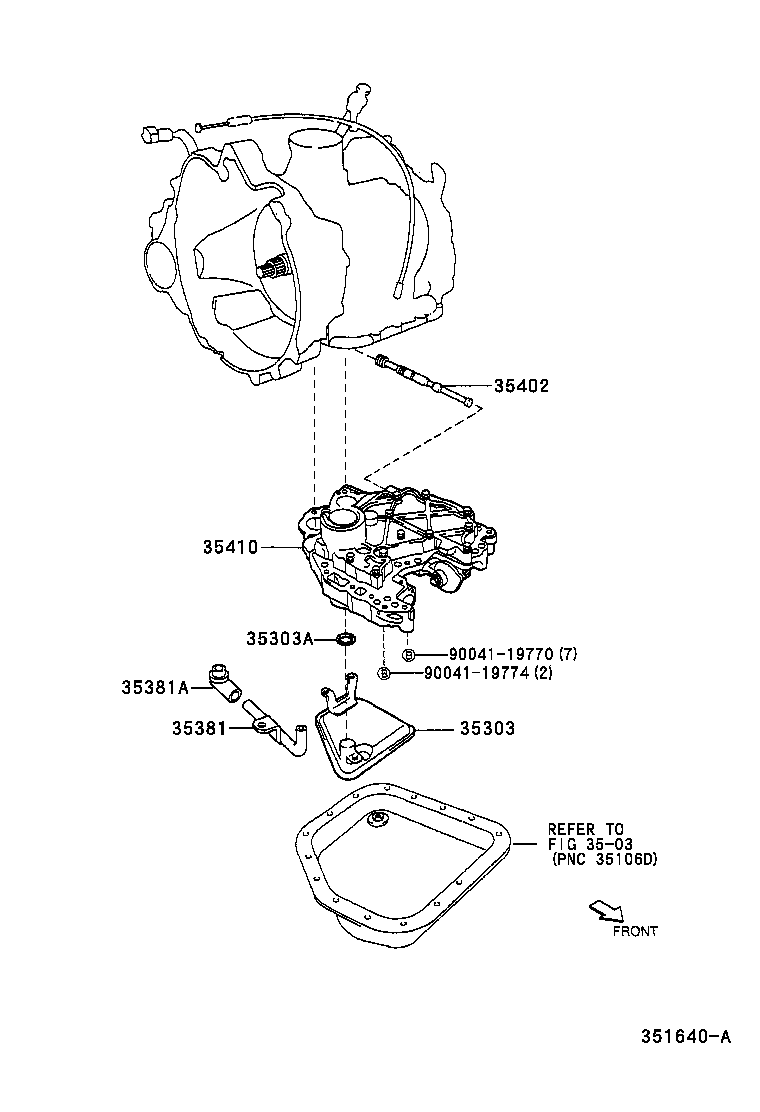

ILLUST NO. 2 OF 2(9809- )M100,110..4AT

Click highlighted areas on diagram

diagram 3503 35303 35303A 35381 35381A 35402 35410 9004119770 9004119774
Part # Description Qty Price
35303 - STRAINER SUB-ASSY, OIL
35303-87206

M100,110..4AT

 1
35303A - RING, O (FOR OIL STRAINER)
96721-24020

M100,110..4AT

 1
35381 - TUBE, VALVE BODY
35381-87202

M100,110..4AT

 1
35381A - ELBOW(FOR VALVE BODY TUBE)
90044-07054

M100,110..4AT

 1
35402 - VALVE, MANUAL
35402-97201

M100,110..4AT

 1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-97208

M100,110..4AT

 1
Common parts
90041-19770
90041-19774
Linked diagrams
3503

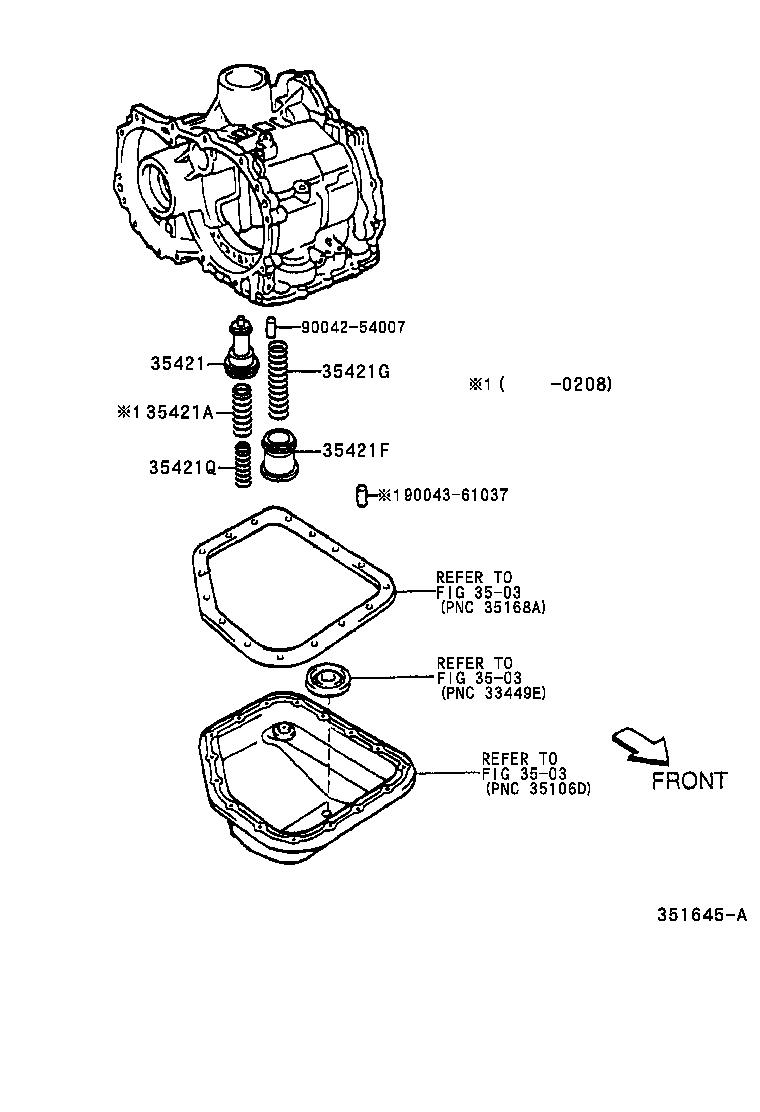

ILLUST NO. 1 OF 2(9809- )M100,110..4AT

Click highlighted areas on diagram

diagram 3503 3503 3503 35421 35421A 35421F 35421G 35421Q 9004254007 9004361037
Part # Description Qty Price
35421 - PISTON, ACCUMULATOR, NO.1
35430-87201

M100,110..4AT

 1
35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1)
90045-01491

M100,110..4AT

 1
35421F - PISTON, ACCUMULATOR, NO.2
35440-87201

M100,110..4AT

 1
35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)
90045-01490

M100,110..4AT

 1
90045-01800

M100,110..4AT

 1
35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3)
90045-01692

M100,110..4AT

 1
Common parts
90042-54007
90043-61037
Linked diagrams
3503
