M100A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )M100,110..4AT

Click highlighted areas on diagram

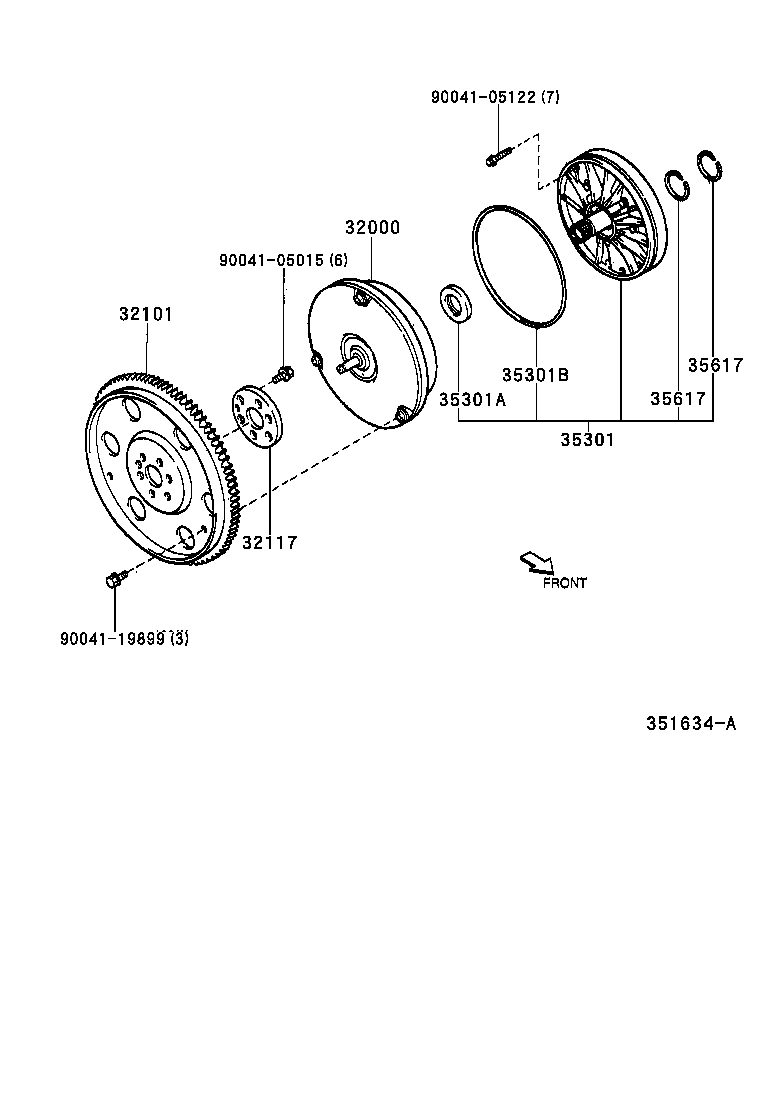

diagram 32000 32101 32117 35301 35301A 35301B 35617 35617 9004105015 9004105122 9004119899
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-97201

M100,110..4AT

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-97202

M100,110..4AT

 1
32117 - SPACER, DRIVE PLATE, REAR
32113-87201

M100,110..4AT

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35310-97202

M100,110..4AT

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90043-11336

M10#,11#..ATM

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90043-01161

M10#,11#..ATM

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-87205

M100,110..4AT

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-87205

M100,110..4AT

 2
Common parts
90041-05015
90041-05122
90041-19899
