M100A-GPNF (1998)
Toyota Duet
(9809- )

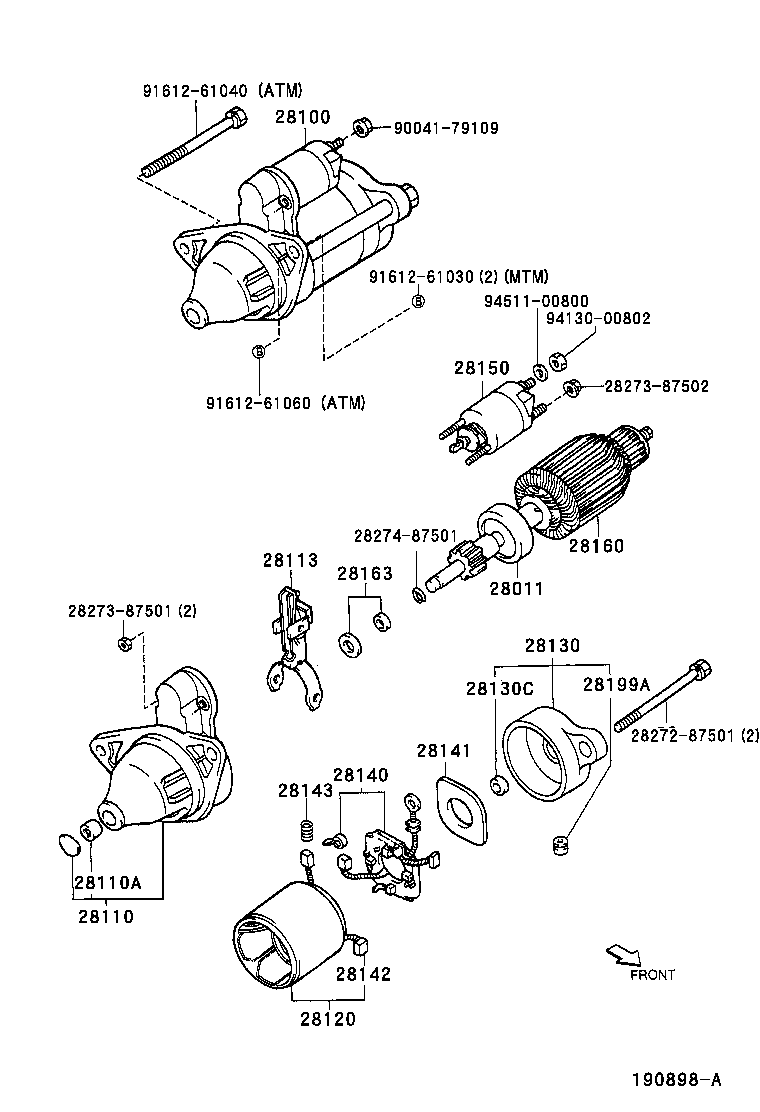

12V 0.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-87212 |
EJ#..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28011-97203 |
EJ#..M100,110..4AT 12V 0.8KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-97203 |
EJ#..M100,110..4AT 12V 0.8KW |
1 | ||
| 28100-87221 |
EJ#..M100,110..4AT 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-87216 |
EJ#..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28110-97203 |
EJ#..M100,110..4AT 12V 0.8KW |
1 | ||
| 28110A - BEARING(FOR STARTER HOUSING) | ||||
| 28277-87201 |
K3VE,EJ#..M10#,11# |
2 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-87503 |
K3VE..M101,111;EJ#..M100,110..4AT 12V 0.8KW |
1 | ||
| 28113-87204 |
K3VE..M101,111;EJ#..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-87507 |
K3VE,EJ#..M10#,11# 12V 0.8KW |
1 | ||
| 28120-87212 |
EJDE..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-87209 |
EJ#..M100,110..4AT 12V 0.8KW |
1 | ||
| 28133-97204 |
EJ#..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28133-87202 |
EJDE..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28130C - BEARING, STARTER FLANGE | ||||
| 90099-10183 |
K3VE,EJ#..M10#,11# ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-87202 |
K3VE..M101,111;EJ#..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28149-87501 |
K3VE,EJ#..M10#,11# 12V 0.8KW |
1 | ||
| 28141 - INSULATOR, BRUSH HOLDER | ||||
| 28141-87501 |
K3VE,EJ#..M10#,11# 12V 0.8KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-87504 |
EJ#..M100,110;K3VE..M101,111..4AT;K3VE..M101,111..5F..VS 12V 0.8KW |
4 | ||
| 28142-87504 |
EJ#..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-10020 |
K3VE,EJ#..M10#,11# 12V 0.8KW |
4 | ||
| 28143-87202 |
K3VE,EJ#..M10#,11# ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-87208 |
EJDE..M100,110 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-87208 |
K3VE,EJ#..M10#,11# ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28160-87205 |
EJ#..M100,110..4AT 12V 0.8KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-87202 |
K3VE,EJ#..M10#,11# ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28142-87505 |
K3VE,EJ#..M10#,11# 12V 0.8KW |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-87505 |
K3VE,EJ#..M10#,11# 12V 0.8KW |
1 | ||
| 28199-87202 |
EJ#..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| Common parts | ||||
| 28272-87501 | ||||
| 28273-87501 | ||||
| 28273-87502 | ||||
| 28274-87501 | ||||
| 90041-79109 | ||||
| 91612-61030 | ||||
| 91612-61040 | ||||
| 91612-61060 | ||||
| 94130-00802 | ||||
| 94511-00800 | ||||

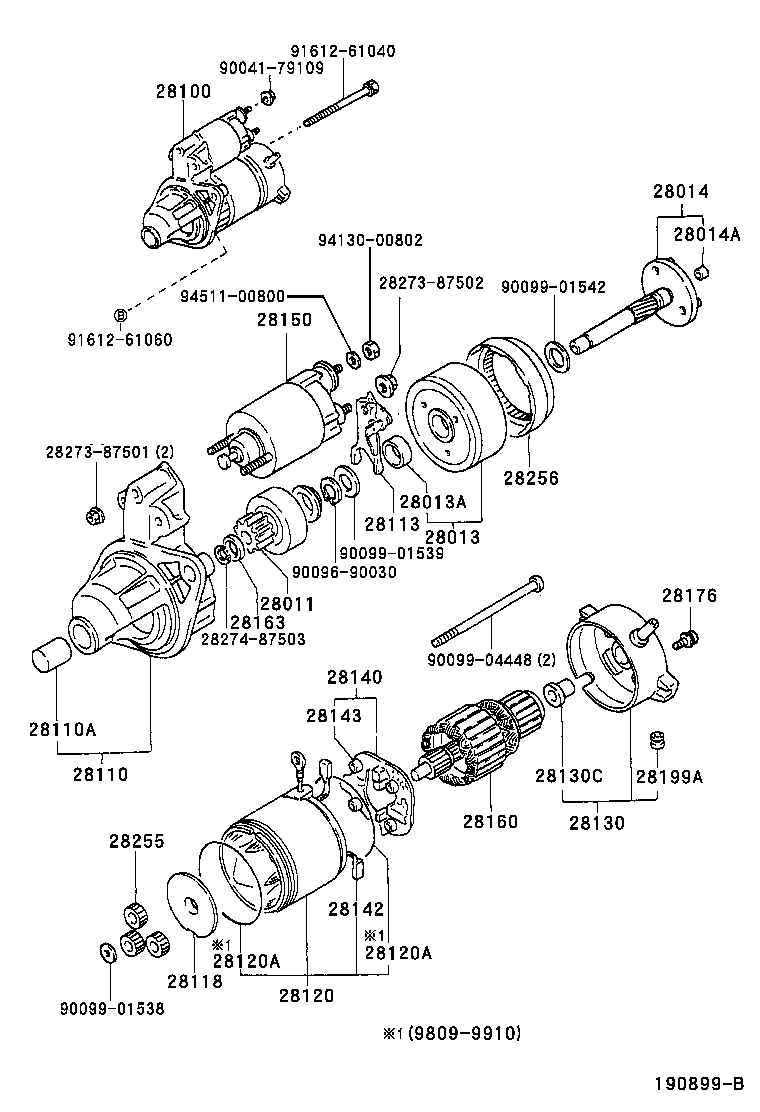

(9809-0106)
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-87212 |
EJ#..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28011-97203 |
EJ#..M100,110..4AT 12V 0.8KW |
1 | ||
| 28013 - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1 | ||||
| 28126-87201 |
K3VE,EJ#..M10#,11# ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2 | ||||
| 90099-10181 |
K3VE,EJ#..M10#,11# ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28014 - SHAFT SUB-ASSY, PLANET CARRIER | ||||
| 28209-87201 |
K3VE,EJ#..M10#,11# ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28014A - BUSH OR BEARING, PLANET CARRIER SHAFT | ||||
| 90099-10180 |
K3VE,EJ#..M10#,11# ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-97203 |
EJ#..M100,110..4AT 12V 0.8KW |
1 | ||
| 28100-87221 |
EJ#..M100,110..4AT 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-87216 |
EJ#..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28110-97203 |
EJ#..M100,110..4AT 12V 0.8KW |
1 | ||
| 28110A - BEARING(FOR STARTER HOUSING) | ||||
| 28277-87201 |
K3VE,EJ#..M10#,11# |
2 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-87503 |
K3VE..M101,111;EJ#..M100,110..4AT 12V 0.8KW |
1 | ||
| 28113-87204 |
K3VE..M101,111;EJ#..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-87201 |
K3VE,EJ#..M10#,11# ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-87507 |
K3VE,EJ#..M10#,11# 12V 0.8KW |
1 | ||
| 28120-87212 |
EJDE..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14092 |
EJDE..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14092 |
EJDE..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-87209 |
EJ#..M100,110..4AT 12V 0.8KW |
1 | ||
| 28133-97204 |
EJ#..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28133-87202 |
EJDE..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28130C - BEARING, STARTER FLANGE | ||||
| 90099-10183 |
K3VE,EJ#..M10#,11# ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-87202 |
K3VE..M101,111;EJ#..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28149-87501 |
K3VE,EJ#..M10#,11# 12V 0.8KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-87504 |
EJ#..M100,110;K3VE..M101,111..4AT;K3VE..M101,111..5F..VS 12V 0.8KW |
4 | ||
| 28142-87504 |
EJ#..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-10020 |
K3VE,EJ#..M10#,11# 12V 0.8KW |
4 | ||
| 28143-87202 |
K3VE,EJ#..M10#,11# ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-87208 |
EJDE..M100,110 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-87208 |
K3VE,EJ#..M10#,11# ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28160-87205 |
EJ#..M100,110..4AT 12V 0.8KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-87202 |
K3VE,EJ#..M10#,11# ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28142-87505 |
K3VE,EJ#..M10#,11# 12V 0.8KW |
1 | ||
| 28176 - SCREW, STARTER | ||||
| 28176-87701 |
EJDE..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
2 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-87505 |
K3VE,EJ#..M10#,11# 12V 0.8KW |
1 | ||
| 28199-87202 |
EJ#..M100,110..4AT ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28185-87201 |
K3VE,EJ#..M10#,11# ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
3 | ||
| 28256 - GEAR, STARTER INTERNAL | ||||
| 28184-87201 |
K3VE,EJ#..M10#,11# ｶﾝﾚｲﾁ ｼﾖｳ,12V 1.0KW |
1 | ||
| Common parts | ||||
| 28273-87501 | ||||
| 28273-87502 | ||||
| 28274-87503 | ||||
| 90041-79109 | ||||
| 90096-90030 | ||||
| 90099-01538 | ||||
| 90099-01539 | ||||
| 90099-01542 | ||||
| 90099-04448 | ||||
| 91612-61040 | ||||
| 91612-61060 | ||||
| 94130-00802 | ||||
| 94511-00800 | ||||
