M100A-GPNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )EJ#

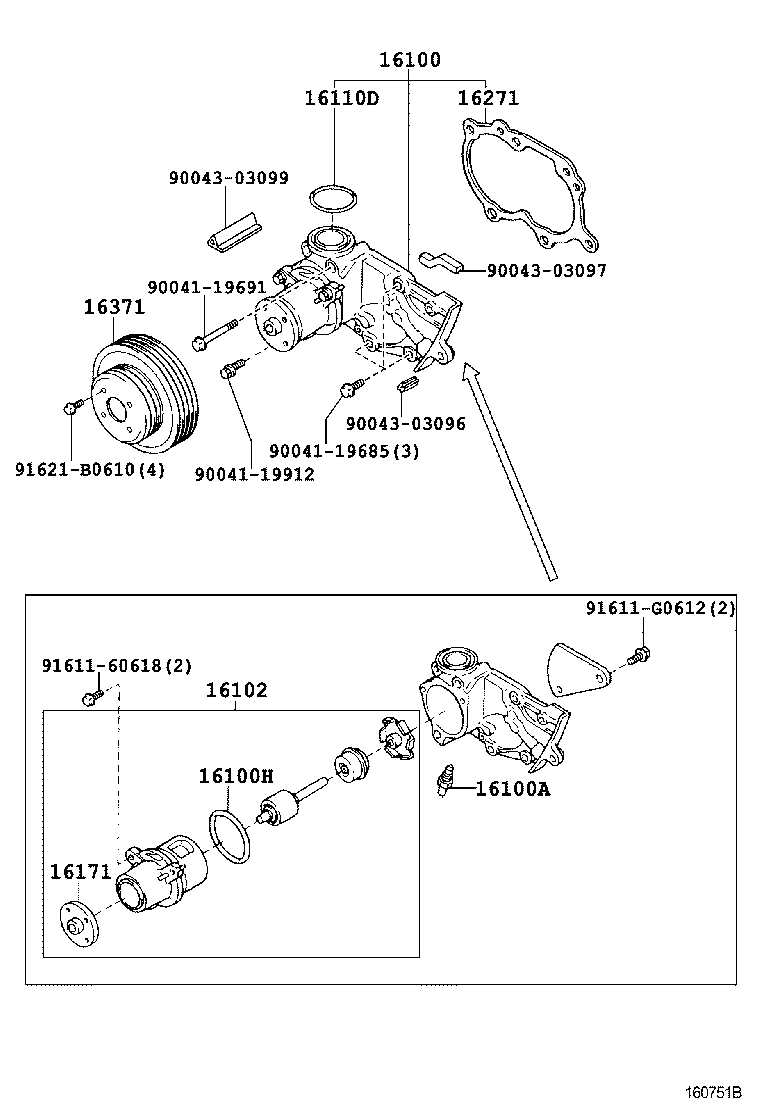

Click highlighted areas on diagram

diagram 16100 16100A 16100H 16102 16110D 16171 16271 16371 9004119685 9004119691 9004119912 9004303096 9004303097 9004303099 9161160618 91611G0612 91621B0610
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-97205

EJ#..M100,110

 1
16100A - PLUG, WATER PUMP
90043-45010

EJ#..M100,110

 1
16100H - RING, O(FOR WATER PUMP)
90043-01253

EJ#..M100,110

 1
16102 - COVER SUB-ASSY, WATER PUMP
16102-87207

EJ#..M100,110

 1
16110D - RING, O, NO.2(FOR WATER PUMP)
16442-87201

EJ#..M100,110

 1
16171 - SEAT, WATER PUMP PULLEY
16171-87201

EJ#..M100,110

 1
16271 - GASKET, WATER PUMP
16271-87204

EJ#..M100,110

 1
16371 - PULLEY, FAN
16371-97201

EJ#..M100,110

 1
Common parts
90041-19685
90041-19691
90041-19912
90043-03096
90043-03097
90043-03099
91611-60618
91611-G0612
91621-B0610
