M100A-GPNE (2000)

Toyota Duet

Production May 2000 - May 2004
Engine EJVE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

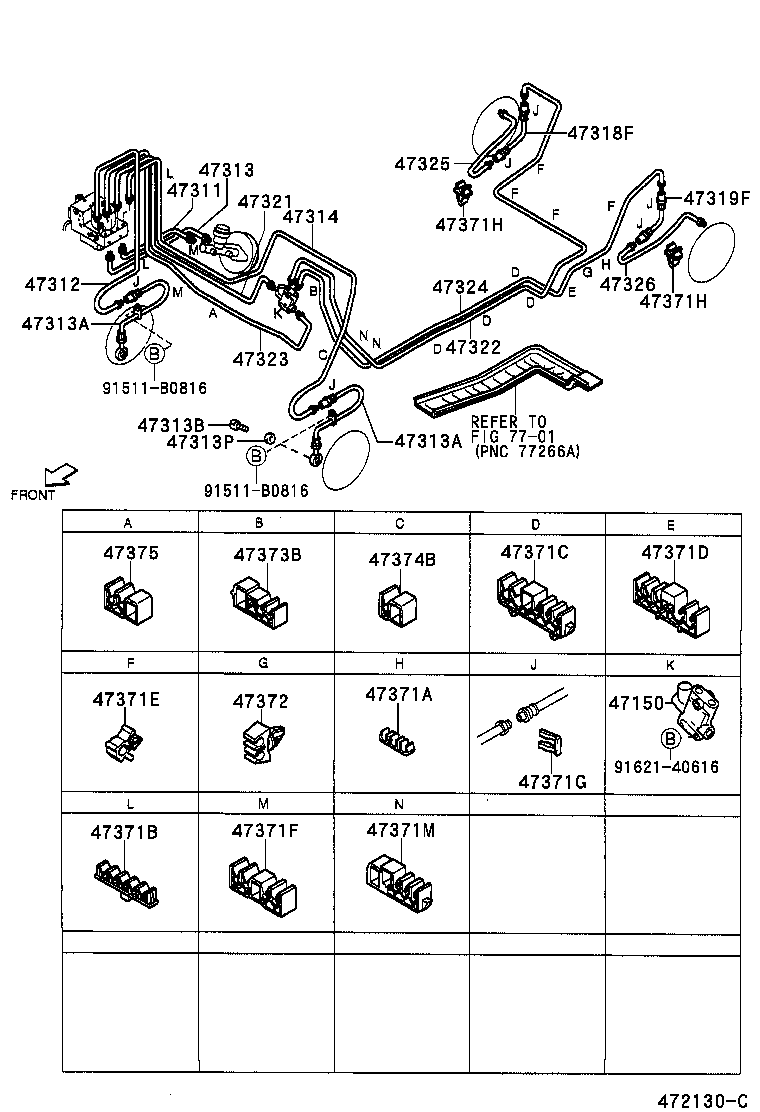

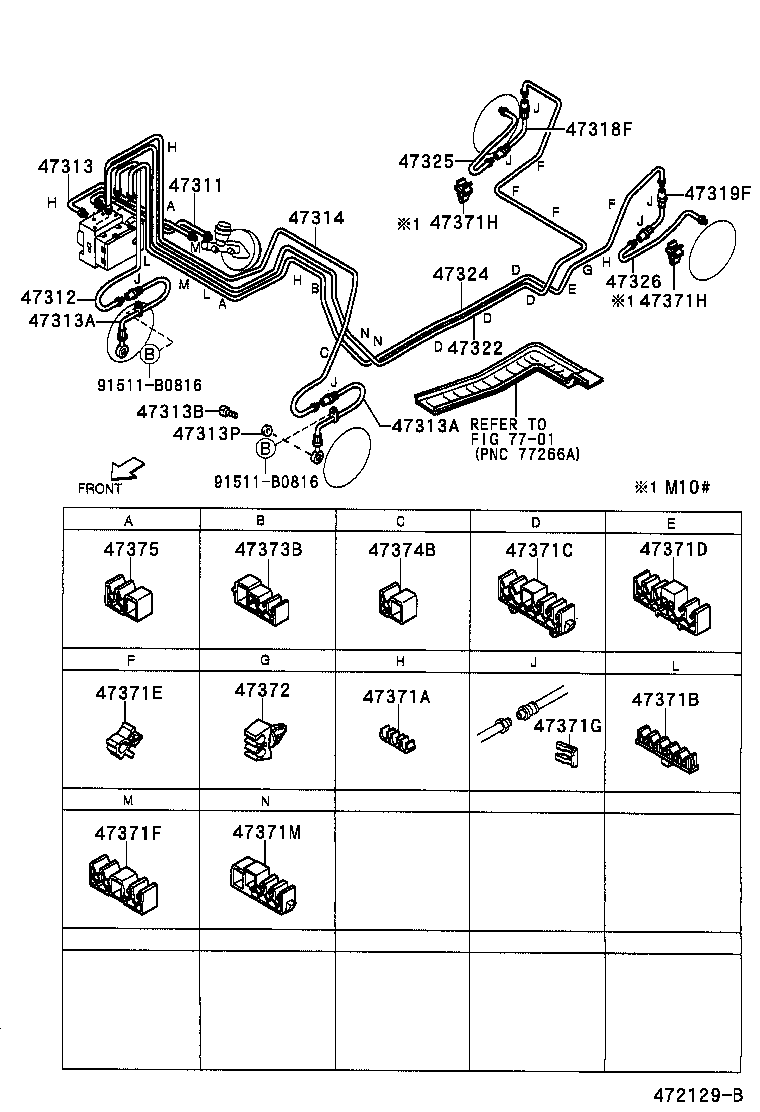

ILLUST NO. 1 OF 2(0005- )

Click highlighted areas on diagram

ｱﾘ(ABS)

diagram 47311 47312 47313 47313A 47313A 47313B 47313P 47314 47318F 47319F 47322 47324 47325 47326 47371A 47371B 47371C 47371D 47371E 47371F 47371G 47371H 47371H 47371M 47372 47373B 47374B 47375 7701 91511B0816 91511B0816
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-97404

M100,110..V

ｱﾘ(ABS)

 1
47311-97404

M10#,11#

 1
47311-97201

M100,110..V

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-97202

M100,110..V

ｱﾘ(ABS)

 1
47312-97201

M100,110..V

 1
47312-97403

M100,110..V

ｱﾘ(ABS)

 1
47312-97403

M10#,11#

 1
47312-97201

M100,110..V

ﾅｼ(ABS)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-97202

M100,110..V

ｱﾘ(ABS)

 1
47313-97201

M100,110..V

ﾅｼ(ABS)

 1
47313-97404

M100,110..V

ｱﾘ(ABS)

 1
47313-97404

M10#,11#

 1
47313-97201

M100,110..V

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22174

M10#,11#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22174

M10#,11#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90044-01079

M10#,11#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201

M10#,11#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-97201

M100,110..V

ﾅｼ(ABS)

 1
47314-97201

M100,110..V

 1
47314-97202

M100,110..V

ｱﾘ(ABS)

 1
47314-97403

M10#,11#

 1
47314-97403

M100,110..V

ｱﾘ(ABS)

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90049-22175

M10#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90049-22175

M10#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-97401

M100,110..V

ｱﾘ(ABS)

 1
47322-97201

M100,110..LVVT;M100,110..V..WVVT

 1
47322-97201

M100,110..V

ﾅｼ(ABS)

 1
47322-97401

M10#,11#

ｱﾘ(ABS)

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-97401

M10#,11#

ｱﾘ(ABS)

 1
47324-97201

M100,110..V

ﾅｼ(ABS)

 1
47324-97401

M100,110..V

ｱﾘ(ABS)

 1
47324-97201

M100,110..LVVT;M100,110..V..WVVT

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-97201

M10#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-97201

M10#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90044-64196

M10#,11#

 4
90044-64196

M100,110

 2
90044-64196

M10#,11#

 3
47371B - CLAMP, BRAKE TUBE, NO.6
90044-64699

M10#,11#

 2
90044-64591

M100,110..V

ｱﾘ(ABS)

 2
47371C - CLAMP, BRAKE TUBE, NO.7
90044-64657

M10#,11#

 4
47371D - CLAMP, BRAKE TUBE, NO.8
90044-64658

M10#,11#

 1
90044-64766

M10#,11#

 1
47371E - CLAMP, BRAKE TUBE, NO.9
90044-64659

M10#,11#

 4
47371F - CLAMP, BRAKE TUBE, NO.10
90044-64660

M100,110..V

ｱﾘ(ABS)

 1
90044-64668

M10#,11#

 1
47371G - CLAMP, BRAKE TUBE, NO.11
90044-65441

M10#,11#

 4
47371H - CLAMP, BRAKE TUBE, NO.12
90044-64661

M10#

 2
47371H - CLAMP, BRAKE TUBE, NO.12
90044-64661

M10#

 2
47371M - CLAMP, BRAKE TUBE, NO.13
90044-64695

M10#,11#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90044-64485

M10#,11#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90044-64694

M10#,11#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90044-64655

M10#,11#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90044-64656

M100,110

 3
Common parts
91511-B0816
Linked diagrams
7701

ILLUST NO. 1 OF 2(0005- )

Click highlighted areas on diagram

ｱﾘ(VSC)

diagram 47150 47311 47312 47313 47313A 47313A 47313B 47313P 47314 47318F 47319F 47321 47322 47323 47324 47325 47326 47371A 47371B 47371C 47371D 47371E 47371F 47371G 47371H 47371H 47371M 47372 47373B 47374B 47375 7701 91511B0816 91511B0816 9162140616
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-97201

M100,110..V

 1
47150-97202

M100,110..V

ｱﾘ(ABS)

 1
47150-97201

M100,110..V

ﾅｼ(ABS)

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-97404

M100,110..V

ｱﾘ(ABS)

 1
47311-97404

M10#,11#

 1
47311-97201

M100,110..V

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-97202

M100,110..V

ｱﾘ(ABS)

 1
47312-97201

M100,110..V

 1
47312-97403

M100,110..V

ｱﾘ(ABS)

 1
47312-97403

M10#,11#

 1
47312-97201

M100,110..V

ﾅｼ(ABS)

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-97202

M100,110..V

ｱﾘ(ABS)

 1
47313-97201

M100,110..V

ﾅｼ(ABS)

 1
47313-97404

M100,110..V

ｱﾘ(ABS)

 1
47313-97404

M10#,11#

 1
47313-97201

M100,110..V

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22174

M10#,11#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90049-22174

M10#,11#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90044-01079

M10#,11#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-97201

M10#,11#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-97201

M100,110..V

ﾅｼ(ABS)

 1
47314-97201

M100,110..V

 1
47314-97202

M100,110..V

ｱﾘ(ABS)

 1
47314-97403

M10#,11#

 1
47314-97403

M100,110..V

ｱﾘ(ABS)

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90049-22175

M10#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90049-22175

M10#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-97201

M100,110

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-97401

M100,110..V

ｱﾘ(ABS)

 1
47322-97201

M100,110..LVVT;M100,110..V..WVVT

 1
47322-97201

M100,110..V

ﾅｼ(ABS)

 1
47322-97401

M10#,11#

ｱﾘ(ABS)

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-97201

M100,110..V

ﾅｼ(ABS)

 1
47323-97202

M100,110

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-97401

M10#,11#

ｱﾘ(ABS)

 1
47324-97201

M100,110..V

ﾅｼ(ABS)

 1
47324-97401

M100,110..V

ｱﾘ(ABS)

 1
47324-97201

M100,110..LVVT;M100,110..V..WVVT

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-97201

M10#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-97201

M10#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90044-64196

M10#,11#

 4
90044-64196

M100,110

 2
90044-64196

M10#,11#

 3
47371B - CLAMP, BRAKE TUBE, NO.6
90044-64699

M10#,11#

 2
90044-64591

M100,110..V

ｱﾘ(ABS)

 2
47371C - CLAMP, BRAKE TUBE, NO.7
90044-64657

M10#,11#

 4
47371D - CLAMP, BRAKE TUBE, NO.8
90044-64658

M10#,11#

 1
90044-64766

M10#,11#

 1
47371E - CLAMP, BRAKE TUBE, NO.9
90044-64659

M10#,11#

 4
47371F - CLAMP, BRAKE TUBE, NO.10
90044-64660

M100,110..V

ｱﾘ(ABS)

 1
90044-64668

M10#,11#

 1
47371G - CLAMP, BRAKE TUBE, NO.11
90044-65441

M10#,11#

 4
47371H - CLAMP, BRAKE TUBE, NO.12
90044-64661

M10#

 2
47371H - CLAMP, BRAKE TUBE, NO.12
90044-64661

M10#

 2
47371M - CLAMP, BRAKE TUBE, NO.13
90044-64695

M10#,11#

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90044-64485

M10#,11#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90044-64694

M10#,11#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90044-64655

M10#,11#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90044-64656

M100,110

 3
Common parts
91511-B0816
91621-40616
Linked diagrams
7701

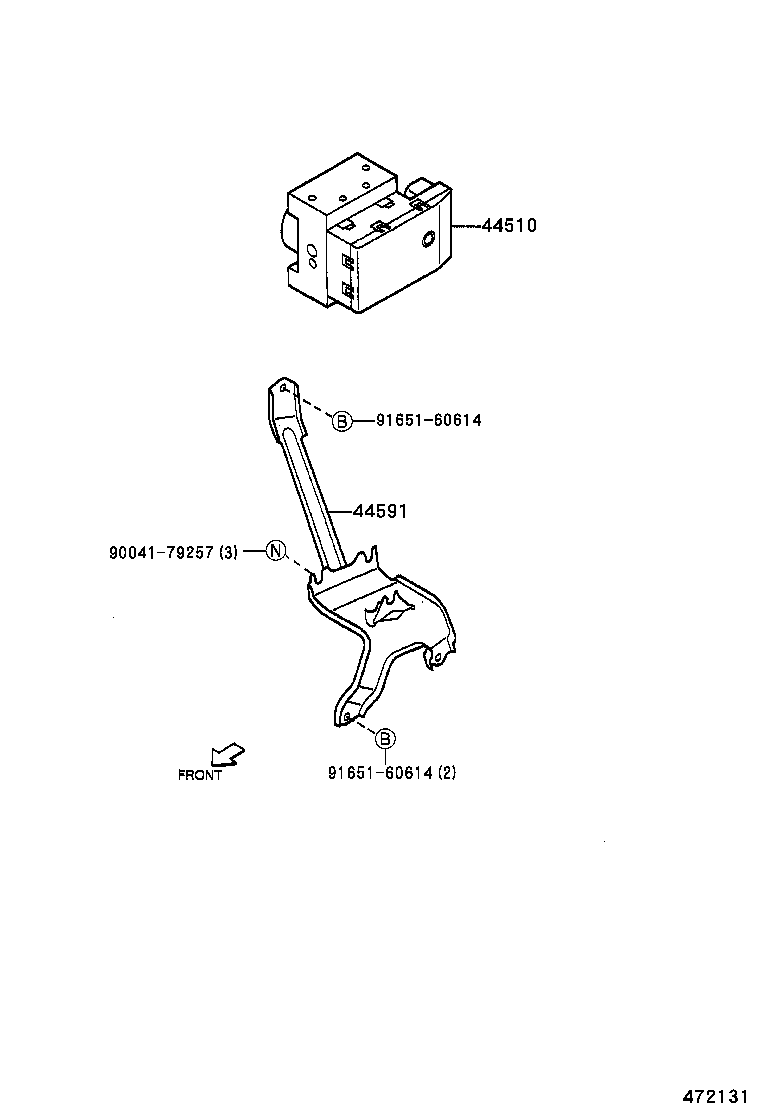

ILLUST NO. 2 OF 2(0005- )

Click highlighted areas on diagram

ｱﾘ(ABS)

diagram 44510 44591 9004179257 9165160614 9165160614
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-97201

M100

 1
44050-97401

M10#

 1
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-97201

M100,110

 1
44591-97401

M10#,11#

 1
44591-97401

M100,110..V

V ｸﾗｼﾂｸ *(C)

 1
44591-97401

M100,110..V

ｱﾘ(ABS)

 1
Common parts
90041-79257
91651-60614

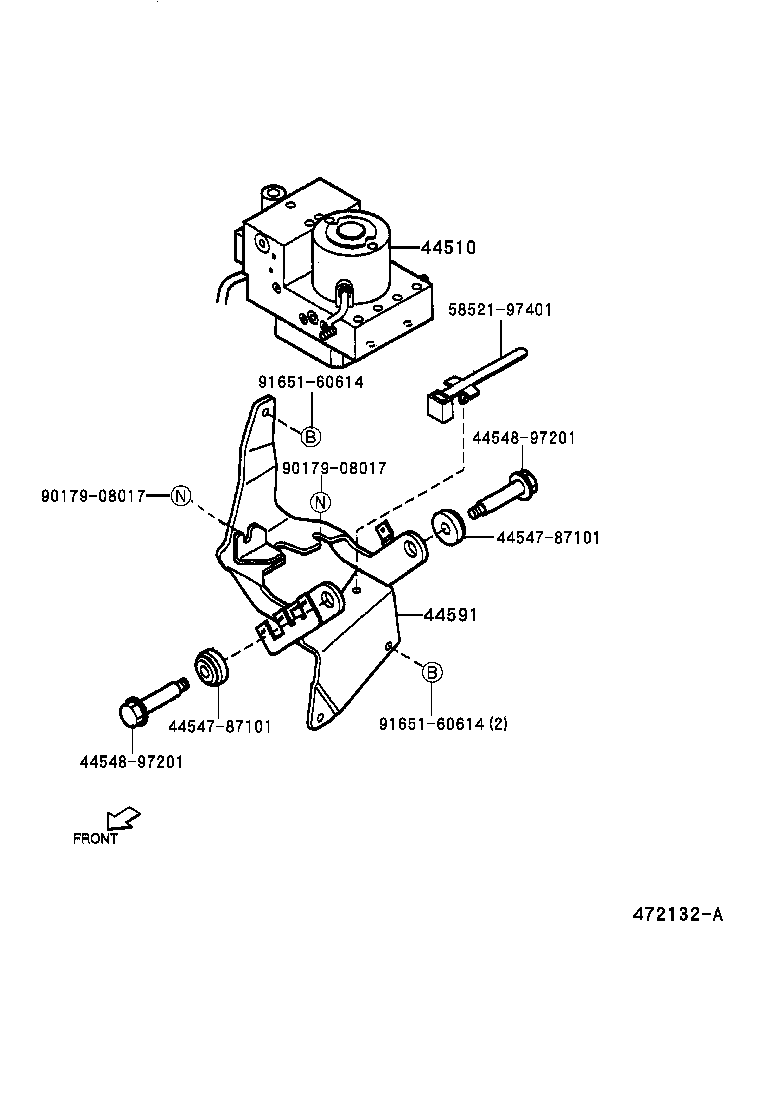

ILLUST NO. 2 OF 2(0005- )

Click highlighted areas on diagram

ｱﾘ(VSC)

diagram 44510 4454787101 4454787101 4454897201 4454897201 44591 5852197401 9017908017 9017908017 9165160614 9165160614
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-97201

M100

 1
44050-97401

M10#

 1
44591 - BRACKET, BRAKE ACTUATOR, NO.1
44591-97201

M100,110

 1
44591-97401

M10#,11#

 1
44591-97401

M100,110..V

V ｸﾗｼﾂｸ *(C)

 1
44591-97401

M100,110..V

ｱﾘ(ABS)

 1
Common parts
44547-87101
44548-97201
58521-97401
90179-08017
91651-60614
