M100A-GPGF (1998)
Toyota Duet

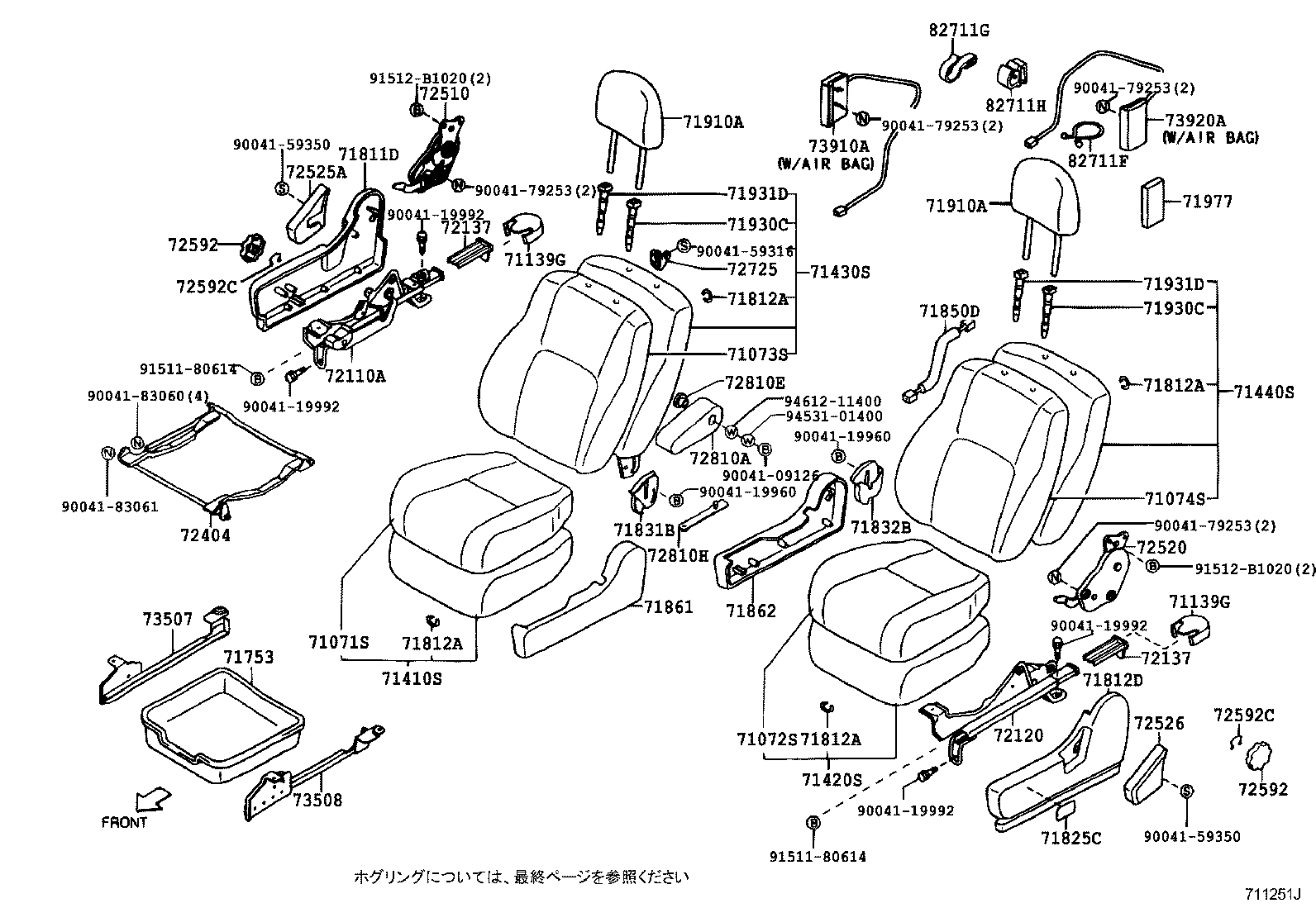

ILLUST NO. 1 OF 2(9809-0005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71063-9720103 |
M100,110..V DARK GRAY,TRIMS6 |
1 | ||
| 71063-9720303 |
M100,110..X DARK GRAY,TRIMS6 |
1 | ||
| 71063-9722203 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6) & ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),GRAY,TRIMS6 |
1 | ||
| 71063-9722103 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6),DARK GRAY,TRIMS6 |
1 | ||
| 71063-9722003 |
M100,110..V ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),GRAY,TRIMS6 |
1 | ||
| 71063-9720401 |
M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71064-9720203 |
M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
1 | ||
| 71064-9720301 |
M100,110..X BLACK,TRIMS6 |
1 | ||
| 71064-9722203 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6 |
1 | ||
| 71064-9720103 |
M100,110..V DARK GRAY,TRIMS6 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71061-9720103 |
M100,110..V DARK GRAY,TRIMS6 |
1 | ||
| 71061-9720303 |
M100,110..4AT..X DARK GRAY,TRIMS6 |
1 | ||
| 71061-9723303 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FAS6) & ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71061-9724003 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6) & ｱﾘ(*80,ｻｲﾄﾞ),DARK GRAY,TRIMS6 |
1 | ||
| 71061-9720503 |
M100,110..4AT..X ｱﾘ(*80,ｻｲﾄﾞ),DARK GRAY,TRIMS6 |
1 | ||
| 71061-9720701 |
M100,110..4AT..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
1 | ||
| 71061-9720103 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FAS6),DARK GRAY,TRIMS6 |
1 | ||
| 71061-9723403 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6 |
1 | ||
| 71061-9723703 |
M100,110..4AT..X GRAY,TRIMS6 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71062-9720103 |
M100,110..V DARK GRAY,TRIMS6 |
1 | ||
| 71062-9720203 |
M100,110..X DARK GRAY,TRIMS6 |
1 | ||
| 71062-9722703 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6 |
1 | ||
| 71062-9720303 |
M100,110..X ｱﾘ(*80,ｻｲﾄﾞ),DARK GRAY,TRIMS6 |
1 | ||
| 71062-9722803 |
M100,110..X GRAY,TRIMS6 |
1 | ||
| 71062-9720501 |
M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
1 | ||
| 71062-9723203 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6) & ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71062-9723103 |
M100,110..V ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71139G - COVER, FRONT SEAT LEG | ||||
| 71139-97201 |
M10#,11# ﾚｶﾛｼ-ﾄ |
2 | ||
| 71139G - COVER, FRONT SEAT LEG | ||||
| 71139-97201 |
M10#,11# ﾚｶﾛｼ-ﾄ |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71510-9720103 |
M100,110..V DARK GRAY,TRIMS6 |
1 | ||
| 71510-9721303 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6) & ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),GRAY,TRIMS6 |
1 | ||
| 71510-9721103 |
M100,110..V ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),GRAY,TRIMS6 |
1 | ||
| 71510-9720401 |
M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
1 | ||
| 71510-9721401 |
M100,110..V ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71510-9720303 |
M100,110..X DARK GRAY,TRIMS6 |
1 | ||
| 71510-9721203 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6),DARK GRAY,TRIMS6 |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71520-9720203 |
M100,110..X DARK GRAY,TRIMS6 |
1 | ||
| 71520-9720301 |
M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
1 | ||
| 71520-9721503 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6 |
1 | ||
| 71520-9720103 |
M100,110..V DARK GRAY,TRIMS6 |
1 | ||
| 71520-9721801 |
M100,110..V ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-9720103 |
M100,110..V DARK GRAY,TRIMS6 |
1 | ||
| 71430-9727003 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6) & ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71430-9723003 |
M100,110..4AT..X ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71430-9720901 |
M100,110..4AT..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
1 | ||
| 71430-9720503 |
M100,110..4AT..X DARK GRAY,TRIMS6 |
1 | ||
| 71430-9726001 |
M100,110..V ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71430-9724603 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6 |
1 | ||
| 71430-9725103 |
M100,110..4AT..X GRAY,TRIMS6 |
1 | ||
| 71430-9727103 |
M100,110..V ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71430-9724303 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FAS6),GRAY,TRIMS6 |
1 | ||
| 71430-9725601 |
M100,110..4AT..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71540-9726503 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6) & ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71540-9724603 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6 |
1 | ||
| 71540-9720203 |
M100,110..X DARK GRAY,TRIMS6 |
1 | ||
| 71540-9723103 |
M100,110..X ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71540-9724403 |
M100,110..V GRAY,TRIMS6 |
1 | ||
| 71540-9724803 |
M100,110..X GRAY,TRIMS6 |
1 | ||
| 71540-9720103 |
M100,110..V DARK GRAY,TRIMS6 |
1 | ||
| 71540-9726603 |
M100,110..V ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71540-9720501 |
M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
1 | ||
| 71540-9725701 |
M100,110..V ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71540-9725201 |
M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-97201 |
M10#,11#..X |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-9720103 |
M100,110 DARK GRAY,TRIMS6 |
1 | ||
| 71811-9720701 |
M100,110..V ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
M10#,11# |
33 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
M10#,11# |
33 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
M10#,11# |
33 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 71812-87201 |
M10#,11# |
33 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-9720701 |
M100,110..V ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71812-9720103 |
M100,110 DARK GRAY,TRIMS6 |
1 | ||
| 71825C - PLATE | ||||
| 71825-97201 |
M100,110 ｱﾘ(*80,ｻｲﾄﾞ) |
2 | ||
| 71825-97201 |
M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
2 | ||
| 71831B - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-9720103 |
M10#,11# GRAY,TRIMS6,S8 |
1 | ||
| 71832B - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-9720103 |
M10#,11# GRAY,TRIMS6,S8 |
1 | ||
| 71850D - HARNESS ASSY, FRONT SEAT | ||||
| 71850-97201 |
M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 71850-97201 |
M100,110 ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-9720401 |
M101..4ATS..VS;M100,110..V..LVVT ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71861-9720103 |
M100,110 DARK GRAY,TRIMS6 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-9720103 |
M100,110 DARK GRAY,TRIMS6 |
1 | ||
| 71862-9720501 |
M101..4ATS..VS;M100,110..V..LVVT ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9720203 |
M100,110..X DARK GRAY,TRIMS6 |
2 | ||
| 71910-9721803 |
M100,110..V ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ & ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ｼ-ﾄ ｱﾝﾀﾞ-ﾄﾚｲ),GRAY,TRIMS6 |
2 | ||
| 71910-9720103 |
M100,110..V DARK GRAY,TRIMS6 |
2 | ||
| 71910-9720301 |
M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-9720203 |
M100,110..X DARK GRAY,TRIMS6 |
2 | ||
| 71910-9721803 |
M100,110..V ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ & ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ & ｼ-ﾄ ｱﾝﾀﾞ-ﾄﾚｲ),GRAY,TRIMS6 |
2 | ||
| 71910-9720103 |
M100,110..V DARK GRAY,TRIMS6 |
2 | ||
| 71910-9720301 |
M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
2 | ||
| 71930C - SUPPORT, FRONT SEAT HEADREST, LH | ||||
| 71930-9720103 |
M100,110 DARK GRAY,TRIMS6 |
2 | ||
| 71930C - SUPPORT, FRONT SEAT HEADREST, LH | ||||
| 71930-9720103 |
M100,110 DARK GRAY,TRIMS6 |
2 | ||
| 71931D - SUPPORT, FRONT SEAT HEADREST, RH | ||||
| 71931-9720103 |
M100,110 DARK GRAY,TRIMS6 |
2 | ||
| 71931D - SUPPORT, FRONT SEAT HEADREST, RH | ||||
| 71931-9720103 |
M100,110 DARK GRAY,TRIMS6 |
2 | ||
| 71977 - CUSHION | ||||
| 71977-97201 |
M100,110 ｱﾘ(*80,ｻｲﾄﾞ) |
2 | ||
| 71977-97201 |
M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-97202 |
M100,110..X |
1 | ||
| 72110-97202 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6) & ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ);ｼ-ﾄ ﾀｲﾌﾟ (FDS6) |
1 | ||
| 72110-97209 |
M100,110..V ﾚｶﾛｼ-ﾄ |
1 | ||
| 72110-97201 |
M100,110..V |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-97208 |
M100,110..V ﾚｶﾛｼ-ﾄ |
1 | ||
| 72120-97201 |
M100,110 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-97202 |
M100,110 |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-97202 |
M100,110 |
2 | ||
| 72404 - LINK SUB-ASSY, VERTICAL SEAT | ||||
| 72404-97201 |
M100,110..X |
1 | ||
| 72404-97201 |
M100,110..V ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-97201 |
M10#,11# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-97201 |
M10#,11# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-9720103 |
M10#,11# DARK GRAY,TRIMS6 |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-9720103 |
M10#,11# DARK GRAY,TRIMS6 |
1 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-8770103 |
M100,110..V ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DARK GRAY,TRIMS6 |
1 | ||
| 72592-8770103 |
M101,111;M100,110..X DARK GRAY,TRIMS6 |
1 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-8770103 |
M100,110..V ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),DARK GRAY,TRIMS6 |
1 | ||
| 72592-8770103 |
M101,111;M100,110..X DARK GRAY,TRIMS6 |
1 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90045-20167 |
M100,110..V ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 90045-20167 |
M101,111;M100,110..X |
1 | ||
| 72592C - RING, SHAFT SNAP | ||||
| 90045-20167 |
M100,110..V ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 90045-20167 |
M101,111;M100,110..X |
1 | ||
| 72725 - HOOK, FRONT SEAT BACK | ||||
| 72725-8720113 |
M10#,11# DARK GRAY,TRIMS6 |
1 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72810-9720201 |
M100,110..4AT..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
1 | ||
| 72810-9720103 |
M100,110..4AT..X DARK GRAY,TRIMS6 |
1 | ||
| 72810E - BUSH, FRONT SEAT ARMREST, NO.1 | ||||
| 90043-85112 |
M10#,11#..ATM..(VS,X) |
1 | ||
| 72810H - CLAMP, FRONT SEAT ARMREST | ||||
| 90044-64072 |
M100,110 |
1 | ||
| 73507 - RAIL SUB-ASSY, FRONT SEAT | ||||
| 73507-97201 |
M100,110..X |
1 | ||
| 73507-97201 |
M100,110..V V ﾘﾐﾃﾂﾄﾞ;ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 73508 - RAIL SUB-ASSY, FRONT SEAT | ||||
| 73508-97201 |
M100,110..V V ﾘﾐﾃﾂﾄﾞ;ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 73508-97201 |
M101,111;M100,110..X |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-97201 |
M100,110 ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 73910-97201 |
M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-97201 |
M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 73920-97201 |
M100,110 ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 82711F - CLAMP, WIRING HARNESS | ||||
| 90044-64025 |
M100,110..V ｱﾘ(*80,ｻｲﾄﾞ) |
1 | ||
| 82711G - CLAMP, WIRING HARNESS | ||||
| 90044-65316 |
M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
2 | ||
| 82711-97207 |
M100,110..V V ﾘﾐﾃﾂﾄﾞ & ｱﾘ(*80,ｻｲﾄﾞ);ｱﾘ(*80,ｻｲﾄﾞ & ｼ-ﾄ ｱﾝﾀﾞ-ﾄﾚｲ);ｱﾘ(*80,ｻｲﾄﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
1 | ||
| 82711-97207 |
M10#,11# ｱﾘ(*80,ｻｲﾄﾞ) |
2 | ||
| 82711H - CLAMP, WIRING HARNESS | ||||
| 82711-97208 |
M100,110..V V ﾘﾐﾃﾂﾄﾞ & ｱﾘ(*80,ｻｲﾄﾞ);ｱﾘ(*80,ｻｲﾄﾞ & ｼ-ﾄ ｱﾝﾀﾞ-ﾄﾚｲ);ｱﾘ(*80,ｻｲﾄﾞ & ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ) |
2 | ||
| 82711-97208 |
M10#,11# ｱﾘ(*80,ｻｲﾄﾞ) |
4 | ||
| 82711-97208 |
M100,110..X ｱﾘ(*80,ｻｲﾄﾞ) |
4 | ||
| Common parts | ||||
| 90041-09126 | ||||
| 90041-19960 | ||||
| 90041-19992 | ||||
| 90041-59316 | ||||
| 90041-59350 | ||||
| 90041-79253 | ||||
| 90041-83060 | ||||
| 90041-83061 | ||||
| 91511-80614 | ||||
| 91512-B1020 | ||||
| 94531-01400 | ||||
| 94612-11400 | ||||

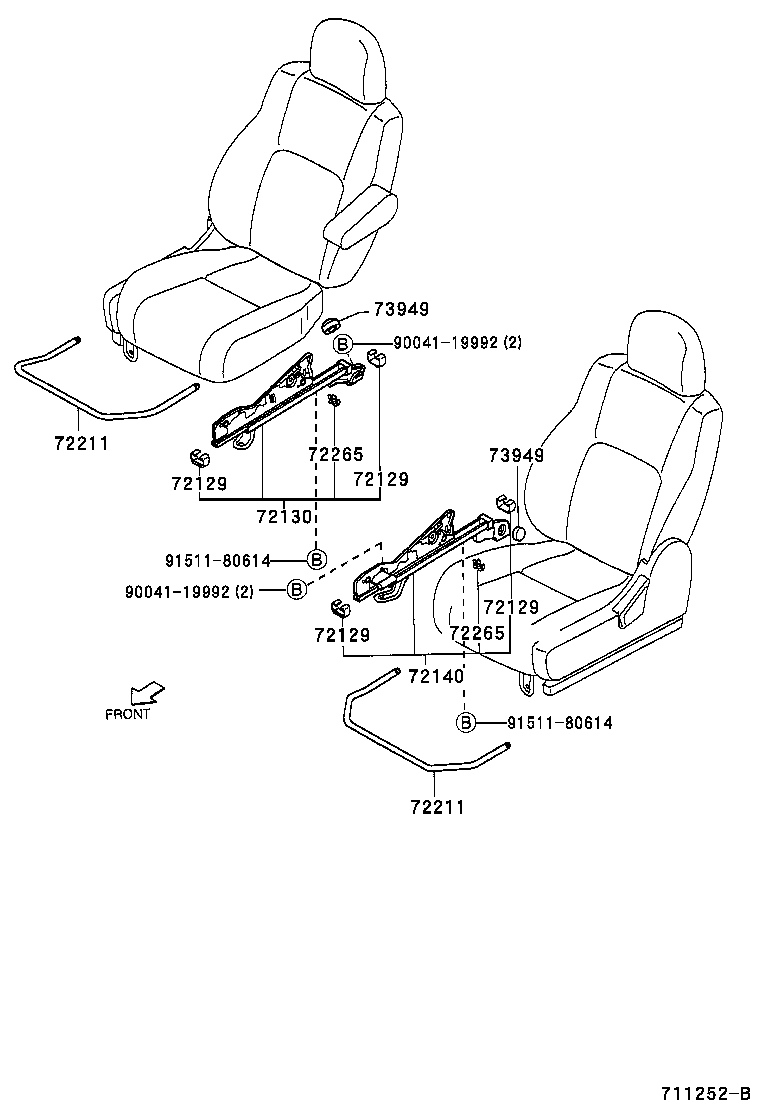

ILLUST NO. 2 OF 2(9809-0005)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72137-97201 |
M100,110 |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72137-97201 |
M100,110 |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72137-97201 |
M100,110 |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72137-97201 |
M100,110 |
4 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-97205 |
M100,110..V ﾚｶﾛｼ-ﾄ |
1 | ||
| 72130-97202 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6) & ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ);ｼ-ﾄ ﾀｲﾌﾟ (FDS6) |
1 | ||
| 72130-97201 |
M100,110..V |
1 | ||
| 72130-97202 |
M100,110..X |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-97205 |
M100,110..V ﾚｶﾛｼ-ﾄ |
1 | ||
| 72140-97201 |
M100,110 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-97201 |
M100,110 右側 |
2 | ||
| 72212-97201 |
M100,110 左側 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-97201 |
M100,110 右側 |
2 | ||
| 72212-97201 |
M100,110 左側 |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-87701 |
M100,110 ﾚｶﾛｼ-ﾄ |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-87701 |
M100,110 ﾚｶﾛｼ-ﾄ |
2 | ||
| 73949 - CAP | ||||
| 73949-87502 |
M10#,11# |
2 | ||
| 73949 - CAP | ||||
| 73949-87502 |
M10#,11# |
2 | ||
| Common parts | ||||
| 90041-19992 | ||||
| 91511-80614 | ||||

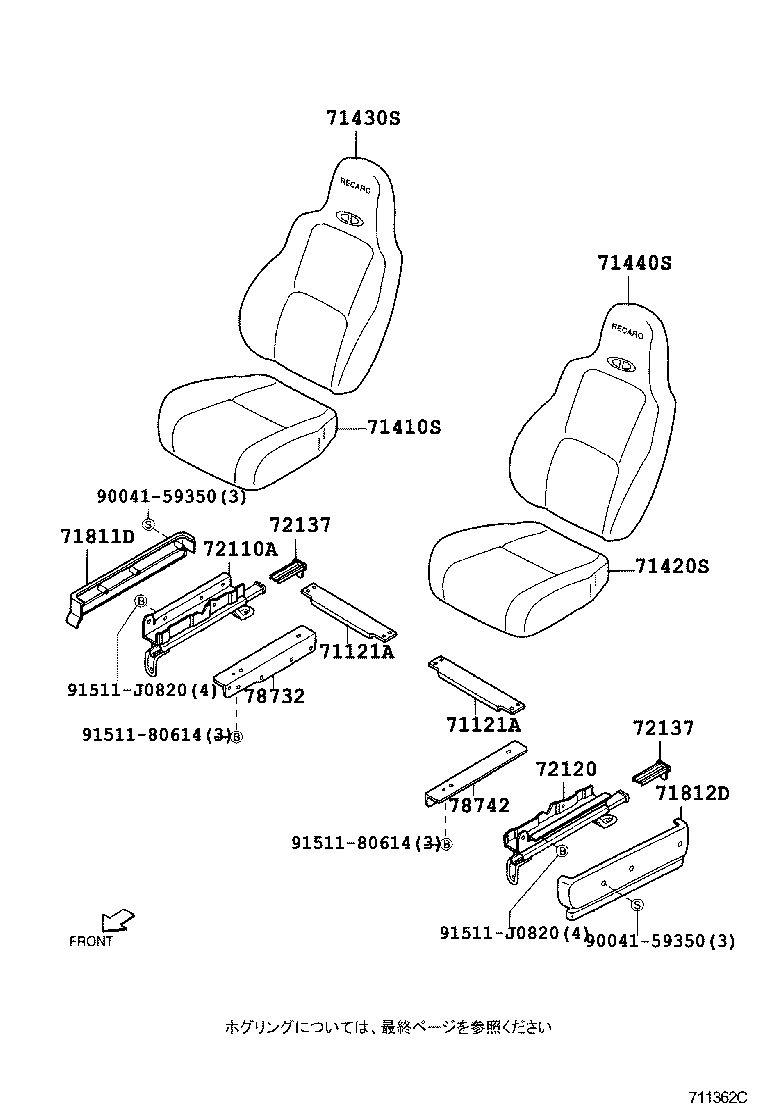

ILLUST NO. 1 OF 2(9809-0005)
ﾚｶﾛ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71121A - BRACKET, FRONT SEAT CUSHION, OUTER | ||||
| 71121-87705 |
M100,110..V ﾚｶﾛｼ-ﾄ |
2 | ||
| 71121A - BRACKET, FRONT SEAT CUSHION, OUTER | ||||
| 71121-87705 |
M100,110..V ﾚｶﾛｼ-ﾄ |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71510-9720103 |
M100,110..V DARK GRAY,TRIMS6 |
1 | ||
| 71510-9721303 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6) & ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),GRAY,TRIMS6 |
1 | ||
| 71510-9721103 |
M100,110..V ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ),GRAY,TRIMS6 |
1 | ||
| 71510-9720401 |
M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
1 | ||
| 71510-9721401 |
M100,110..V ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71510-9720303 |
M100,110..X DARK GRAY,TRIMS6 |
1 | ||
| 71510-9721203 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6),DARK GRAY,TRIMS6 |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71520-9720203 |
M100,110..X DARK GRAY,TRIMS6 |
1 | ||
| 71520-9720301 |
M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
1 | ||
| 71520-9721503 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6 |
1 | ||
| 71520-9720103 |
M100,110..V DARK GRAY,TRIMS6 |
1 | ||
| 71520-9721801 |
M100,110..V ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-9720103 |
M100,110..V DARK GRAY,TRIMS6 |
1 | ||
| 71430-9727003 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6) & ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71430-9723003 |
M100,110..4AT..X ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71430-9720901 |
M100,110..4AT..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
1 | ||
| 71430-9720503 |
M100,110..4AT..X DARK GRAY,TRIMS6 |
1 | ||
| 71430-9726001 |
M100,110..V ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71430-9724603 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6 |
1 | ||
| 71430-9725103 |
M100,110..4AT..X GRAY,TRIMS6 |
1 | ||
| 71430-9727103 |
M100,110..V ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71430-9724303 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FAS6),GRAY,TRIMS6 |
1 | ||
| 71430-9725601 |
M100,110..4AT..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71540-9726503 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6) & ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71540-9724603 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6),GRAY,TRIMS6 |
1 | ||
| 71540-9720203 |
M100,110..X DARK GRAY,TRIMS6 |
1 | ||
| 71540-9723103 |
M100,110..X ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71540-9724403 |
M100,110..V GRAY,TRIMS6 |
1 | ||
| 71540-9724803 |
M100,110..X GRAY,TRIMS6 |
1 | ||
| 71540-9720103 |
M100,110..V DARK GRAY,TRIMS6 |
1 | ||
| 71540-9726603 |
M100,110..V ｱﾘ(*80,ｻｲﾄﾞ),GRAY,TRIMS6 |
1 | ||
| 71540-9720501 |
M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
1 | ||
| 71540-9725701 |
M100,110..V ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71540-9725201 |
M100,110..X ﾗｸﾞｼﾞﾕｱﾘ- ﾊﾟﾂｹ-ｼﾞ,BLACK,TRIMS6 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-9720103 |
M100,110 DARK GRAY,TRIMS6 |
1 | ||
| 71811-9720701 |
M100,110..V ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-9720701 |
M100,110..V ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71812-9720103 |
M100,110 DARK GRAY,TRIMS6 |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-97202 |
M100,110..X |
1 | ||
| 72110-97202 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6) & ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ);ｼ-ﾄ ﾀｲﾌﾟ (FDS6) |
1 | ||
| 72110-97209 |
M100,110..V ﾚｶﾛｼ-ﾄ |
1 | ||
| 72110-97201 |
M100,110..V |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-97208 |
M100,110..V ﾚｶﾛｼ-ﾄ |
1 | ||
| 72120-97201 |
M100,110 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-97202 |
M100,110 |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-97202 |
M100,110 |
2 | ||
| 78732 - PLATE, FRONT SEAT CUSHION, NO.1 RH | ||||
| 78732-97201 |
M100,110..V ﾚｶﾛｼ-ﾄ |
1 | ||
| 78742 - PLATE, FRONT SEAT CUSHION, NO.1 LH | ||||
| 78742-97201 |
M100,110..V ﾚｶﾛｼ-ﾄ |
1 | ||
| Common parts | ||||
| 90041-59350 | ||||
| 91511-80614 | ||||
| 91511-J0820 | ||||

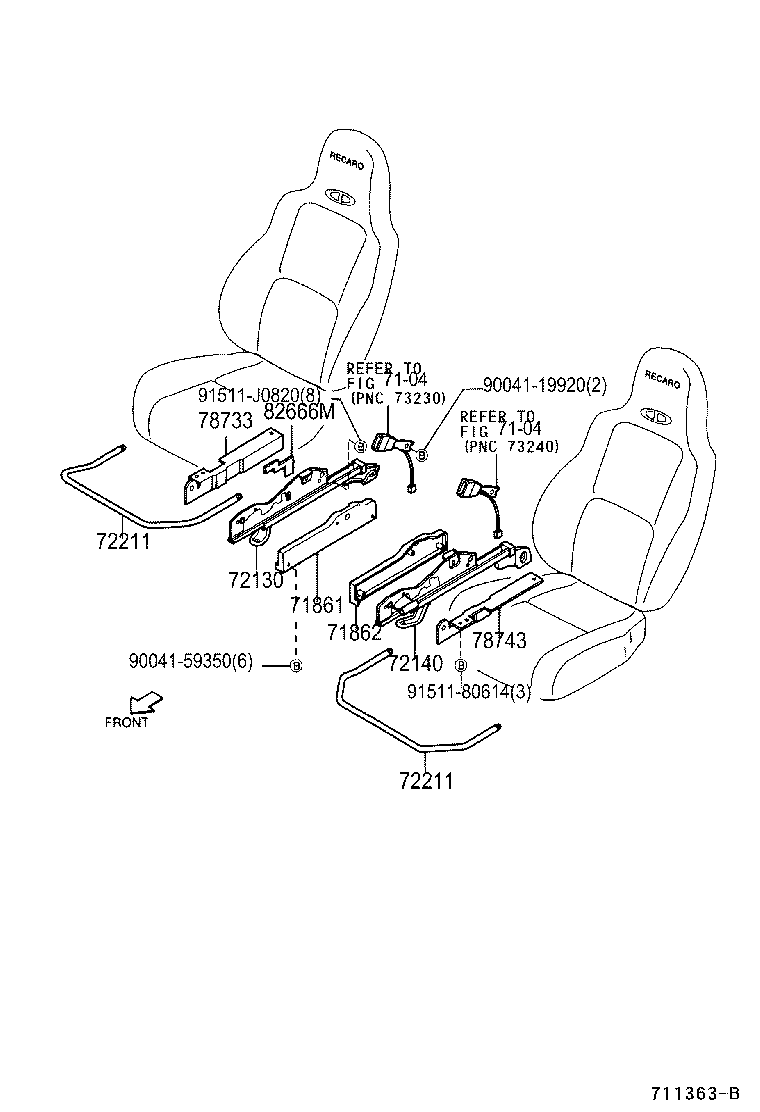

ILLUST NO. 2 OF 2(9809-0005)
ﾚｶﾛ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-9720401 |
M101..4ATS..VS;M100,110..V..LVVT ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 71861-9720103 |
M100,110 DARK GRAY,TRIMS6 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-9720103 |
M100,110 DARK GRAY,TRIMS6 |
1 | ||
| 71862-9720501 |
M101..4ATS..VS;M100,110..V..LVVT ﾚｶﾛｼ-ﾄ,BLACK,TRIMS6 |
1 | ||
| 72130 - TRACK ASSY, RH SEAT, INNER | ||||
| 72130-97205 |
M100,110..V ﾚｶﾛｼ-ﾄ |
1 | ||
| 72130-97202 |
M100,110..V ｼ-ﾄ ﾀｲﾌﾟ (FDS6) & ｱﾘ(ﾊﾞ-ﾁｶﾙ ｼ-ﾄ ｱｼﾞﾔｽﾀ);ｼ-ﾄ ﾀｲﾌﾟ (FDS6) |
1 | ||
| 72130-97201 |
M100,110..V |
1 | ||
| 72130-97202 |
M100,110..X |
1 | ||
| 72140 - TRACK ASSY, LH SEAT, INNER | ||||
| 72140-97205 |
M100,110..V ﾚｶﾛｼ-ﾄ |
1 | ||
| 72140-97201 |
M100,110 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-97201 |
M100,110 右側 |
2 | ||
| 72212-97201 |
M100,110 左側 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-97201 |
M100,110 右側 |
2 | ||
| 72212-97201 |
M100,110 左側 |
1 | ||
| 78733 - PLATE, FRONT SEAT CUSHION, NO.2 RH | ||||
| 78733-97201 |
M100,110..V ﾚｶﾛｼ-ﾄ |
1 | ||
| 78743 - PLATE, FRONT SEAT CUSHION, NO.2 LH | ||||
| 78743-97201 |
M100,110..V ﾚｶﾛｼ-ﾄ |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-87701 |
M100,110..V ﾚｶﾛｼ-ﾄ |
1 | ||
| Common parts | ||||
| 90041-19920 | ||||
| 90041-59350 | ||||
| 91511-80614 | ||||
| 91511-J0820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(9809- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
