M100A-GPGF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

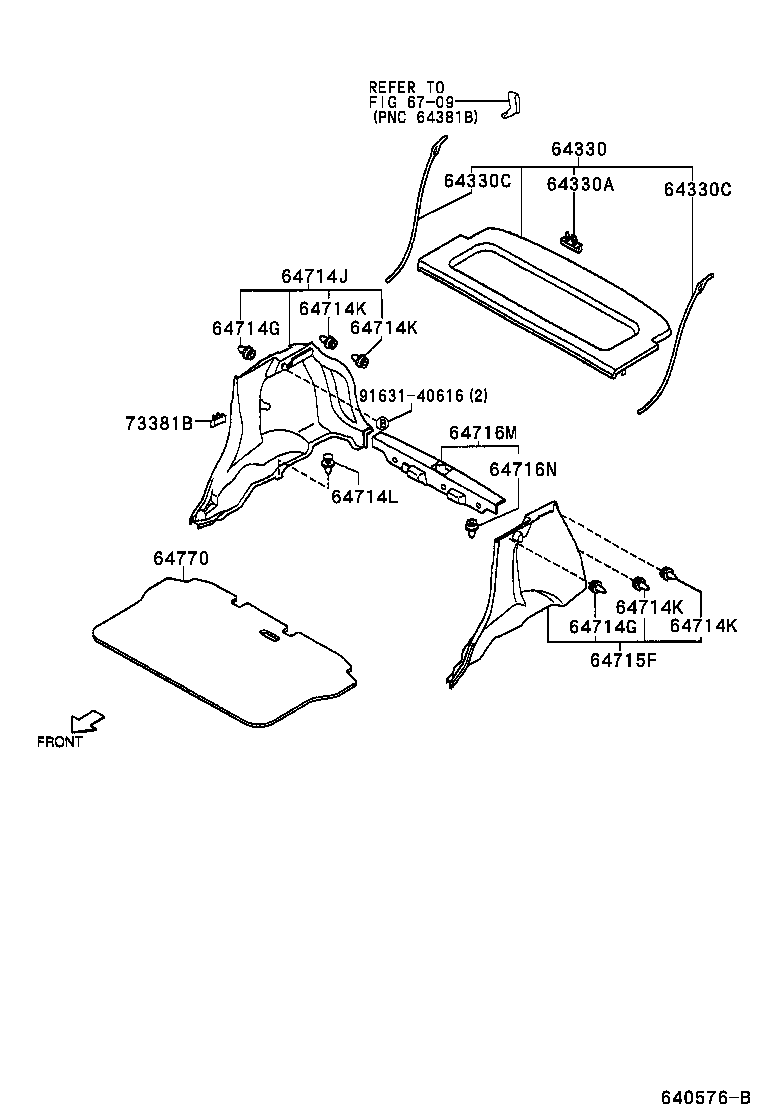

Click highlighted areas on diagram

diagram 64330 64330A 64330C 64330C 64714G 64714G 64714J 64714K 64714K 64714K 64714K 64714L 64715F 64716M 64716N 64770 6709 73381B 9163140616
Part # Description Qty Price
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-9720103

M10#,11#

DARK GRAY,TRIMS6,S8

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
64369-87704

M10#,11#

 2
64330C - HOOK(FOR PACKAGE TRAY TRIM PANEL)
64367-97201

M10#,11#

 2
64330C - HOOK(FOR PACKAGE TRAY TRIM PANEL)
64367-97201

M10#,11#

 2
64714G - CLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
90044-68284

M10#,11#

 2
64714G - CLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
90044-68284

M10#,11#

 2
64714J - COVER, DECK SIDE TRIM, RH
64714-9720103

M10#,11#

DARK GRAY,TRIMS6

 1
64714K - CLIP(FOR DECK TRIM SIDE COVER)
90044-68281

M10#,11#

 4
64714K - CLIP(FOR DECK TRIM SIDE COVER)
90044-68281

M10#,11#

 4
64714K - CLIP(FOR DECK TRIM SIDE COVER)
90044-68281

M10#,11#

 4
64714K - CLIP(FOR DECK TRIM SIDE COVER)
90044-68281

M10#,11#

 4
64714L - CLIP(FOR DECK TRIM SIDE COVER RH)
90044-68040F3

M10#,11#

DARK GRAY,TRIMS6

 6
64715F - COVER, DECK SIDE TRIM, LH
64715-9720103

M10#,11#

DARK GRAY,TRIMS6

 1
64716M - COVER, DECK TRIM, RH
64716-9720103

M10#,11#

DARK GRAY,TRIMS6

 1
64716N - CLIP(FOR DECK TRIM COVER)
90044-68284

M10#,11#

 4
64770 - COVER ASSY, SPARE WHEEL
64770-97201

M10#,11#

 1
73381B - HOLDER, REAR SEAT BELT
73381-8720213

M10#,11#

GRAY,TRIMS6

 2
Common parts
91631-40616
Linked diagrams
6709
