M100A-GPGF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )M100,110..4AT

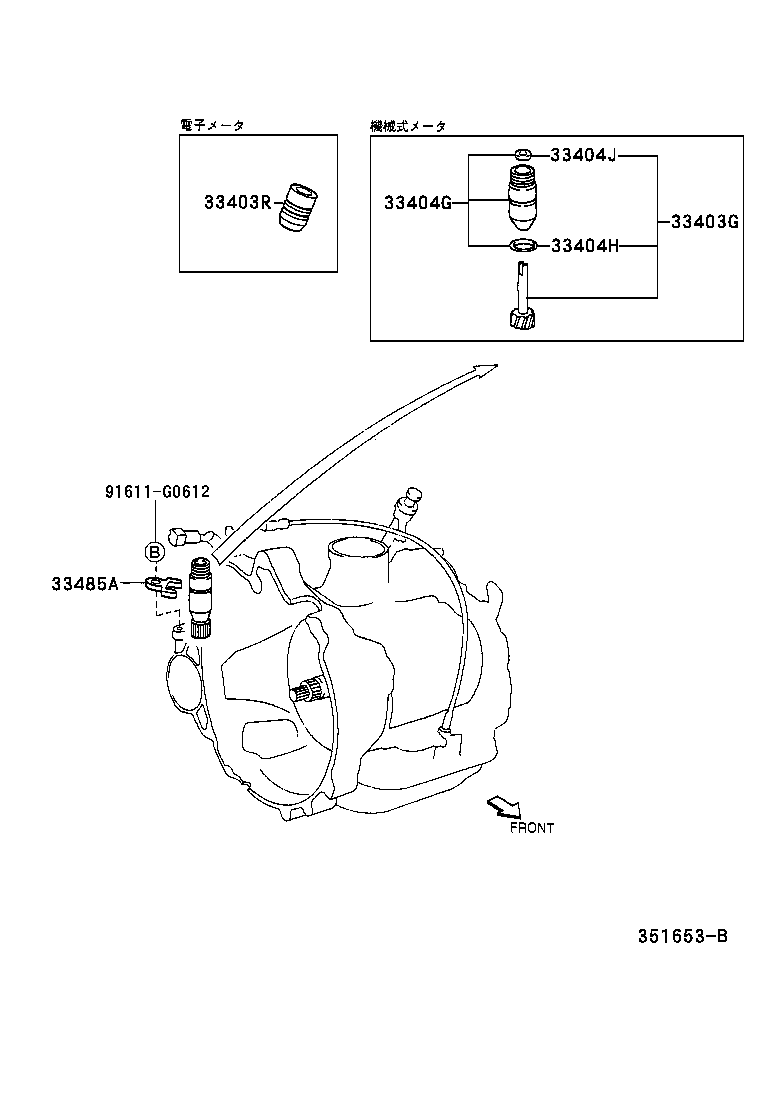

Click highlighted areas on diagram

diagram 33403G 33403R 33404G 33404H 33404J 33485A 91611G0612
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-87241

M100,110..4AT..V

 1
33403R - PLUG(FOR ATM SPEEDOMETER DRIVEN HOLE)
90043-39119

M100,110..4AT..LVVT;M100,110..4AT..X..WVVT

 1
33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33484-97205

M100,110..4AT..V

 1
33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
96721-24020

M100,110..4AT..V

 1
33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90043-13021

M100,110..4AT..V

 1
33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-97201

M100,110..4AT

 1
Common parts
91611-G0612
