M100A-GPGF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )EJ#

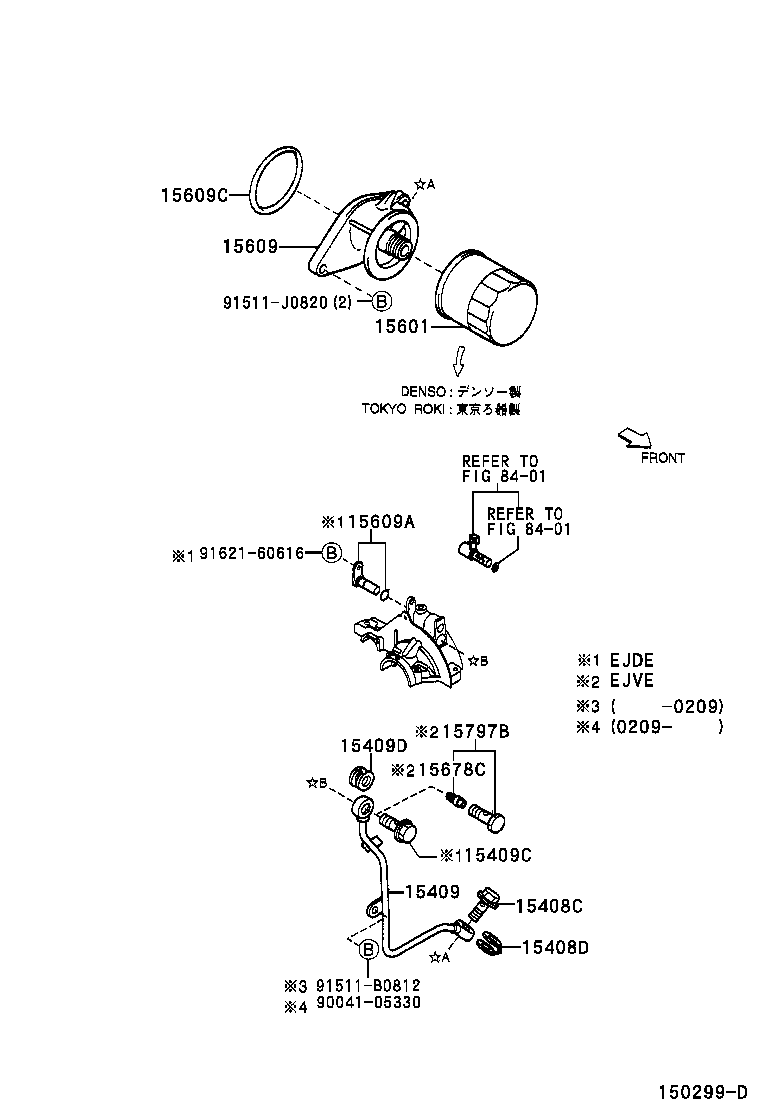

Click highlighted areas on diagram

diagram 15408C 15408D 15409 15409C 15409D 15601 15609 15609A 15609C 15678C 15797B 8401 8401 9004105330 91511B0812 91511J0820 9162160616
Part # Description Qty Price
15408C - BOLT, UNION(FOR OIL FILTER INLET PIPE)
90044-01082

EJ#..M100,110

 1
15408D - GASKET(FOR OIL FILTER INLET PIPE)
90044-30239

EJ#..M100,110

 1
15409 - PIPE OR HOSE, OIL FILTER OUTLET
15707-97203

EJDE..M100,110

 1
15409C - BOLT, UNION(FOR OIL FILTER OUTLET PIPE)
90044-01089

EJDE..M100,110

 1
15409D - GASKET(FOR OIL FILTER OUTLET PIPE)
90044-30258

EJ#..M100,110

 1
15601 - FILTER SUB-ASSY, OIL
15601-87204

K3VE,EJ#..M10#,11#

DENSO

 1
15601-87703

EJ#..M100,110

東京濾器

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15671-97201

EJ#..M100,110

 1
15609A - PLUG, TAPER SCREW(FOR OIL FILTER BRACKET)
90043-39115

EJDE..M100,110

 1
15609C - GASKET(FOR OIL FILTER BRACKET UNION)
90043-01141

K3VE,EJ#..M10#,11#

 1
Common parts
90041-05330
91511-B0812
91511-J0820
91621-60616
Linked diagrams
8401
