M100A-GPGE (2000)

Toyota Duet

Production May 2000 - May 2004
Engine EJVE
Transmission 4AT ATM
Displacement 2500cc
Power 168 HP (125 kW)

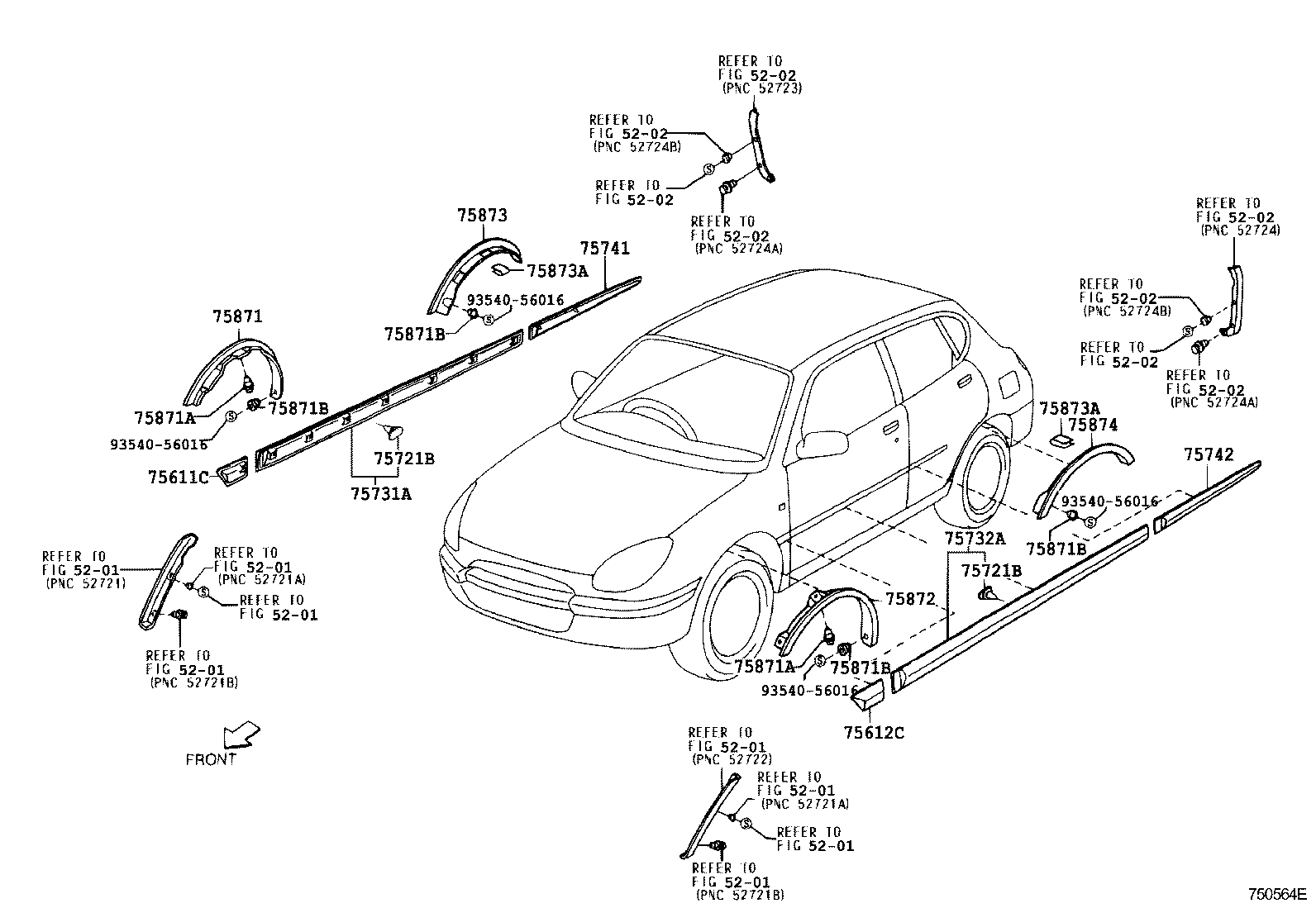

ILLUST NO. 1 OF 2(9809-0112)

Click highlighted areas on diagram

diagram 5201 5201 5201 5201 5201 5201 5201 5201 5202 5202 5202 5202 5202 5202 5202 5202 75611C 75612C 75721B 75721B 75731A 75732A 75741 75742 75871 75871A 75871A 75871B 75871B 75871B 75871B 75872 75873 75873A 75873A 75874 9354056016 9354056016 9354056016 9354056016
Part # Description Qty Price
75611C - MOULDING, FRONT FENDER, OUTSIDE RH
75611-97202

M10#,11#

ｸﾞﾚｰ

 1
75611-97201

M10#,11#

ﾒｯｷ

 1
75612C - MOULDING, FRONT FENDER, OUTSIDE LH
75612-97201

M10#,11#

ﾒｯｷ

 1
75612-97202

M10#,11#

ｸﾞﾚｰ

 1
75721B - CLIP(FOR FRONT DOOR BELT MOULDING SET)
90044-67344

M10#,11#

ｸﾞﾚｰ

 10
75721B - CLIP(FOR FRONT DOOR BELT MOULDING SET)
90044-67344

M10#,11#

ｸﾞﾚｰ

 10
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-97201

M10#,11#

ﾒｯｷ

 1
75731-97202

M10#,11#

ｸﾞﾚｰ

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-97202

M10#,11#

ｸﾞﾚｰ

 1
75732-97201

M10#,11#

ﾒｯｷ

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-97201

M10#,11#

ﾒｯｷ

 1
75741-97202

M10#,11#

ｸﾞﾚｰ

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-97202

M10#,11#

ｸﾞﾚｰ

 1
75742-97201

M10#,11#

ﾒｯｷ

 1
75871 - MOULDING, FRONT FENDER WHEEL OPENING, RH
75871-97201

M10#,11#

 1
75871A - CLIP (FOR FRONT FENDER MOULDING NO.1)
90044-68040F3

M10#,11#

DARK GRAY,B37 ,G36 ,G37 ,R27 ,S20 ,S21 ,S25 ,W09 ,W16 ,Y06

 6
75871A - CLIP (FOR FRONT FENDER MOULDING NO.1)
90044-68040F3

M10#,11#

DARK GRAY,B37 ,G36 ,G37 ,R27 ,S20 ,S21 ,S25 ,W09 ,W16 ,Y06

 6
75871B - CLIP (FOR FRONT FENDER MOULDING NO.2)
90041-89045

M10#,11#

 4
75871B - CLIP (FOR FRONT FENDER MOULDING NO.2)
90041-89045

M10#,11#

 4
75871B - CLIP (FOR FRONT FENDER MOULDING NO.2)
90041-89045

M10#,11#

 4
75871B - CLIP (FOR FRONT FENDER MOULDING NO.2)
90041-89045

M10#,11#

 4
75872 - MOULDING, FRONT FENDER WHEEL OPENING, LH
75872-97201

M10#,11#

 1
75873 - MOULDING, QUARTER PANEL WHEEL OPENING, RH
75873-97201

M10#,11#

 1
75873A - CLIP (FOR QUARTER OPENING MOULDING)
90044-64665

M10#,11#

 4
75873A - CLIP (FOR QUARTER OPENING MOULDING)
90044-64665

M10#,11#

 4
75874 - MOULDING, QUARTER PANEL WHEEL OPENING, LH
75874-97201

M10#,11#

 1
Common parts
93540-56016
Linked diagrams
5201
5202

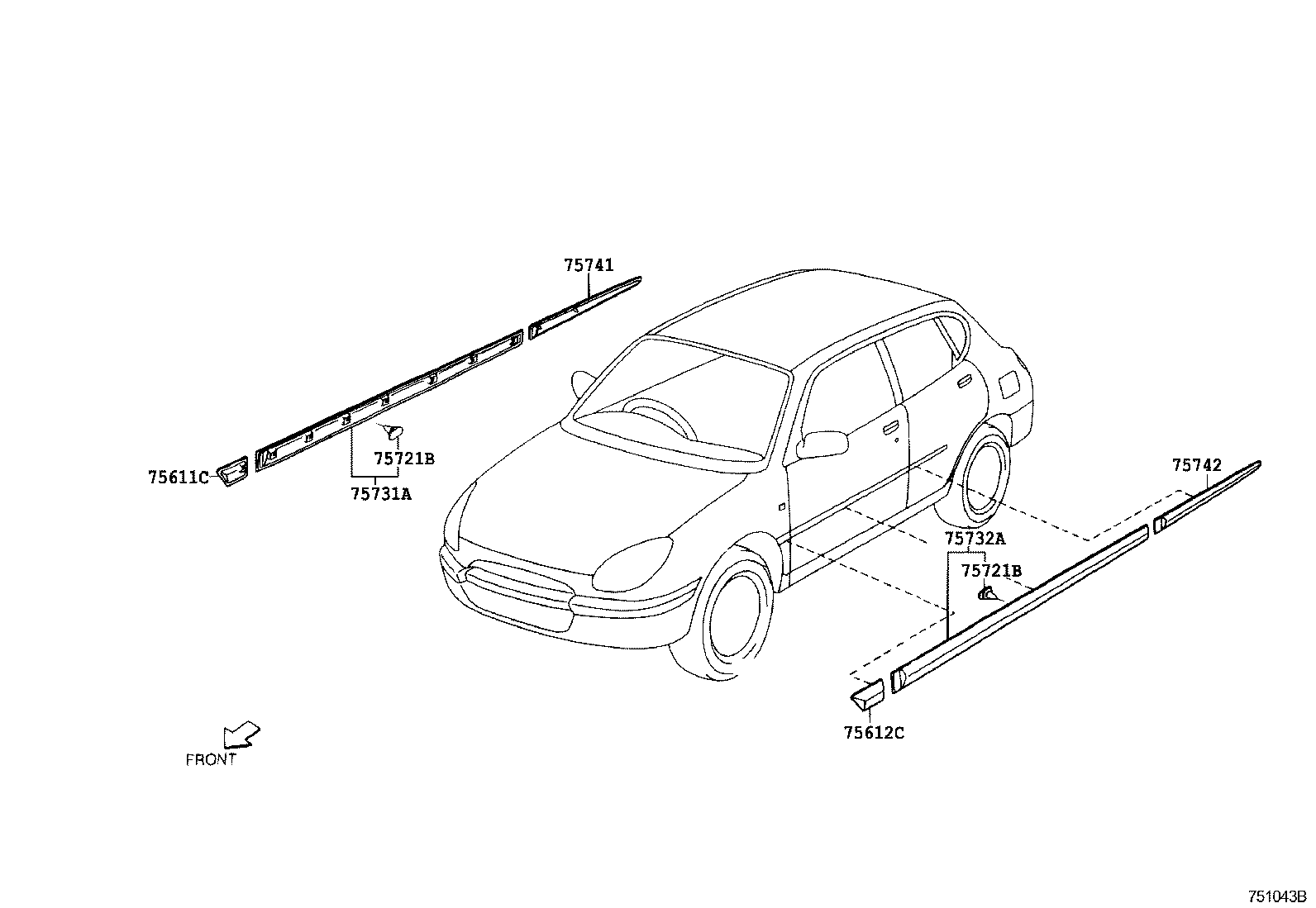

ILLUST NO. 1 OF 2(0112- )

Click highlighted areas on diagram

diagram 75611C 75612C 75721B 75721B 75731A 75732A 75741 75742
Part # Description Qty Price
75611C - MOULDING, FRONT FENDER, OUTSIDE RH
75611-97202

M10#,11#

ｸﾞﾚｰ

 1
75611-97201

M10#,11#

ﾒｯｷ

 1
75612C - MOULDING, FRONT FENDER, OUTSIDE LH
75612-97201

M10#,11#

ﾒｯｷ

 1
75612-97202

M10#,11#

ｸﾞﾚｰ

 1
75721B - CLIP(FOR FRONT DOOR BELT MOULDING SET)
90044-67344

M10#,11#

ｸﾞﾚｰ

 10
75721B - CLIP(FOR FRONT DOOR BELT MOULDING SET)
90044-67344

M10#,11#

ｸﾞﾚｰ

 10
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-97201

M10#,11#

ﾒｯｷ

 1
75731-97202

M10#,11#

ｸﾞﾚｰ

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-97202

M10#,11#

ｸﾞﾚｰ

 1
75732-97201

M10#,11#

ﾒｯｷ

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-97201

M10#,11#

ﾒｯｷ

 1
75741-97202

M10#,11#

ｸﾞﾚｰ

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-97202

M10#,11#

ｸﾞﾚｰ

 1
75742-97201

M10#,11#

ﾒｯｷ

 1
