M100A-GMNF (1998)

Toyota Duet

Production Sep 1998 - May 2000
Engine EJDE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9809- )

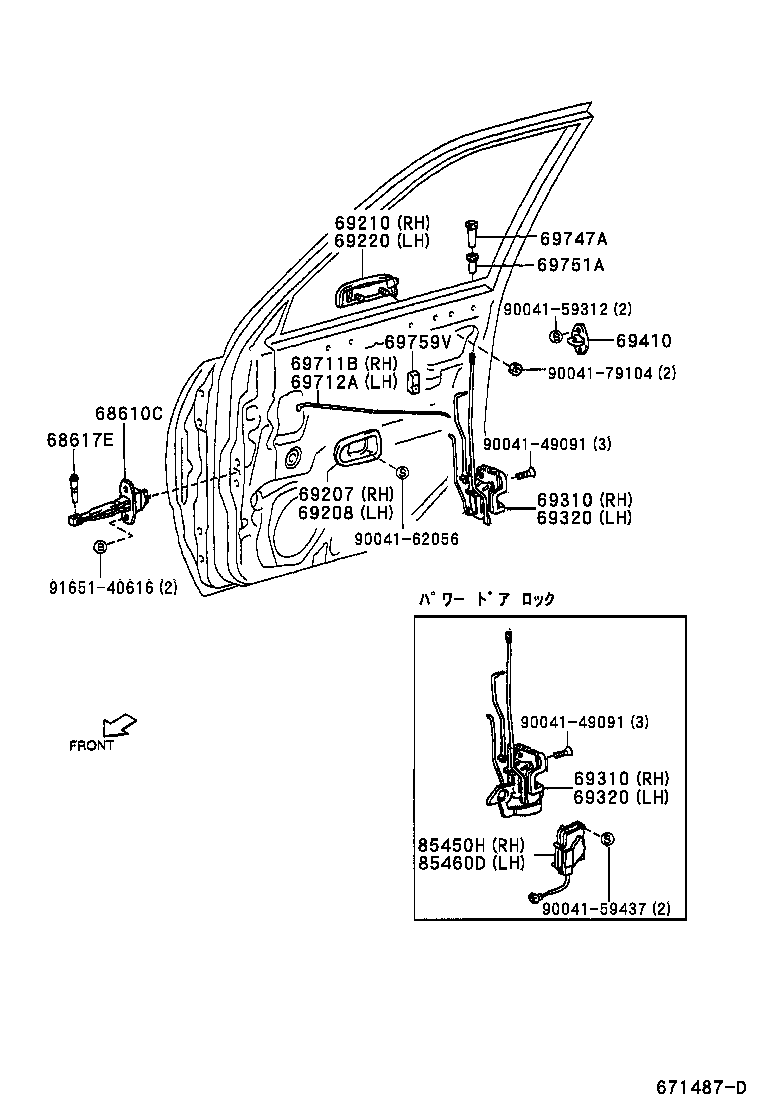

Click highlighted areas on diagram

diagram 68610C 68617E 69207 69208 69210 69220 69310 69310 69320 69320 69410 69711B 69712A 69747A 69751A 69759V 85450H 85460D 9004149091 9004149091 9004159312 9004159437 9004162056 9004179104 9165140616
Part # Description Qty Price
68610C - CHECK ASSY, FRONT DOOR
68610-97201

M10#,11#

 2
68617E - PIN, FRONT DOOR CHECK
68617-87204

M10#,11#

 2
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69270-8770733

M10#,11#..V,VS

DARK GRAY,TRIMS6,S8

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69280-8770733

M10#,11#..V,VS

DARK GRAY,TRIMS6,S8

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-9720213

M100,110

GRAYISH SEPIA ME.,S21

 1
69210-97201

M100,110..V

ﾌﾞﾗﾂｸ

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-9720213

M100,110

GRAYISH SEPIA ME.,S21

 1
69220-97201

M100,110..V

ﾌﾞﾗﾂｸ

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-97201

M100,110..V

ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B) OR ｱｼｽﾀﾊﾟﾂｹ-ｼﾞ*(D) OR ﾘﾄﾙﾊﾟﾂｹ-ｼﾞ

 1
69301-97201

M10#,11#

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-97201

M100,110..V

ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B) OR ｱｼｽﾀﾊﾟﾂｹ-ｼﾞ*(D) OR ﾘﾄﾙﾊﾟﾂｹ-ｼﾞ

 1
69301-97201

M10#,11#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-97201

M100,110..V

ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B) OR ｱｼｽﾀﾊﾟﾂｹ-ｼﾞ*(D) OR ﾘﾄﾙﾊﾟﾂｹ-ｼﾞ

 1
69302-97201

M10#,11#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-97201

M100,110..V

ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ*(B) OR ｱｼｽﾀﾊﾟﾂｹ-ｼﾞ*(D) OR ﾘﾄﾙﾊﾟﾂｹ-ｼﾞ

 1
69302-97201

M10#,11#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87202

M10#,11#

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-97201

M10#,11#

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-97201

M10#,11#

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69747-8770313

M10#,11#

DARK GRAY,TRIMS6,S8

 2
69751A - HOLDER, DOOR LOCKING(FOR FRONT DOOR)
69751-9720103

M10#,11#

GRAY,TRIMS6,S8

 2
69759V - SILENCER, FRONT DOOR LOCK LINK
69759-87207

M10#,11#

 2
85450H - MOTOR ASSY, DOOR CONTROL, FRONT RH
85450-97201

M10#,11#

 1
85460D - MOTOR ASSY, DOOR CONTROL, FRONT LH
85460-97201

M10#,11#

 1
Common parts
90041-49091
90041-59312
90041-59437
90041-62056
90041-79104
91651-40616
