M100A-GMNE (2000)
Toyota Duet
Production
May 2000
-
May 2004
Engine
EJVE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

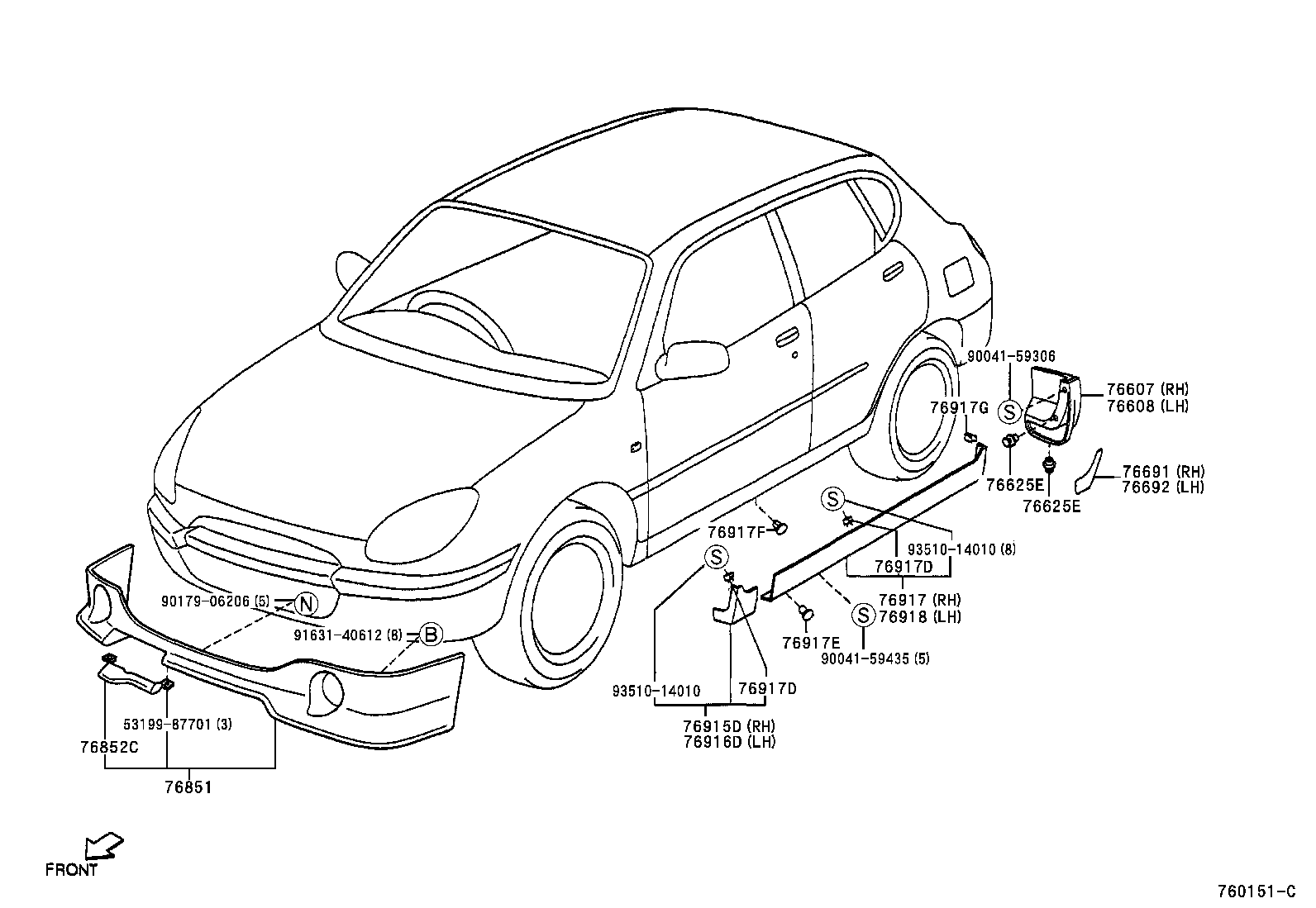

ILLUST NO. 1 OF 2(9809-0112)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-97201 |
M100,110 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-97201 |
M100,110 |
1 | ||
| 76691 - PROTECTOR, QUARTER PANEL, REAR RH | ||||
| 76691-97201 |
M10#..V,X ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 76692 - PROTECTOR, QUARTER PANEL, REAR LH | ||||
| 76692-97201 |
M10#..V,X ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 76915D - MUDGUARD, SIDE, FRONT RH | ||||
| 53847-97201 |
M10#,11# |
1 | ||
| 76916D - MUDGUARD, SIDE, FRONT LH | ||||
| 53848-97201 |
M10#,11# |
1 | ||
| 76917 - MUDGUARD, SIDE, REAR RH | ||||
| 61795-97201 |
M10#,11# |
1 | ||
| 76917D - CLIP | ||||
| 90044-68299 |
M10#,11# |
18 | ||
| 76917D - CLIP | ||||
| 90044-68299 |
M10#,11# |
18 | ||
| 76917E - CLIP | ||||
| 90044-68210 |
M10#,11# |
2 | ||
| 76917F - PLUG, HOLE | ||||
| 90048-71259 |
M100,110 |
14 | ||
| 90048-71292 |
M10#,11#..V,X |
14 | ||
| 76917G - CLAMP | ||||
| 90044-64091 |
M10#,11# |
2 | ||
| 76918 - MUDGUARD, SIDE, REAR LH | ||||
| 61796-97201 |
M10#,11# |
1 | ||
| Common parts | ||||
| 53199-87701 | ||||
| 90041-59306 | ||||
| 90041-59435 | ||||
| 90179-06206 | ||||
| 91631-40612 | ||||
| 93510-14010 | ||||
ILLUST NO. 1 OF 2(0112- )V,X
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76691 - PROTECTOR, QUARTER PANEL, REAR RH | ||||
| 76691-97201 |
M10#..V,X ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 76692 - PROTECTOR, QUARTER PANEL, REAR LH | ||||
| 76692-97201 |
M10#..V,X ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 76917F - PLUG, HOLE | ||||
| 90048-71259 |
M100,110 |
14 | ||
| 90048-71292 |
M10#,11#..V,X |
14 | ||
