EL54-DCPVH (1995)

Toyota Cynos

Production Aug 1995 - Jul 1999
Engine 5EFHE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

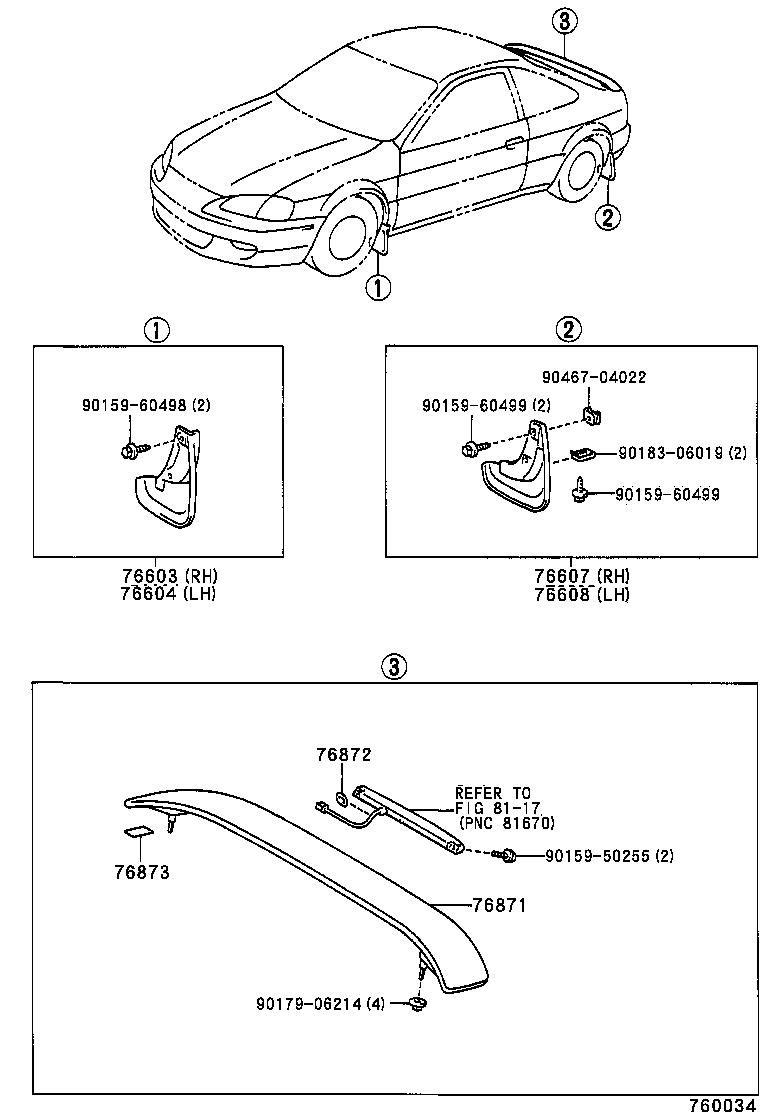

Click highlighted areas on diagram

diagram 76603 76604 76607 76608 76871 76872 76873 8117 9015950255 9015960498 9015960499 9015960499 9017906214 9018306019 9046704022
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-19265

EL5#

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-19265

EL5#

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-19565

EL5#

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-19565

EL5#

 1
76871 - SPOILER, REAR
76871-16902

EL5#

 1
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-16070

EL5#

 2
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-16080

EL5#

 2
Common parts
90159-50255
90159-60498
90159-60499
90179-06214
90183-06019
90467-04022
Linked diagrams
8117
