EL54-DCMVH (1995)

Toyota Cynos

Production Aug 1995 - Jul 1999
Engine 5EFHE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

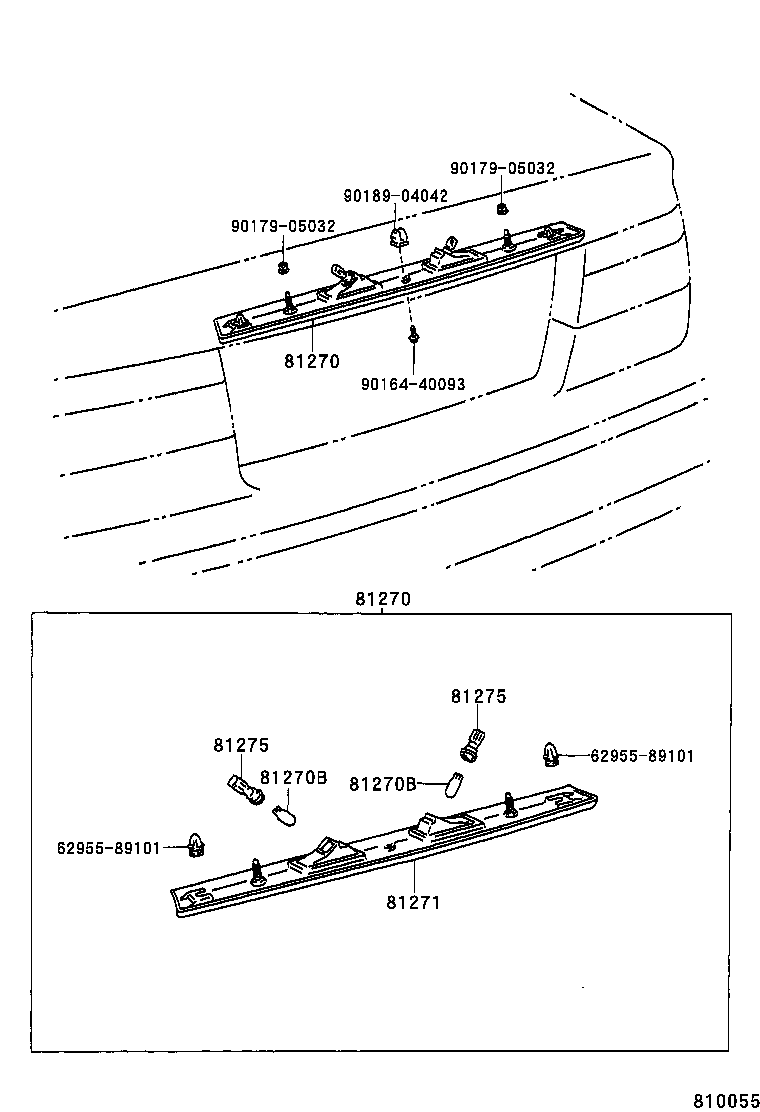

Click highlighted areas on diagram

diagram 6295589101 6295589101 81270 81270 81270B 81270B 81271 81275 81275 9016440093 9017905032 9017905032 9018904042
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-16280

EL5#

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-16280

EL5#

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

EL5#

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

EL5#

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-16280

EL5#

 1
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
90075-99011

EL5#

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
90075-99011

EL5#

 2
Common parts
62955-89101
90164-40093
90179-05032
90189-04042
