EL52C-DKKDK (1996)

Toyota Cynos

Production Oct 1996 - Feb 1998
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508-9712)4EFE ; (9508- )5EFHE

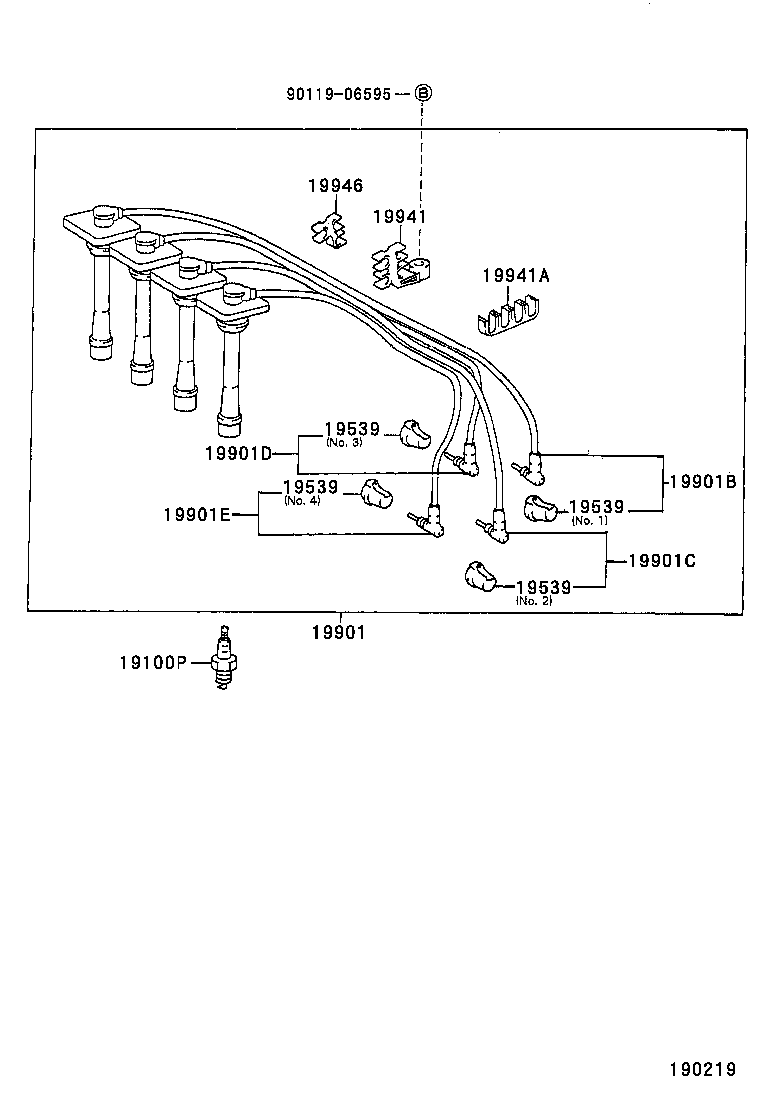

Click highlighted areas on diagram

diagram 19100P 19539 19539 19539 19539 19901 19901B 19901C 19901D 19901E 19941 19941A 19946 9011906595
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01164

4EFE..EL52

K16R−U11

 4
90919-01164

4EFE..EL52..CVT

K16R−U11

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-11030

4EFE,5EFHE..EL5#

NO.3,4

 2
19539-11020

4EFE,5EFHE..EL5#

NO.1,2

 2
19539-11020

5EFHE..EL54;4EFE..EL52..CVT

NO.1,2

 2
19539-11030

5EFHE..EL54;4EFE..EL52..CVT

NO.3,4

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-11030

4EFE,5EFHE..EL5#

NO.3,4

 2
19539-11020

4EFE,5EFHE..EL5#

NO.1,2

 2
19539-11020

5EFHE..EL54;4EFE..EL52..CVT

NO.1,2

 2
19539-11030

5EFHE..EL54;4EFE..EL52..CVT

NO.3,4

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-11030

4EFE,5EFHE..EL5#

NO.3,4

 2
19539-11020

4EFE,5EFHE..EL5#

NO.1,2

 2
19539-11020

5EFHE..EL54;4EFE..EL52..CVT

NO.1,2

 2
19539-11030

5EFHE..EL54;4EFE..EL52..CVT

NO.3,4

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-11030

4EFE,5EFHE..EL5#

NO.3,4

 2
19539-11020

4EFE,5EFHE..EL5#

NO.1,2

 2
19539-11020

5EFHE..EL54;4EFE..EL52..CVT

NO.1,2

 2
19539-11030

5EFHE..EL54;4EFE..EL52..CVT

NO.3,4

 2
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22373

4EFE,5EFHE..EL5#

 1
90919-22373

5EFHE..EL54;4EFE..EL52..CVT

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15423

4EFE,5EFHE..EL5#

 1
90919-15423

5EFHE..EL54;4EFE..EL52..CVT

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15424

4EFE,5EFHE..EL5#

 1
90919-15424

5EFHE..EL54;4EFE..EL52..CVT

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15425

5EFHE..EL54;4EFE..EL52..CVT

 1
90919-15425

4EFE,5EFHE..EL5#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15202

5EFHE..EL54;4EFE..EL52..CVT

 1
90919-15202

4EFE,5EFHE..EL5#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01258

4EFE,5EFHE..EL5#

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90464-00559

4EFE,5EFHE..EL5#

 1
90464-00559

5EFHE..EL54;4EFE..EL52..CVT

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00561

4EFE,5EFHE..EL5#

 1
Common parts
90119-06595

(9712- )4EFE

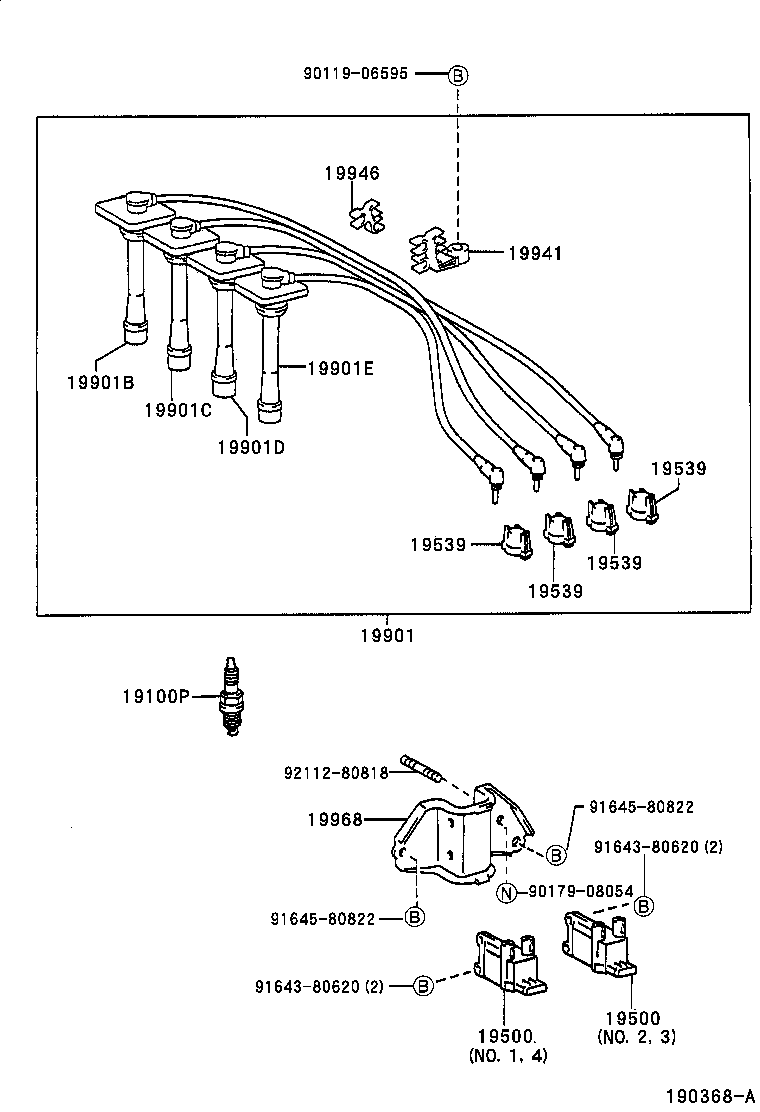

Click highlighted areas on diagram

diagram 19100P 19500 19500 19539 19539 19539 19539 19901 19901B 19901C 19901D 19901E 19941 19946 19968 9011906595 9017908054 9164380620 9164380620 9164580822 9164580822 9211280818
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01164

4EFE..EL52

K16R−U11

 4
90919-01164

4EFE..EL52..CVT

K16R−U11

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-11030

4EFE,5EFHE..EL5#

NO.3,4

 2
19539-11020

4EFE,5EFHE..EL5#

NO.1,2

 2
19539-11020

5EFHE..EL54;4EFE..EL52..CVT

NO.1,2

 2
19539-11030

5EFHE..EL54;4EFE..EL52..CVT

NO.3,4

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-11030

4EFE,5EFHE..EL5#

NO.3,4

 2
19539-11020

4EFE,5EFHE..EL5#

NO.1,2

 2
19539-11020

5EFHE..EL54;4EFE..EL52..CVT

NO.1,2

 2
19539-11030

5EFHE..EL54;4EFE..EL52..CVT

NO.3,4

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-11030

4EFE,5EFHE..EL5#

NO.3,4

 2
19539-11020

4EFE,5EFHE..EL5#

NO.1,2

 2
19539-11020

5EFHE..EL54;4EFE..EL52..CVT

NO.1,2

 2
19539-11030

5EFHE..EL54;4EFE..EL52..CVT

NO.3,4

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-11030

4EFE,5EFHE..EL5#

NO.3,4

 2
19539-11020

4EFE,5EFHE..EL5#

NO.1,2

 2
19539-11020

5EFHE..EL54;4EFE..EL52..CVT

NO.1,2

 2
19539-11030

5EFHE..EL54;4EFE..EL52..CVT

NO.3,4

 2
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22373

4EFE,5EFHE..EL5#

 1
90919-22373

5EFHE..EL54;4EFE..EL52..CVT

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15423

4EFE,5EFHE..EL5#

 1
90919-15423

5EFHE..EL54;4EFE..EL52..CVT

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15424

4EFE,5EFHE..EL5#

 1
90919-15424

5EFHE..EL54;4EFE..EL52..CVT

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15425

5EFHE..EL54;4EFE..EL52..CVT

 1
90919-15425

4EFE,5EFHE..EL5#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15202

5EFHE..EL54;4EFE..EL52..CVT

 1
90919-15202

4EFE,5EFHE..EL5#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01258

4EFE,5EFHE..EL5#

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00561

4EFE,5EFHE..EL5#

 1
Common parts
90119-06595
90179-08054
91643-80620
91645-80822
92112-80818
