EL52-DCHDK (1995)

Toyota Cynos

Production Aug 1995 - Jul 1999
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

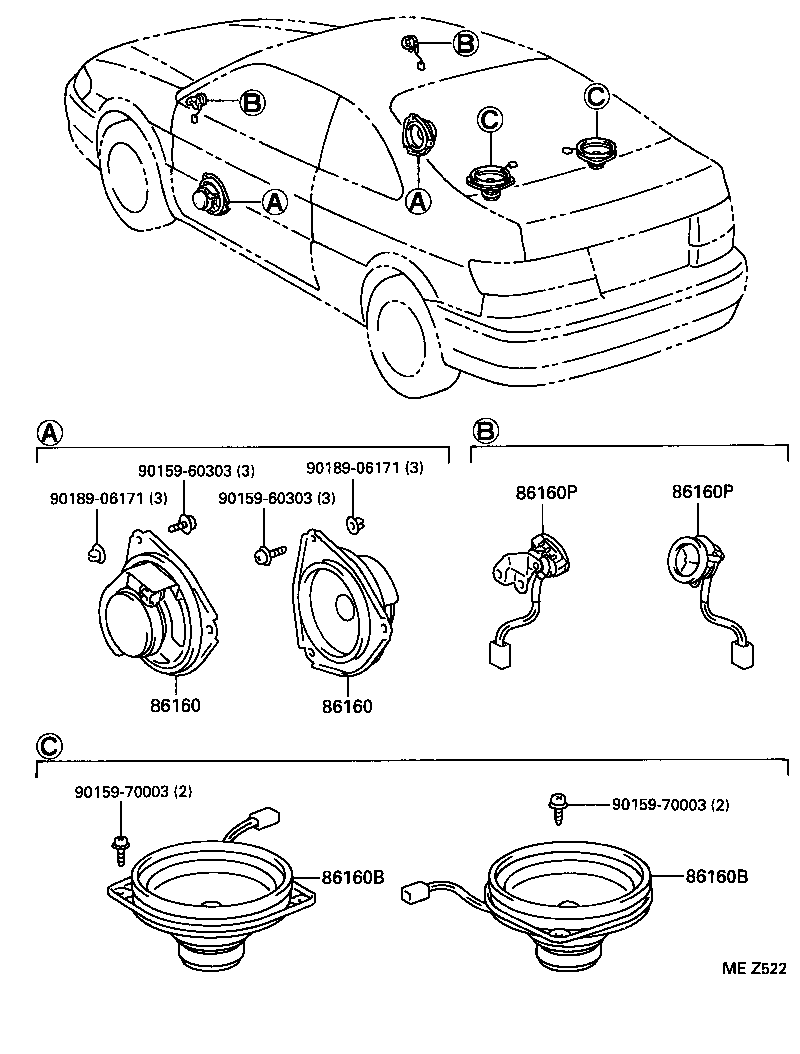

Click highlighted areas on diagram

diagram 86160 86160 86160B 86160B 86160P 86160P 9015960303 9015960303 9015970003 9015970003 9018906171 9018906171
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-16290

EL5#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-16290

EL5#

 2
86160B - SPEAKER ASSY, REAR
86160-16301

EL5#..CP

 2
86160B - SPEAKER ASSY, REAR
86160-16301

EL5#..CP

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-16320

EL5#

左側

 1
86160-16310

EL5#

右側

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-16320

EL5#

左側

 1
86160-16310

EL5#

右側

 1
Common parts
90159-60303
90159-70003
90189-06171
