EL52-DCHDK (1995)
Toyota Cynos

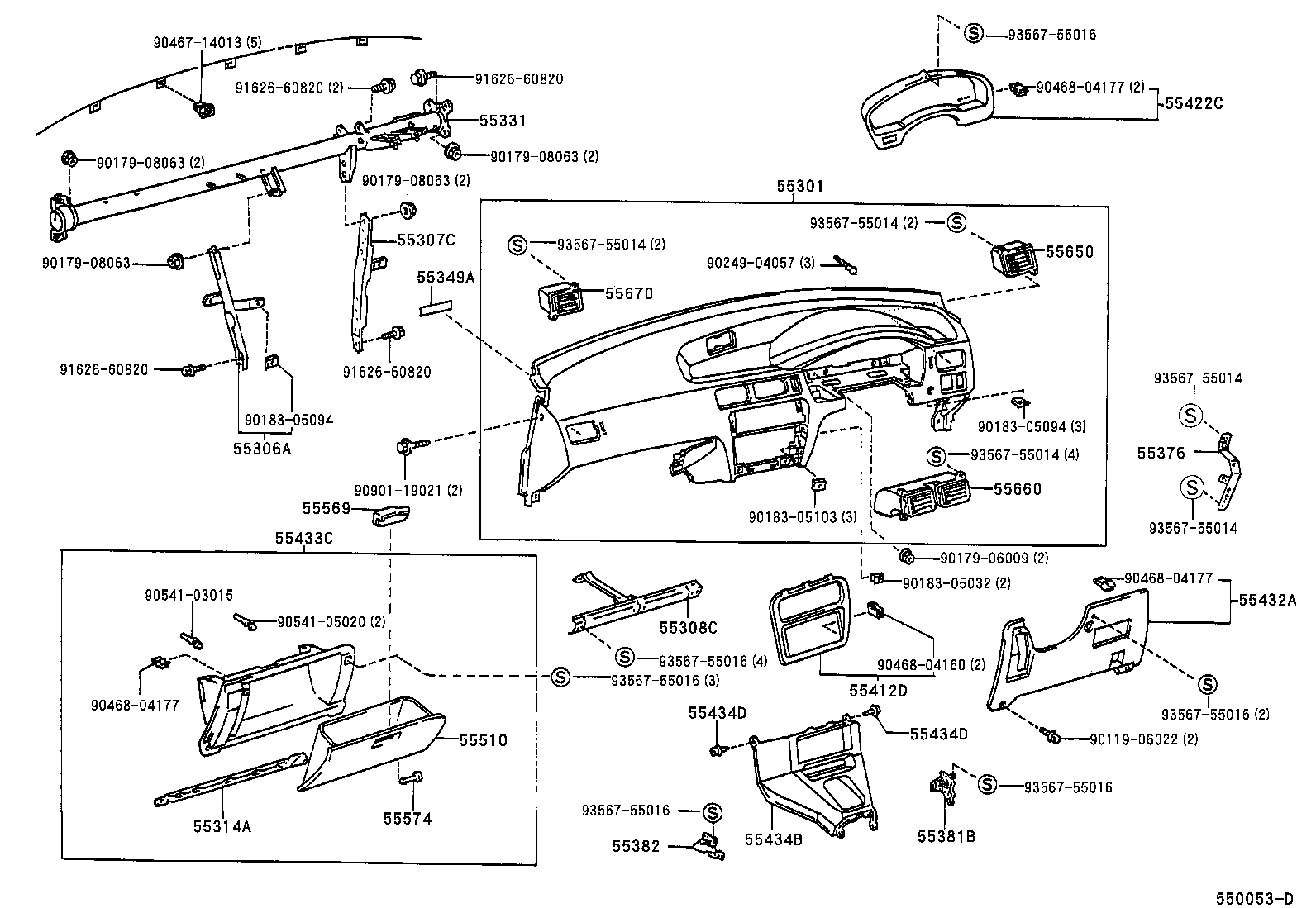

ILLUST NO. 1 OF 2(9508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-16150B1 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55301-16140B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55301-16120B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-16110 |
EL5# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-16110 |
EL5# |
1 | ||
| 55307-16120 |
EL5# |
1 | ||
| 55307-16120 |
EL5#..CP |
1 | ||
| 55307-16130 |
EL5# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-16060 |
EL5#..CP |
1 | ||
| 55314A - PANEL, INSTRUMENT, LOWER CENTER | ||||
| 55314-16030 |
EL5# |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-16210 |
EL5# |
1 | ||
| 55330-16160 |
EL5# |
1 | ||
| 55330-16171 |
EL5# |
1 | ||
| 55330-16210 |
EL5#..CP |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-16040 |
EL5# |
2 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-16050 |
EL5# |
1 | ||
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55381-16040 |
EL5# |
1 | ||
| 55382 - BRACKET, FINISH PANEL MOUNTING, NO.2 | ||||
| 55382-16040 |
EL5# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-16150B0 |
EL5#..CP GRAY,TRIM1# |
1 | ||
| 55412-16110 |
EL5# |
1 | ||
| 55412-16150B0 |
EL5# GRAY,TRIM1# |
1 | ||
| 55412-16130B1 |
EL52..CP SHADOW GRAY,TRIM1# |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-16090B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55422-16060 |
EL5# |
1 | ||
| 55422-16090B0 |
EL5#..CP SHADOW GRAY,TRIM1# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55432-16140B2 |
EL5# MD.GRAY,TRIM1# |
1 | ||
| 55432-16140B1 |
EL5#..CP SHADOW GRAY,TRIM1# |
1 | ||
| 55432-16140B1 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55432-16150B1 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55045-16050B1 |
EL5#..CP SHADOW GRAY,TRIM1# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-16050B1 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 90467-07071B4 |
EL5# SHADOW GRAY,TRIM1# |
2 | ||
| 55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 90467-07071B4 |
EL5# SHADOW GRAY,TRIM1# |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-16110B1 |
EL5#..CP SHADOW GRAY,TRIM1# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
EL5# |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-16080B2 |
EL5# GRAY,TRIM1# |
1 | ||
| 55650-16080B1 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55650-16100B1 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55650-16100B1 |
EL5#..CP SHADOW GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-16070B1 |
EL5#..CP SHADOW GRAY,TRIM1# |
1 | ||
| 55660-16050B2 |
EL5#..CP GRAY,TRIM1# |
1 | ||
| 55660-16050B1 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-16050B1 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55670-16050B2 |
EL5# GRAY,TRIM1# |
1 | ||
| 55670-16070B1 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55670-16070B1 |
EL5#..CP SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90179-06009 | ||||
| 90179-08063 | ||||
| 90183-05032 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90249-04057 | ||||
| 90467-14013 | ||||
| 90468-04160 | ||||
| 90468-04177 | ||||
| 90541-03015 | ||||
| 90541-05020 | ||||
| 90901-19021 | ||||
| 91626-60820 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||

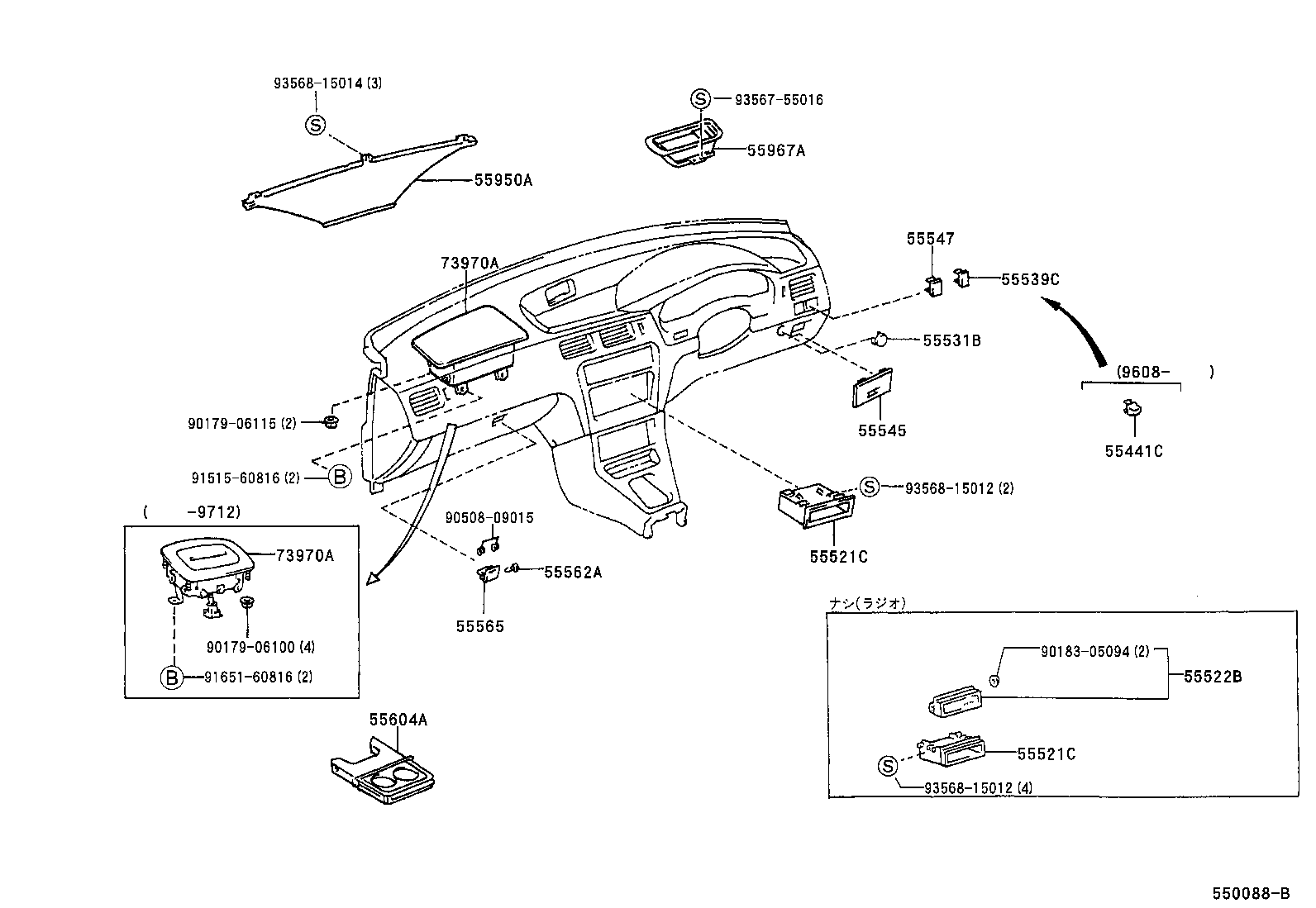

ILLUST NO. 2 OF 2(9508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-20140B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
EL5# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
EL5# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-20070 |
EL5# |
1 | ||
| 55531B - COVER, CHOKE KNOB HOLE | ||||
| 55617-10010B1 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55539-16060B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55539-16060B0 |
EL5#..CP SHADOW GRAY,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-16040B1 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-16171B1 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55545-16170B1 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-20030B1 |
EL52 SHADOW GRAY,TRIM1# |
1 | ||
| 55547-20030B1 |
EL5#..CP SHADOW GRAY,TRIM1# |
1 | ||
| 55547-20030B1 |
EL52..CP SHADOW GRAY,TRIM1# |
1 | ||
| 55562A - LINK, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-10010 |
EL5#..CP |
2 | ||
| 55562-10010 |
EL5# |
1 | ||
| 55562-10010 |
EL5# |
2 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-16010B1 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-16041C0 |
EL5# BLACK,TRIM1# |
1 | ||
| 55604-16041 |
EL5# |
1 | ||
| 55604-16041C0 |
EL5#..CP BLACK,TRIM1# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-16060 |
EL5# |
1 | ||
| 55967A - NOZZLE, DEFROSTER, LOWER | ||||
| 55967-16040 |
EL5# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-16020B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 73970-16030B0 |
EL5#..CP SHADOW GRAY,TRIM1# |
1 | ||
| 73970-16030B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-16020B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| 73970-16030B0 |
EL5#..CP SHADOW GRAY,TRIM1# |
1 | ||
| 73970-16030B0 |
EL5# SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90179-06100 | ||||
| 90179-06115 | ||||
| 90183-05094 | ||||
| 90508-09015 | ||||
| 91515-60816 | ||||
| 91651-60816 | ||||
| 93567-55016 | ||||
| 93568-15012 | ||||
| 93568-15014 | ||||
