EL44-DCMVH (1991)
Toyota Cynos
Production
Jan 1991
-
Aug 1995
Engine
5EFHE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9101- )

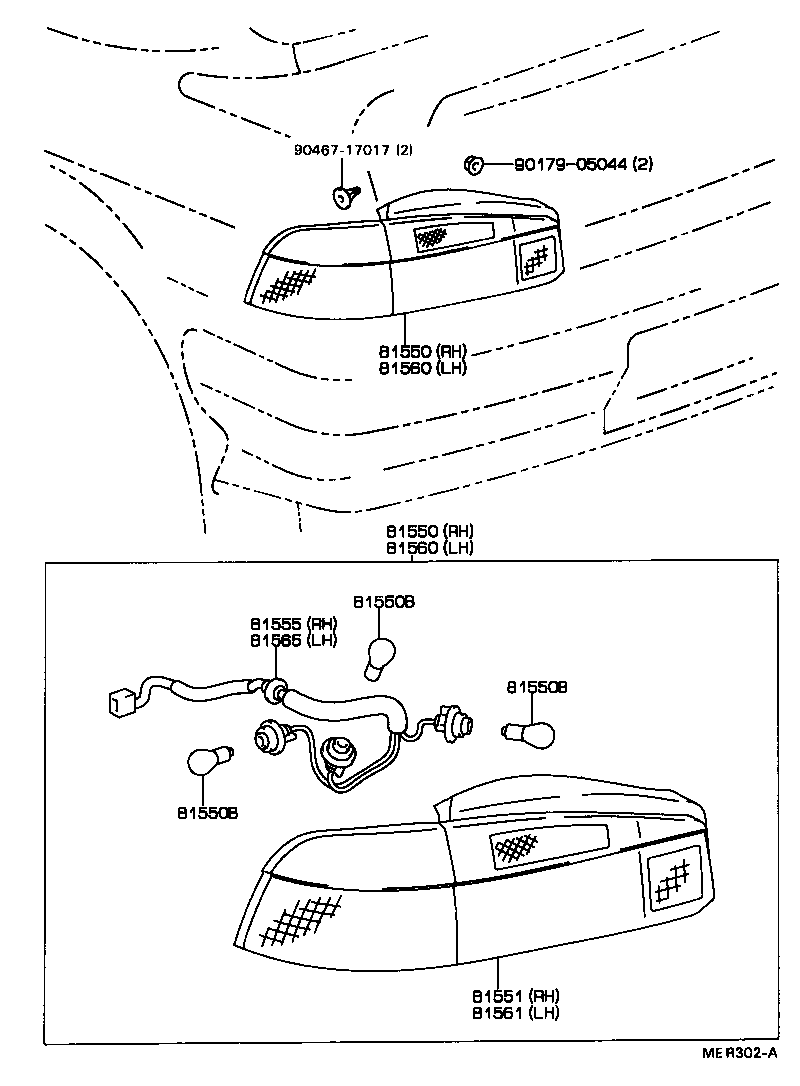

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-16440 |
EL44 |
1 | ||
| 81550-16441 |
EL44 |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-16440 |
EL44 |
1 | ||
| 81550-16441 |
EL44 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
EL44 12V 21/5W |
2 | ||
| 99132-11210 |
EL44 12V 21W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
EL44 12V 21/5W |
2 | ||
| 99132-11210 |
EL44 12V 21W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
EL44 12V 21/5W |
2 | ||
| 99132-11210 |
EL44 12V 21W |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-16440 |
EL44 |
1 | ||
| 81551-16441 |
EL44 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-16441 |
EL44 |
1 | ||
| 81555-16440 |
EL44 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-16481 |
EL44 |
1 | ||
| 81560-16480 |
EL44 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-16481 |
EL44 |
1 | ||
| 81560-16480 |
EL44 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-16481 |
EL44 |
1 | ||
| 81561-16480 |
EL44 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-16441 |
EL44 |
1 | ||
| 81555-16440 |
EL44 |
1 | ||
| Common parts | ||||
| 90179-05044 | ||||
| 90467-17017 | ||||
