8714 - HEATING & AIR CONDITIONING - COOLER UNIT

EL44-DCMSK (1991)

Toyota Cynos

Production Jan 1991 - Aug 1995

Engine 5EFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

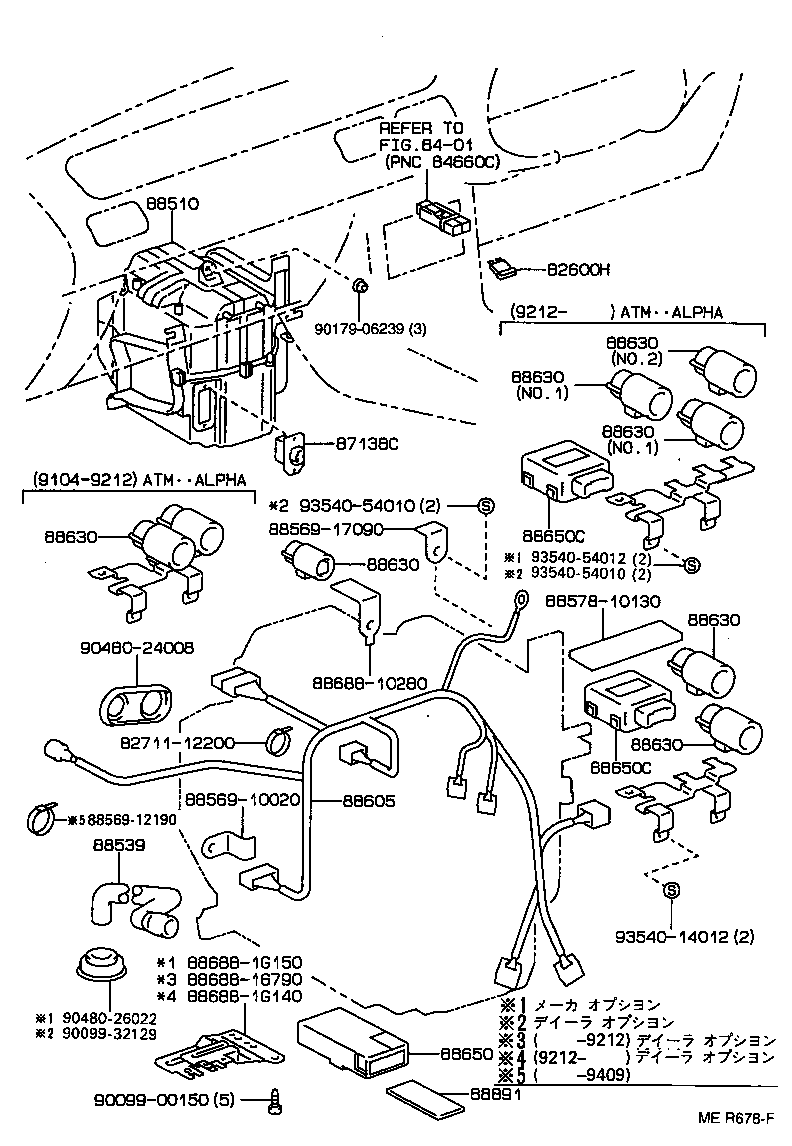

ILLUST NO. 1 OF 2(9101- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82600H - FUSE, FUSE BLOCK
90982-09002	EL44 10A	01/1991 - 12/1992	1
87138C - RESISTOR, BLOWER
87138-18020	EL44 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	01/1991 - 08/1995	1
88510 - UNIT ASSY, COOLER
88510-10240	EL44	01/1991 - 08/1993	1
88510-16480	EL44	08/1993 - 08/1995	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-10090	EL44	01/1991 - 08/1995	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1G630	EL44..MTM..ALPHA	12/1992 - 08/1993	1
88605-1G670	EL44..MTM..ALPHA ｱﾘ(ｵ-ﾄｴｱｺﾝ)	12/1992 - 08/1993	1
88605-1G671	EL44..MTM..ALPHA ｵ-ﾄｴｱｺﾝ	08/1993 - 09/1994	1
88605-1G672	EL44..MTM..ALPHA ｵ-ﾄｴｱｺﾝ	09/1994 - 08/1995	1
88605-1G631	EL44..MTM..ALPHA	08/1993 - 08/1995	1
88605-1G590	EL44..MTM..ALPHA ｵ-ﾄｴｱｺﾝ	01/1991 - 12/1992	1
88605-1G570	EL44..MTM..ALPHA	01/1991 - 12/1992	1
88630 - RELAY ASSY, COOLER
88630-95702	EL44	01/1991 - 04/1991	1
88630-95702	EL44..MTM;EL44..ATM..BETA	04/1991 - 12/1992	1
88630-95702	EL44 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	01/1991 - 04/1991	2
88630-95702	EL44..ALPHA	12/1992 - 08/1995	1
88630-95702	EL44..MTM;EL44..ATM..BETA ｱﾘ(ｵ-ﾄｴｱｺﾝ)	04/1991 - 12/1992	2
88630-95702	EL44 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	12/1992 - 08/1995	2
88630 - RELAY ASSY, COOLER
88630-95702	EL44	01/1991 - 04/1991	1
88630-95702	EL44..MTM;EL44..ATM..BETA	04/1991 - 12/1992	1
88630-95702	EL44 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	01/1991 - 04/1991	2
88630-95702	EL44..ALPHA	12/1992 - 08/1995	1
88630-95702	EL44..MTM;EL44..ATM..BETA ｱﾘ(ｵ-ﾄｴｱｺﾝ)	04/1991 - 12/1992	2
88630-95702	EL44 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	12/1992 - 08/1995	2
88630 - RELAY ASSY, COOLER
88630-95702	EL44	01/1991 - 04/1991	1
88630-95702	EL44..MTM;EL44..ATM..BETA	04/1991 - 12/1992	1
88630-95702	EL44 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	01/1991 - 04/1991	2
88630-95702	EL44..ALPHA	12/1992 - 08/1995	1
88630-95702	EL44..MTM;EL44..ATM..BETA ｱﾘ(ｵ-ﾄｴｱｺﾝ)	04/1991 - 12/1992	2
88630-95702	EL44 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	12/1992 - 08/1995	2
88630 - RELAY ASSY, COOLER
88630-95702	EL44	01/1991 - 04/1991	1
88630-95702	EL44..MTM;EL44..ATM..BETA	04/1991 - 12/1992	1
88630-95702	EL44 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	01/1991 - 04/1991	2
88630-95702	EL44..ALPHA	12/1992 - 08/1995	1
88630-95702	EL44..MTM;EL44..ATM..BETA ｱﾘ(ｵ-ﾄｴｱｺﾝ)	04/1991 - 12/1992	2
88630-95702	EL44 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	12/1992 - 08/1995	2
88630 - RELAY ASSY, COOLER
88630-95702	EL44	01/1991 - 04/1991	1
88630-95702	EL44..MTM;EL44..ATM..BETA	04/1991 - 12/1992	1
88630-95702	EL44 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	01/1991 - 04/1991	2
88630-95702	EL44..ALPHA	12/1992 - 08/1995	1
88630-95702	EL44..MTM;EL44..ATM..BETA ｱﾘ(ｵ-ﾄｴｱｺﾝ)	04/1991 - 12/1992	2
88630-95702	EL44 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	12/1992 - 08/1995	2
88630 - RELAY ASSY, COOLER
88630-95702	EL44	01/1991 - 04/1991	1
88630-95702	EL44..MTM;EL44..ATM..BETA	04/1991 - 12/1992	1
88630-95702	EL44 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	01/1991 - 04/1991	2
88630-95702	EL44..ALPHA	12/1992 - 08/1995	1
88630-95702	EL44..MTM;EL44..ATM..BETA ｱﾘ(ｵ-ﾄｴｱｺﾝ)	04/1991 - 12/1992	2
88630-95702	EL44 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	12/1992 - 08/1995	2
88630 - RELAY ASSY, COOLER
88630-95702	EL44	01/1991 - 04/1991	1
88630-95702	EL44..MTM;EL44..ATM..BETA	04/1991 - 12/1992	1
88630-95702	EL44 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	01/1991 - 04/1991	2
88630-95702	EL44..ALPHA	12/1992 - 08/1995	1
88630-95702	EL44..MTM;EL44..ATM..BETA ｱﾘ(ｵ-ﾄｴｱｺﾝ)	04/1991 - 12/1992	2
88630-95702	EL44 ｱﾘ(ｵ-ﾄｴｱｺﾝ)	12/1992 - 08/1995	2
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16440	EL44..MTM;EL44..ATM..BETA	01/1991 - 08/1995	1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-16461	EL44	09/1994 - 08/1995	1
88650-16460	EL44	01/1991 - 09/1994	1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-16461	EL44	09/1994 - 08/1995	1
88650-16460	EL44	01/1991 - 09/1994	1
88891 - PACKING (FOR COOLER)
88578-16190	EL44	01/1991 - 12/1992	1
88578-16190	EL44..ALPHA	12/1992 - 08/1995	1
Common parts
82711-12200
88569-10020
88569-12190
88569-17090
88578-10130
88688-10280
88688-16790
88688-1G140
88688-1G150
90099-00150
90099-32129
90179-06239
90480-24008
90480-26022
93540-14012
93540-54010
93540-54012
Linked diagrams
8401

ILLUST NO. 2 OF 2(9101- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-16110	EL44..ALPHA	08/1993 - 09/1994	1
88501-16110	EL44	09/1994 - 01/1995	1
88501-10100	EL44	01/1991 - 08/1993	1
88501-16111	EL44	01/1995 - 08/1995	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-16150	EL44	08/1993 - 08/1995	1
88502-10010	EL44	01/1991 - 08/1993	1
88510 - UNIT ASSY, COOLER
88510-10240	EL44	01/1991 - 08/1993	1
88510-16480	EL44	08/1993 - 08/1995	1
88515 - VALVE, COOLER EXPANSION
88515-20100	EL44	08/1993 - 08/1995	1
88515-14062	EL44	01/1991 - 08/1993	1
88521E - CASE SUB-ASSY, COOLING UNIT
88502-10020	EL44	01/1991 - 08/1995	1
88625 - THERMISTOR, COOLER, NO.1
88625-24050	EL44	01/1991 - 08/1995	1
88645G - SWITCH, PRESSURE
88645-30320	EL44	01/1991 - 08/1993	1
88648 - WIRING, COOLER, NO.1
88648-10290	EL44	01/1991 - 08/1993	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-10060	EL44	01/1991 - 08/1993	1
88710-16230	EL44	08/1993 - 08/1995	1
Common parts
87116-14010
88578-16280
88578-16290
90099-00968
