EL44-DCMSK (1991)
Toyota Cynos
Production
Jan 1991
-
Aug 1995
Engine
5EFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9101- )

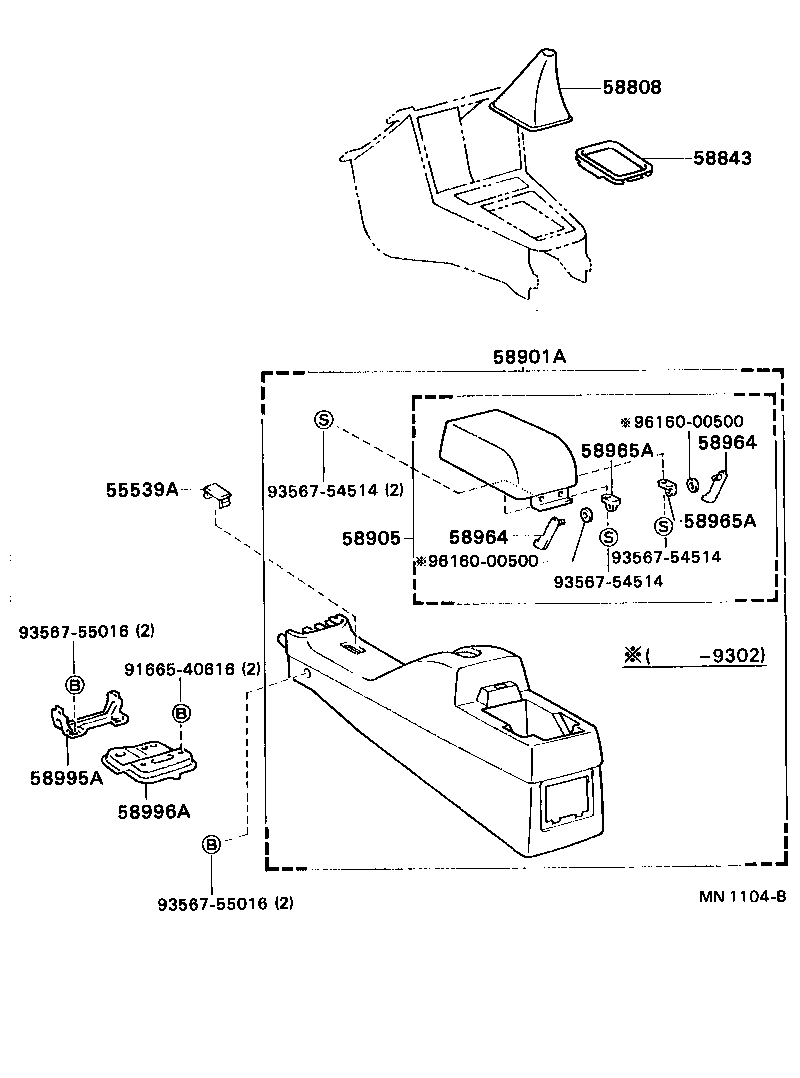

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-1604022 |
EL44..ALPHA;EL44..MTM..BETA BLACK,TRIM2# |
1 | ||
| 55539-1604001 |
EL44..ALPHA;EL44..MTM..BETA BLACK,TRIM2# |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-1609001 |
EL44..MTM BLACK,TRIM2# |
1 | ||
| 58808-1609022 |
EL44..MTM BLACK,TRIM2# |
1 | ||
| 58901A - BOX SUB-ASSY, CONSOLE, REAR | ||||
| 58901-1609001 |
EL44 BLACK,TRIM2# |
1 | ||
| 58901-1609022 |
EL44 BLACK,TRIM2# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-16030C0 |
EL44 BLACK,TRIM2# |
1 | ||
| 58905-1603001 |
EL44 BLACK,TRIM2# |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58965-12040 |
EL44 LH |
1 | ||
| 58964-32040 |
EL44 右側 |
1 | ||
| 58964-30040 |
EL44 左側 |
1 | ||
| 58964-16010 |
EL44 RH |
1 | ||
| 58965-16010 |
EL44 LH |
1 | ||
| 58964-12040 |
EL44 RH |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58965-12040 |
EL44 LH |
1 | ||
| 58964-32040 |
EL44 右側 |
1 | ||
| 58964-30040 |
EL44 左側 |
1 | ||
| 58964-16010 |
EL44 RH |
1 | ||
| 58965-16010 |
EL44 LH |
1 | ||
| 58964-12040 |
EL44 RH |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-12010 |
EL44 左側 |
1 | ||
| 58965-20020 |
EL44 右側 |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-12010 |
EL44 左側 |
1 | ||
| 58965-20020 |
EL44 右側 |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-16060 |
EL44 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-16060 |
EL44 |
1 | ||
| Common parts | ||||
| 91665-40616 | ||||
| 93567-54514 | ||||
| 93567-55016 | ||||
| 96160-00500 | ||||
