ST206-DCPVF (1994)

Toyota Curren

Production Feb 1994 - Jul 1998
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9402- )

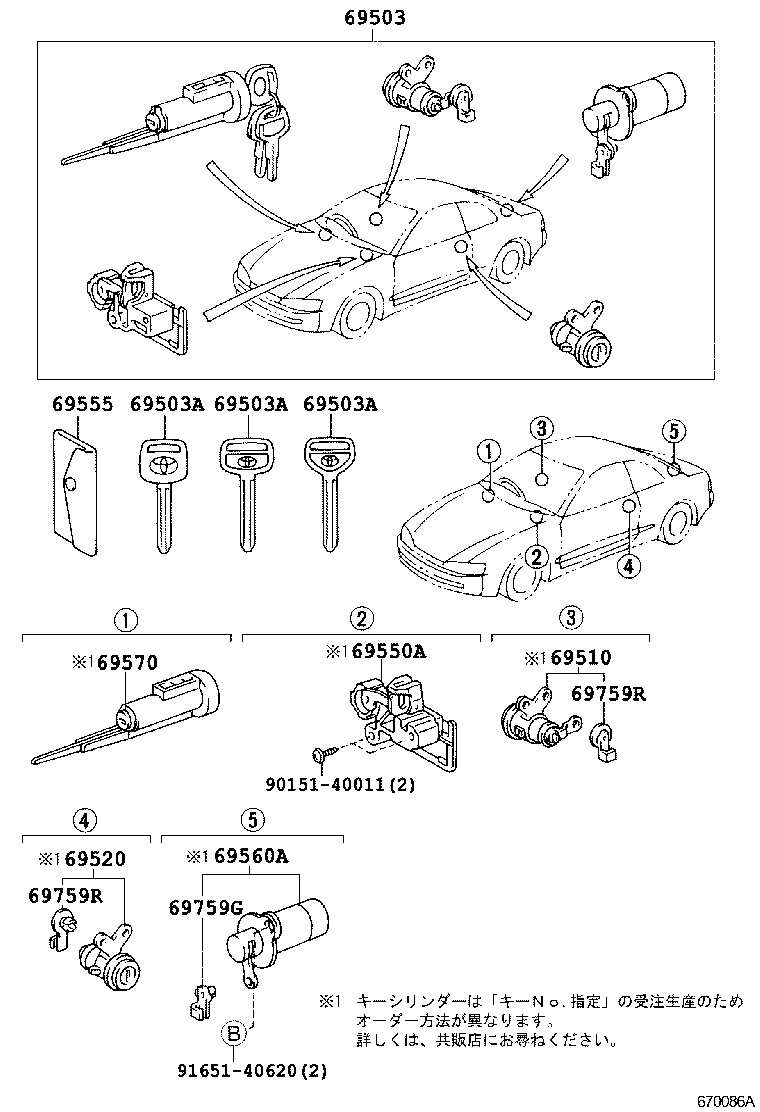

Click highlighted areas on diagram

diagram 69503 69503A 69503A 69503A 69510 69520 69550A 69555 69560A 69570 69759G 69759R 69759R 9015140011 9165140620
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-2B380

ST20#

 1
69503A - KEY, BLANK
90999-00188

ST20#

ｻﾌﾞｷｰ

 1
90999-00185

ST20#

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00186

ST20#

ﾏｽﾀｰｷｰ

 1
69503A - KEY, BLANK
90999-00188

ST20#

ｻﾌﾞｷｰ

 1
90999-00185

ST20#

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00186

ST20#

ﾏｽﾀｰｷｰ

 1
69503A - KEY, BLANK
90999-00188

ST20#

ｻﾌﾞｷｰ

 1
90999-00185

ST20#

ﾏｽﾀｰｷｰ,*68付き

 1
90999-00186

ST20#

ﾏｽﾀｰｷｰ

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-20240

ST20#

 1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-20230

ST20#

 1
69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69550-20130

ST20#

 1
69555 - COVER, KEY
69555-17020

ST20#

 1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-20500

ST20#

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-20240

ST20#

 1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-24080

ST20#

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-22090

ST20#

ﾋﾟﾝｸ

 1
69759-22080

ST20#

ｵﾚﾝｼﾞ

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-22090

ST20#

ﾋﾟﾝｸ

 1
69759-22080

ST20#

ｵﾚﾝｼﾞ

 1
Common parts
90151-40011
91651-40620
