ST206-DCPVF (1994)

Toyota Curren

Production Feb 1994 - Jul 1998
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9402- )

Click highlighted areas on diagram

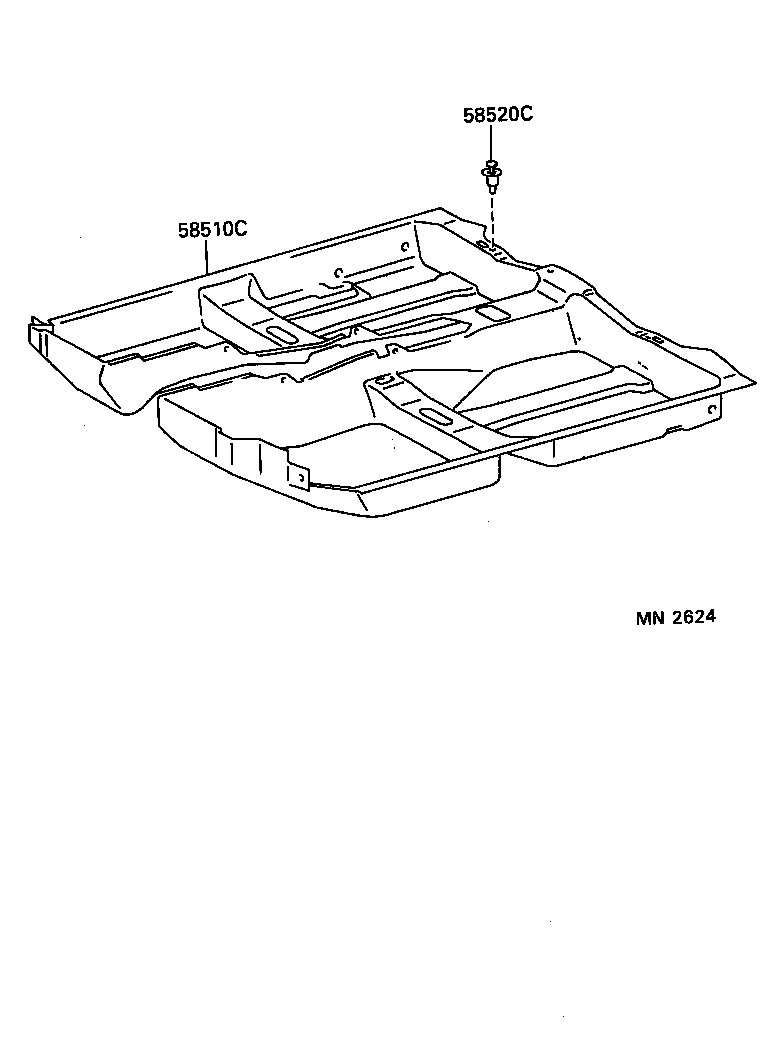

diagram 58510C 58520C
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-2D550B0

ST206,208

SHADOW GRAY,TRIM1#

 1
58510-2D860B1

ST206..ZS

SHADOW GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06166C0

ST20#

BLACK,TRIM1#

 7
90467-06166C0

ST20#

BLACK,TRIM1#

 9
