ST206-DCPSK (1994)

Toyota Curren

Production Feb 1994 - Sep 1995
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9402- )

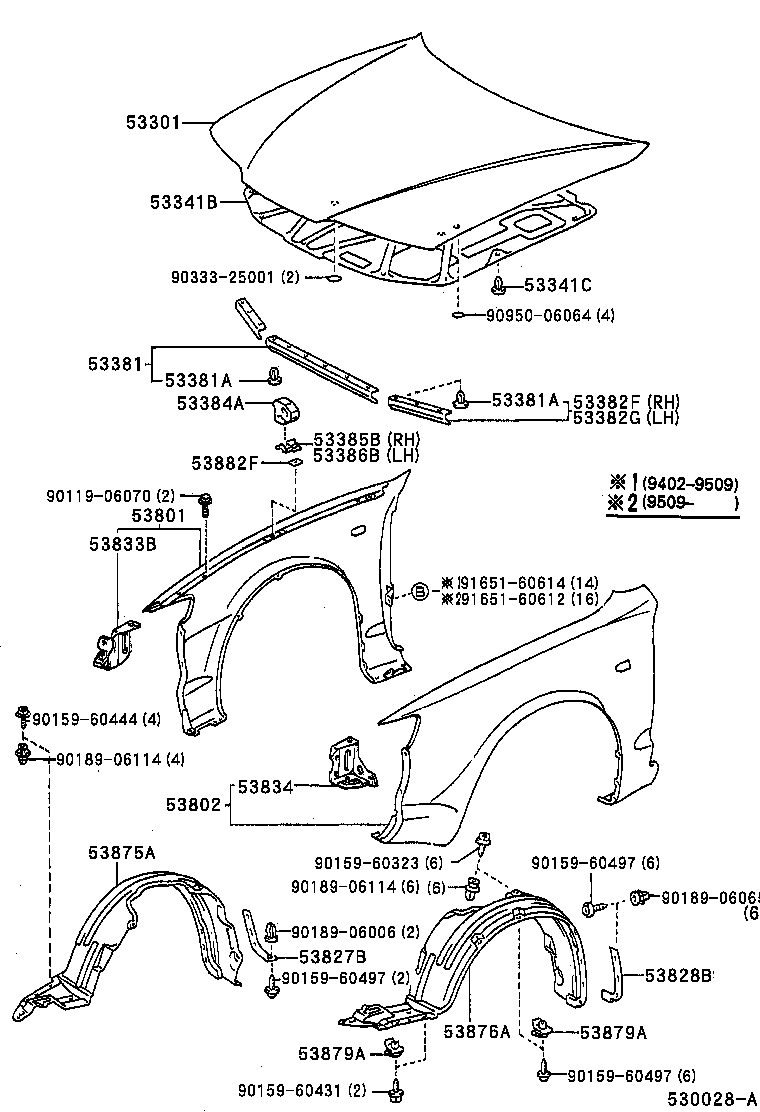

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53381A 53381A 53382F 53382G 53384A 53385B 53386B 53801 53802 53827B 53828B 53833B 53834 53875A 53876A 53879A 53879A 53882F 9011906070 9015960323 9015960431 9015960444 9015960497 9015960497 9015960497 9018906006 9018906065 9018906114 9018906114 9033325001 9095006064 9165160612 9165160614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-20520

ST20#

 1
53341B - INSULATOR, HOOD
53341-20270

ST206,207

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-08081

ST206,207

 11
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-20150

ST20#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

ST20#

 12
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

ST20#

 12
53382F - SEAL, HOOD TO RADIATOR SUPPORT, RH
53382-20040

ST20#

 1
53382G - SEAL, HOOD TO RADIATOR SUPPORT, LH
53382-20040

ST20#

 1
53384A - BUMPER, FENDER TO HOOD
53384-12080

ST20#

 2
53385B - BRACKET, FENDER TO HOOD BUMPER, RH
53386-20020

ST20#

 1
53386B - BRACKET, FENDER TO HOOD BUMPER, LH
53385-20020

ST20#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-2B340

ST20#

 1
53801-2B350

ST20#

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-2B350

ST20#

ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-)

 1
53802-2B340

ST20#

 1
53827B - PROTECTOR, FRONT FENDER SIDE PANEL
53827-20060

ST20#

 1
53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-20060

ST20#

 1
53833B - PANEL, FRONT FENDER SIDE, RH
53803-20030

ST20#

 1
53834 - PANEL, FRONT FENDER SIDE, LOWER LH
53804-20030

ST20#

 1
53875A - LINER, FRONT FENDER, RH
53875-20260

ST20#

 1
53876A - LINER, FRONT FENDER, LH
53876-20270

ST20#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-14010

ST20#

 10
53879A - RETAINER, FRONT FENDER LINER
53879-14010

ST20#

 10
53882F - SEAL, FRONT FENDER
53882-16030

ST20#

 6
Common parts
90119-06070
90159-60323
90159-60431
90159-60444
90159-60497
90189-06006
90189-06065
90189-06114
90333-25001
90950-06064
91651-60612
91651-60614
