ST206-DCPGK (1994)

Toyota Curren

Production Feb 1994 - Jul 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9402- )

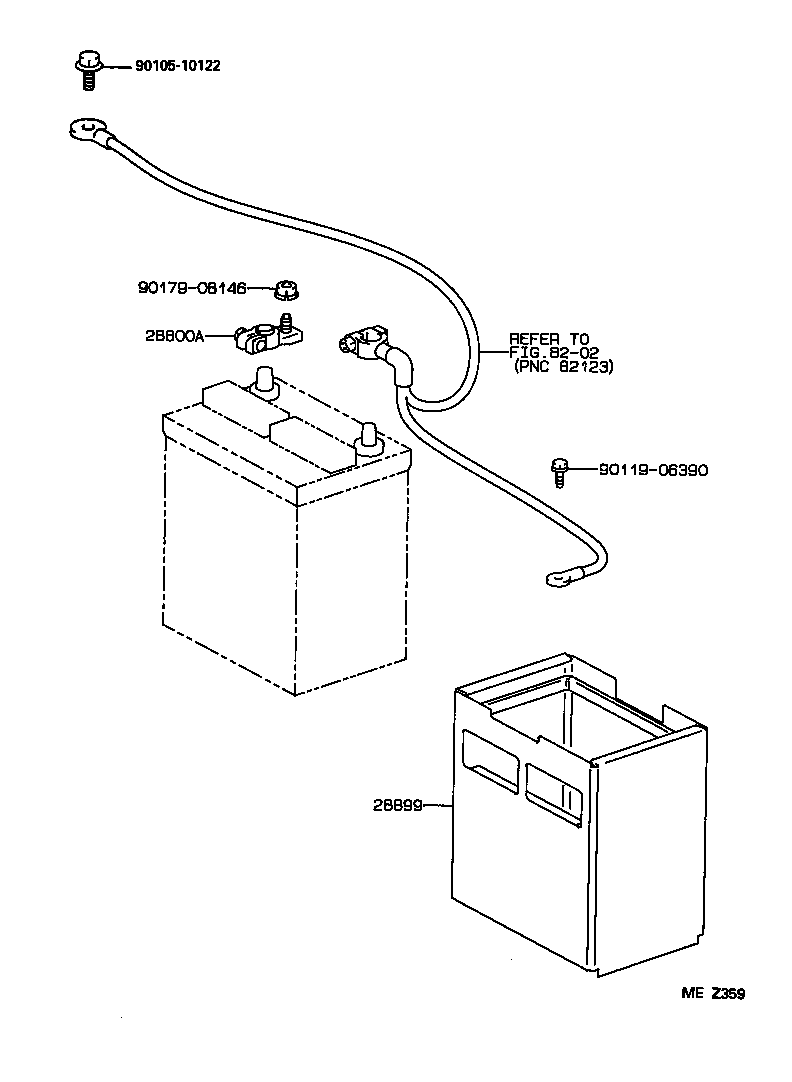

Click highlighted areas on diagram

diagram 28800A 28899 8202 9010510122 9011906390 9017908146
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05028

3S#,4SFE..ST20#

 1
90982-05034

3S#,4SFE..ST20#

 1
28899 - INSULATOR, BATTERY
28899-74120

3S#..ST20#

ｱﾘ(ﾊﾞﾂﾃﾘ=NS60L)

 1
28899-74160

3S#,4SFE..ST20#

ｱﾘ(ﾊﾞﾂﾃﾘ=NS60L)

 1
28899-46020

3S#,4SFE..ST20#

ｱﾘ(ﾊﾞﾂﾃﾘ=46B24L)

 1
28899-46020

3S#,4SFE..ST20#

ｱﾘ(ﾊﾞﾂﾃﾘ=46B24L)

 1
Common parts
90105-10122
90119-06390
90179-08146
Linked diagrams
8202
