ST206-DCPGK (1994)

Toyota Curren

Production Feb 1994 - Jul 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9402- )

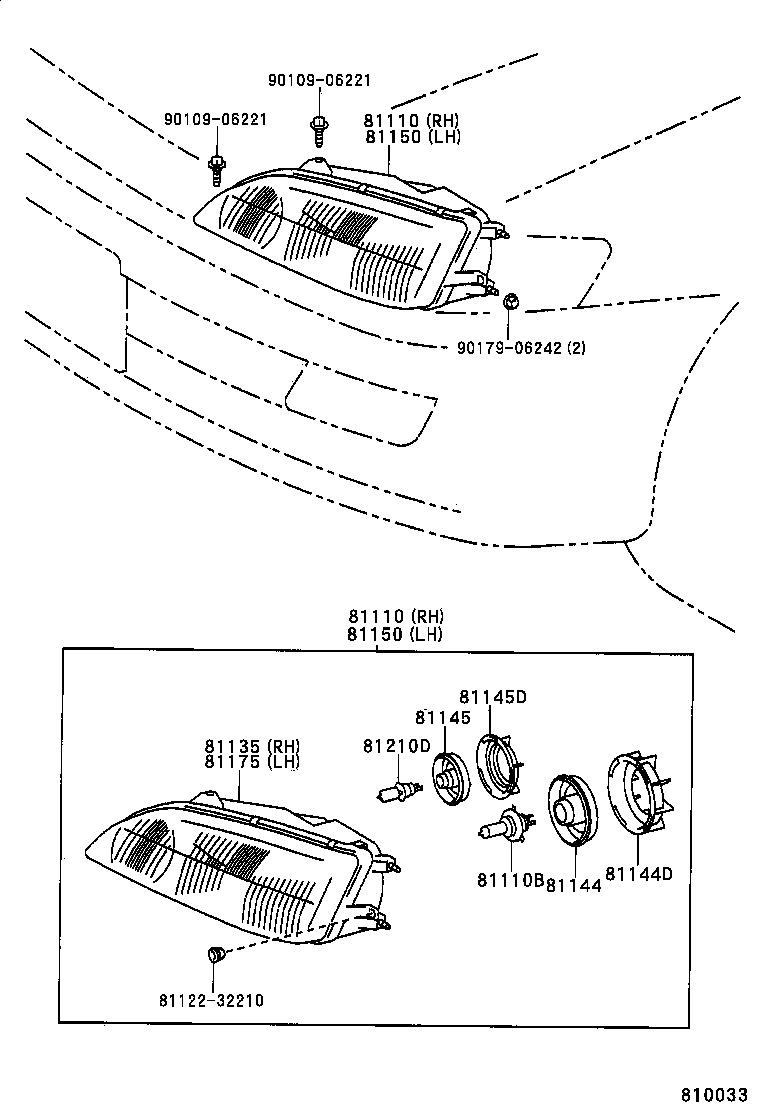

Click highlighted areas on diagram

diagram 81110 81110 81110B 8112232210 81135 81144 81144D 81145 81145D 81150 81150 81175 81210D 9010906221 9010906221 9017906242
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-2B830

ST20#

 1
81110-2B830

ST20#

 1
81110 - HEADLAMP ASSY, RH
81110-2B830

ST20#

 1
81110-2B830

ST20#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

ST20#

12V 60/55W,*HAL *WH

 2
90981-13015

ST20#

12V 60/55W,*HAL *WH

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-2B830

ST20#

 1
81130-2B830

ST20#

 1
81144 - COVER, HEADLAMP, NO.1
81179-32310

ST20#

 2
81179-32310

ST20#

 2
81144D - CAP, HEADLAMP LOCKING
81122-32310

ST20#

 2
81122-32310

ST20#

 2
81145 - COVER, HEADLAMP, NO.2
81139-32040

ST20#

 2
81139-32040

ST20#

 2
81145D - CAP, HEADLAMP LOCKING NO.2
81122-32040

ST20#

 2
81122-32040

ST20#

 2
81150 - HEADLAMP ASSY, LH
81150-2B830

ST20#

 1
81150-2B830

ST20#

 1
81150 - HEADLAMP ASSY, LH
81150-2B830

ST20#

 1
81150-2B830

ST20#

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-2B830

ST20#

 1
81170-2B830

ST20#

 1
81210D - BULB, FOG LAMP
90981-13039

ST20#

12V 55W,ﾊﾛｹﾞﾝ

 2
90981-13039

ST20#

12V 55W,ﾊﾛｹﾞﾝ

 2
Common parts
81122-32210
90109-06221
90179-06242
