ST206-DCPGK (1994)

Toyota Curren

Production Feb 1994 - Jul 1998
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9402- )

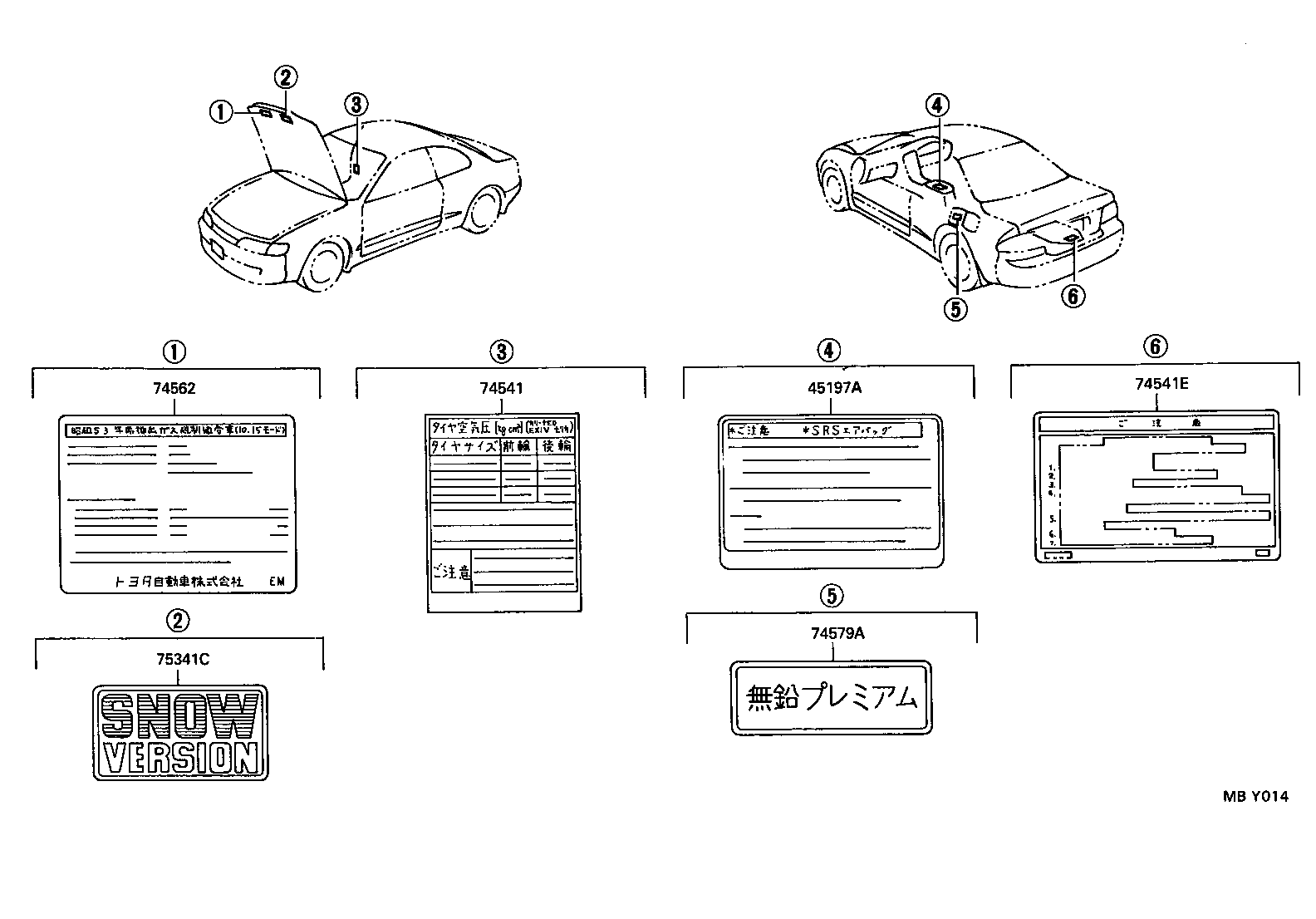

Click highlighted areas on diagram

diagram 45197A 74541 74541E 74562 74579A 75341C
Part # Description Qty Price
45197A - LABEL, AIR BAG CAUTION
45197-20070

ST20#

 1
74541 - PLATE, TIRE PRESSURE CAUTION
42661-2B501

ST20#..FS,XS

 1
42661-2B550

ST206,207..XS

 1
42661-2B502

ST20#..FS,XS

 1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-32010

ST20#

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-20660

ST20#..FS,XS

 1
75341C - PLATE, HOOD NAME
75341-20060

ST20#

 1
