ST206-DCMSK (1994)
Toyota Curren
Production
Feb 1994
-
Sep 1995
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9402- )

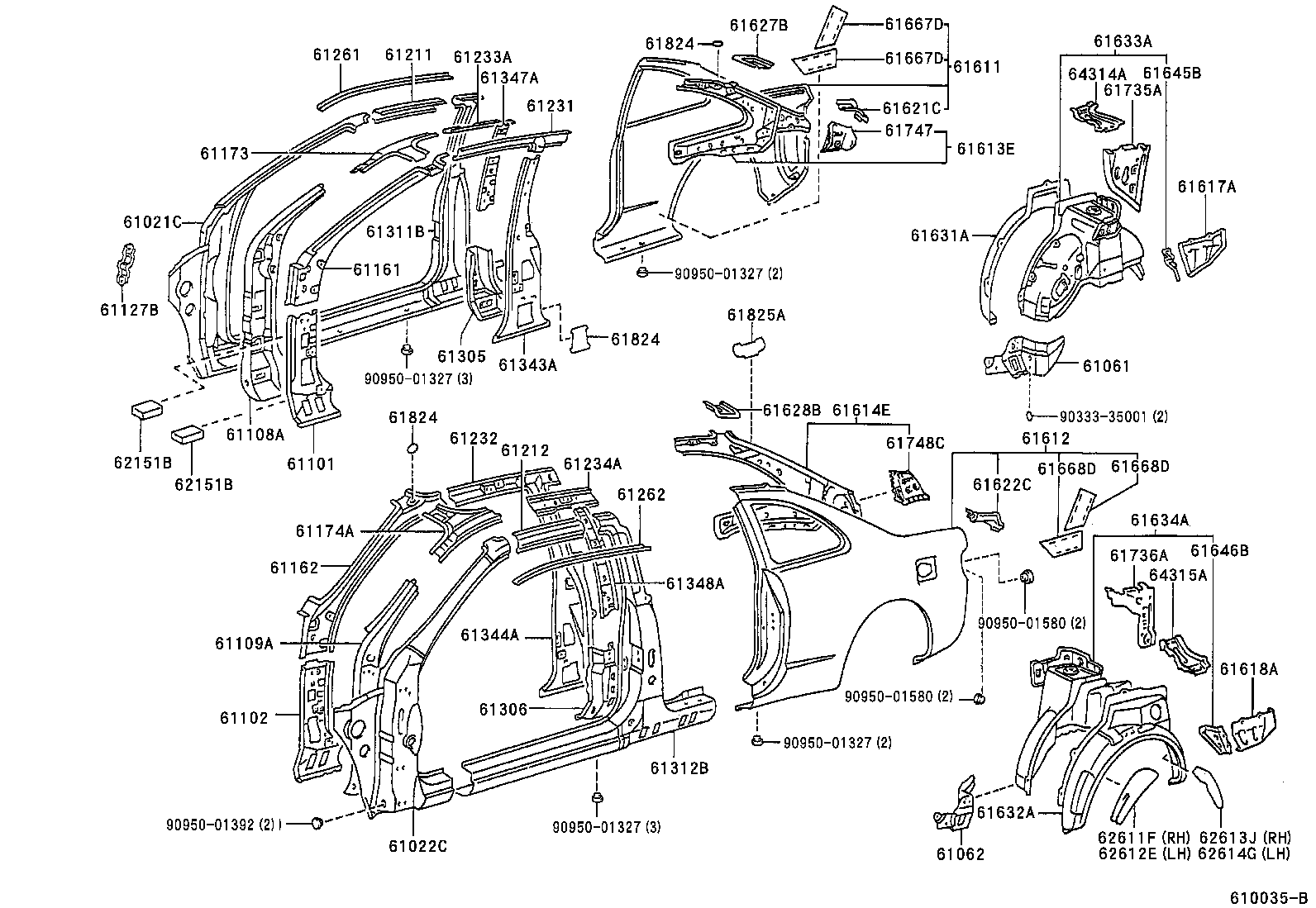

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61021C - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61027-20100 |
ST20# |
1 | ||
| 61022C - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61028-20090 |
ST20# |
1 | ||
| 61061 - REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH | ||||
| 61061-2B010 |
ST20# |
1 | ||
| 61062 - REINFORCEMENT SUB-ASSY, WHEEL HOUSE, LH | ||||
| 61062-20010 |
ST20# |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-20270 |
ST20# |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-20230 |
ST20# |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-20100 |
ST20# |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-20100 |
ST20# |
1 | ||
| 61127B - REINFORCEMENT, COWL SIDE PANEL, NO.2 RH | ||||
| 61127-20020 |
ST20# |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-20210 |
ST20# |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-20210 |
ST20# |
1 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 61173-20090 |
ST20# |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-20090 |
ST20# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-20260 |
ST20# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-20260 |
ST20# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-20390 |
ST20# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-20380 |
ST20# |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-20030 |
ST20# |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-20020 |
ST20# |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-20120 |
ST20# |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-20120 |
ST20# |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-20141 |
ST20# |
1 | ||
| 61305-20140 |
ST20# |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-20141 |
ST20# |
1 | ||
| 61306-20140 |
ST20# |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-20260 |
ST20# |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-20330 |
ST20# |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-20130 |
ST20# |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-20130 |
ST20# |
1 | ||
| 61347A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH | ||||
| 61347-20180 |
ST20# |
1 | ||
| 61348A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH | ||||
| 61348-20140 |
ST20# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-2B910 |
ST20# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-2D910 |
ST20# |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61703-20270 |
ST20# |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61704-20300 |
ST20# |
1 | ||
| 61617A - PANEL, QUARTER INNER, REAR RH | ||||
| 61617-20140 |
ST20# |
1 | ||
| 61618A - PANEL, QUARTER, INNER REAR LH | ||||
| 61618-20160 |
ST20# |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-20210 |
ST20# |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-20210 |
ST20# |
1 | ||
| 61627B - EXTENSION, QUARTER PANEL, UPPER REAR RH | ||||
| 61627-20130 |
ST20# |
1 | ||
| 61628B - EXTENSION, QUARTER PANEL, UPPER REAR LH | ||||
| 61628-20150 |
ST20# |
2 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-20903 |
ST20# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-20260 |
ST20# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-20925 |
ST20# |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-20920 |
ST20# |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-20110 |
ST20# |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-20110 |
ST20# |
1 | ||
| 61667D - SEAL, QUARTER PANEL | ||||
| 61667-20070 |
ST20# |
1 | ||
| 61667D - SEAL, QUARTER PANEL | ||||
| 61667-20070 |
ST20# |
1 | ||
| 61668D - SEAL, QUARTER PANEL, LH | ||||
| 61668-20060 |
ST20# |
1 | ||
| 61668D - SEAL, QUARTER PANEL, LH | ||||
| 61668-20060 |
ST20# |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-20220 |
ST20# |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-20200 |
ST20# |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-20160 |
ST20# |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-20150 |
ST20# |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-20150 |
ST20# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 61824-20150 |
ST206,207 ｼ-ﾄﾍﾞﾙﾄ ﾖｳ |
2 | ||
| 61824-12040 |
ST20# ｻﾝﾙ-ﾌ ﾄﾞﾚｲﾝ ﾖｳ |
4 | ||
| 61824-20140 |
ST20# ｻﾝﾙ-ﾌ ﾄﾞﾚｲﾝ ﾖｳ |
4 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-20150 |
ST20# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 61824-20150 |
ST206,207 ｼ-ﾄﾍﾞﾙﾄ ﾖｳ |
2 | ||
| 61824-12040 |
ST20# ｻﾝﾙ-ﾌ ﾄﾞﾚｲﾝ ﾖｳ |
4 | ||
| 61824-20140 |
ST20# ｻﾝﾙ-ﾌ ﾄﾞﾚｲﾝ ﾖｳ |
4 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-20150 |
ST20# ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
2 | ||
| 61824-20150 |
ST206,207 ｼ-ﾄﾍﾞﾙﾄ ﾖｳ |
2 | ||
| 61824-12040 |
ST20# ｻﾝﾙ-ﾌ ﾄﾞﾚｲﾝ ﾖｳ |
4 | ||
| 61824-20140 |
ST20# ｻﾝﾙ-ﾌ ﾄﾞﾚｲﾝ ﾖｳ |
4 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-20160 |
ST20# |
2 | ||
| 61825-20140 |
ST20# |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-20160 |
ST20# |
4 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-20160 |
ST20# |
4 | ||
| 62611F - INSULATOR, QUARTER WHEEL HOUSE, RH | ||||
| 62611-20130 |
ST20# |
1 | ||
| 62612E - INSULATOR, QUARTER WHEEL HOUSE, LH | ||||
| 62612-20160 |
ST20# |
1 | ||
| 62613J - INSURATOR, QUARTER WHEEL HOUSE, NO.2 RH | ||||
| 62613-20090 |
ST20# |
1 | ||
| 62614G - INSURATOR, QUARTER WHEEL HOUSE, NO.2 LH | ||||
| 62614-20090 |
ST20# |
1 | ||
| 64314A - REINFORCEMENT, PACKAGE TRAY BRACKET, RH | ||||
| 64314-20210 |
ST20# |
1 | ||
| 64315A - REINFORCEMENT, PACKAGE TRAY BRACKET, LH | ||||
| 64315-20200 |
ST20# |
1 | ||
| Common parts | ||||
| 90333-35001 | ||||
| 90950-01327 | ||||
| 90950-01392 | ||||
| 90950-01580 | ||||
