YXS10-AESRN (1995)

Toyota Crown Comfort/Sed

Production Dec 1995 - Aug 2008
Engine 3YPE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512-0706)4H

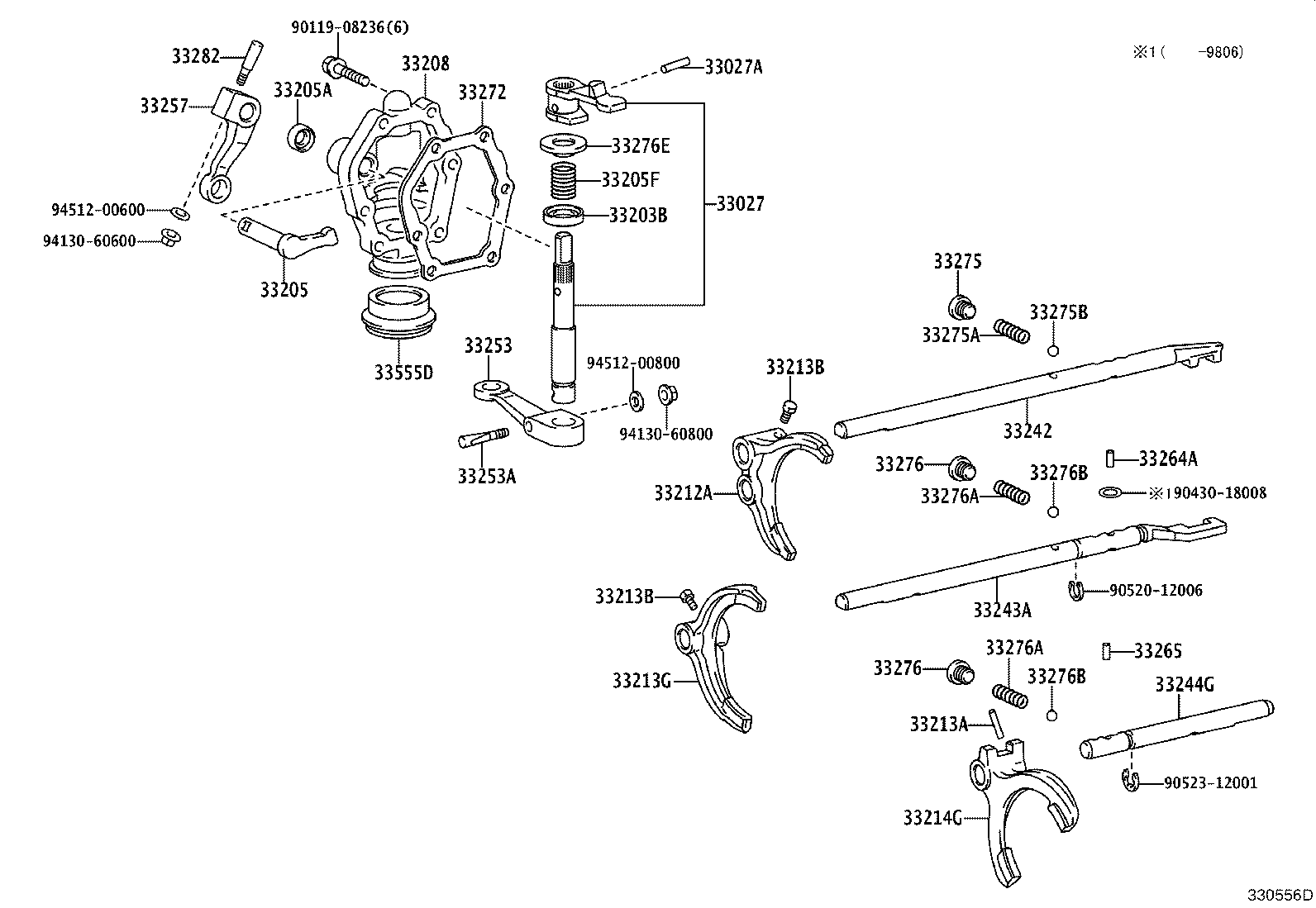

Click highlighted areas on diagram

N45

diagram 33027 33027A 33203B 33205 33205A 33205F 33208 33212A 33213A 33213B 33213B 33213G 33214G 33242 33243A 33244G 33253 33253A 33257 33264A 33265 33272 33275 33275A 33275B 33276 33276 33276A 33276A 33276B 33276B 33276E 33282 33555D 9011908236 9043018008 9052012006 9052312001 9413060600 9413060800 9451200600 9451200800
Part # Description Qty Price
33027 - SHAFT SET, SHIFT LEVER
33027-30030

YXS10..4H

 1
33027-30030

YXS10..4H

 1
33027A - PIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET)
90254-05001

YXS10..4H

 1
90254-05001

YXS10..4H

 1
33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT)
90311-18002

YXS10..4H

 1
90311-18002

YXS10..4H

 1
33205 - SHAFT SUB-ASSY, SELECT LEVER
33262-30030

YXS10..4H

 1
33262-30030

YXS10..4H

 1
33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
90313-13001

YXS10..4H

 1
90313-13001

YXS10..4H

 1
33205F - SPRING, COMPRESSION(FOR SELECT RETURN)
90501-16036

YXS10..4H

 1
90501-16036

YXS10..4H

 1
33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT
33271-30030

YXS10..4H

 1
33271-30030

YXS10..4H

 1
33212A - FORK, GEAR SHIFT, NO.1
33212-30042

YXS10..4H

 1
33212-30042

YXS10..4H

 1
33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET)
90254-05001

YXS10..4H

 1
90254-05001

YXS10..4H

 1
33213B - BOLT(FOR SHIFT FORK SET)
90105-06143

YXS10..4H

 2
33213B - BOLT(FOR SHIFT FORK SET)
90105-06143

YXS10..4H

 2
33213G - FORK, GEAR SHIFT, NO.2
33213-30042

YXS10..4H

 1
33213-30042

YXS10..4H

 1
33214G - FORK, GEAR SHIFT, NO.3
33230-30020

YXS10..4H

 1
33230-30020

YXS10..4H

 1
33242 - SHAFT, GEAR SHIFT FORK, NO.1
33242-30060

YXS10..4H

 1
33242-30060

YXS10..4H

 1
33243A - SHAFT, GEAR SHIFT FORK, NO.2
33243-30082

YXS10..4H

 1
33243-30082

YXS10..4H

 1
33244G - SHAFT, GEAR SHIFT FORK, NO.3
33244-30041

YXS10..4H

 1
33244-30041

YXS10..4H

 1
33253 - LEVER, SHIFT OUTER, NO.1
33253-22050

YXS10..4H

 1
33253-22050

YXS10..4H

 1
33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33281-16020

YXS10..4H

 1
33281-16020

YXS10..4H

 1
33257 - LEVER, SELECT OUTER
33257-30040

YXS10..4H

 1
33257-30040

YXS10..4H

 1
33264A - PLUG, INTER LOCK HOLE
90250-06006

YXS10..4H

長さ=13.4,外径=6

 1
90341-18006

YXS10..4H

長さ=11,外径=24.5,L=11,OD=24.5

 1
90250-06006

YXS10..4H

長さ=13.4,外径=6

 1
33265 - PIN, SHIFT INTER LOCK, NO.2
90250-06006

YXS10..4H

長さ=13.4,外径=6

 1
90250-06006

YXS10..4H

長さ=13.4,外径=6

 1
33272 - GASKET, SHIFT LEVER SHAFT HOUSING
33272-30040

YXS10..4H

 1
33272-30040

YXS10..4H

 1
33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1
90341-12008

YXS10..4H

外径=18

 1
90341-12008

YXS10..4H

外径=18

 1
33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
90501-14123

YXS10..4H

長さ=20.2

 1
90501-14123

YXS10..4H

長さ=20.2

 1
33275B - BALL, SHAFT DETENT
90360-10003

YXS10..4H

 1
33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2
90341-12008

YXS10..4H

 2
90341-12008

YXS10..4H

 2
90341-12014

YXS10..4H

 2
33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2
90341-12008

YXS10..4H

 2
90341-12008

YXS10..4H

 2
90341-12014

YXS10..4H

 2
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
90501-14123

YXS10..4H

 2
90501-14123

YXS10..4H

 2
33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
90501-14123

YXS10..4H

 2
90501-14123

YXS10..4H

 2
33276B - BALL, SHIFT DETENT, NO.2
90360-10003

YXS10..4H

 2
33276B - BALL, SHIFT DETENT, NO.2
90360-10003

YXS10..4H

 2
33276E - SEAT, SELECT SPRING, NO.1
33276-28011

YXS10..4H

 1
33276-28011

YXS10..4H

 1
33282 - PIN, LEVER LOCK, NO.2
33282-35010

YXS10..4H

 1
33282-35010

YXS10..4H

 1
33555D - BOOT, SHIFT LEVER
33555-30111

YXS10..4H

 1
33555-30111

YXS10..4H

 1
Common parts
90119-08236
90430-18008
90520-12006
90523-12001
94130-60600
94130-60800
94512-00600
94512-00800
