YXS10-AEPRN (1995)
Toyota Crown Comfort/Sed

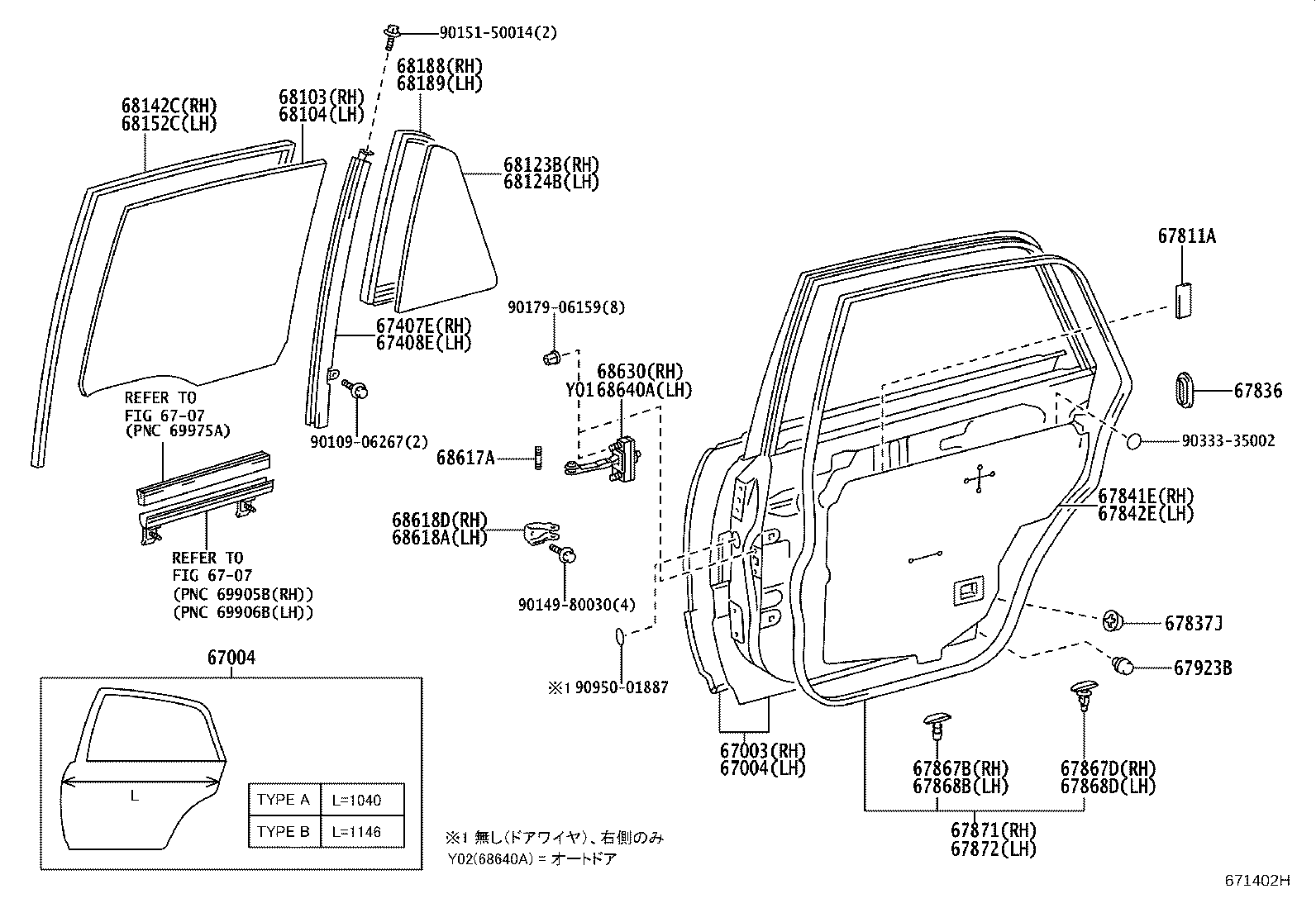

ILLUST NO. 1 OF 2(9512- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-43020 |
LXS11,YXS1#..STD |
1 | ||
| 67003-43040 |
YXS1#..STD |
1 | ||
| 67003-43040 |
YXS1#..(4FC,4H,5F)..STD |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-43020 |
LXS11,YXS1#..STD |
1 | ||
| 67004-43060 |
YXS1#..(4FC,4H,5F)..STD |
1 | ||
| 67004-43060 |
YXS1#..STD |
1 | ||
| 67004-43100 |
YXS10..4FC..STD ｳｴﾙｷﾔﾌﾞ & ｱﾘ(ｺｳｶｲｺｳ ｺｳｾｷﾄﾞｱ) |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 67407-43011 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 67408-43011 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 67811A - PAD, REAR DOOR SILENCER | ||||
| 67811-22070 |
YXS10..CRW..4FC |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-14010 |
GXS10,LXS11,YXS1#..CRW,TAX |
2 | ||
| 67836-14010 |
YXS1#..(CRW,SED,TAX)..(4FC,5F) |
1 | ||
| 67837J - SEAL, DOOR DUST PROOF | ||||
| 67837-43010 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 67837-43010 |
GBS12,YXS1#..4FC,5F |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 67841-43010 |
YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 67842-43010 |
YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 67842-43020 |
YXS10..CRW..4FC ｸﾗｳﾝ ｺﾝﾌｵ-ﾄ(ｳｴﾙｷﾔﾌﾞ)TYPE 2 & ｱﾘ(ｺｳｶｲｺｳ ｺｳｾｷﾄﾞｱ) |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30040 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 67868-30040 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GXS10,LXS11,SXS11,YXS1# |
21 | ||
| 67867-12150 |
GBS12,YXS1#..4FC,5F |
21 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30040 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 67868-30040 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GXS10,LXS11,SXS11,YXS1# |
21 | ||
| 67867-12150 |
YXS10..CRW..4FC ｸﾗｳﾝ ｺﾝﾌｵ-ﾄ(ｳｴﾙｷﾔﾌﾞ)TYPE 2 & ｱﾘ(ｺｳｶｲｺｳ ｺｳｾｷﾄﾞｱ) |
22 | ||
| 67867-12150 |
GBS12,YXS1#..4FC,5F |
21 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-43011 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 67871-43010 |
GXS10,LXS11,YXS1# |
1 | ||
| 67871-43011 |
YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-43010 |
GXS10,LXS11,YXS1# |
1 | ||
| 67872-43011 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 67872-43011 |
YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 67872-43020 |
YXS10..CRW..4FC ｸﾗｳﾝ ｺﾝﾌｵ-ﾄ(ｳｴﾙｷﾔﾌﾞ)TYPE 2 & ｱﾘ(ｺｳｶｲｺｳ ｺｳｾｷﾄﾞｱ) |
1 | ||
| 67923B - CUSHION, REAR DOOR STIFFENER, NO.1 | ||||
| 67923-43010 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 67923-43010 |
GBS12,YXS1#..4FC,5F |
2 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-43020 |
YXS1#..(4FC,5F)..(DLX,SG,STD) *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68113-43010 |
GXS12,SXS13,YXS1#..DLX,SDX,SG,STD *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68113-43010 |
GXS10,LXS11,SXS11,YXS1# *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-43010 |
GXS12,SXS13,YXS1#..DLX,SDX,SG,STD *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68114-43010 |
GXS10,LXS11,SXS11,YXS1# *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68114-43030 |
YXS1#..(4FC,5F)..(DLX,SG,STD) *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68114-43040 |
YXS10..CRW..4FC *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｸﾗｳﾝ ｺﾝﾌｵ-ﾄ(ｳｴﾙｷﾔﾌﾞ)TYPE 2 & ｱﾘ(ｺｳｶｲｺｳ ｺｳｾｷﾄﾞｱ) |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-43010 |
GXS10,LXS11,SXS11,YXS1# *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68123-43010 |
GXS12,SXS13,YXS1#..DLX,SDX,SG,STD *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68123-43020 |
YXS1#..(4FC,5F)..(DLX,SG,STD) *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-43010 |
GXS10,LXS11,SXS11,YXS1# *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68124-43010 |
GXS12,SXS13,YXS1#..DLX,SDX,SG,STD *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68124-43020 |
YXS1#..(4FC,5F)..(DLX,SG,STD) *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68142-43010 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-43020 |
YXS10..CRW..4FC ｸﾗｳﾝ ｺﾝﾌｵ-ﾄ(ｳｴﾙｷﾔﾌﾞ)TYPE 2 & ｱﾘ(ｺｳｶｲｺｳ ｺｳｾｷﾄﾞｱ) |
1 | ||
| 68152-43010 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 68152-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68188-43010 |
YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68189-43010 |
YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-50010 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 68617-50010 |
GBS12,YXS1#..4FC,5F |
2 | ||
| 68618A - BRACKET, REAR DOOR CHECK ARM, LH | ||||
| 68618-50010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68618-50010 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 68618D - BRACKET, REAR DOOR CHECK ARM, RH | ||||
| 68618-50010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68618-50010 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-30160 |
GBS12,GXS1#,SXS13,TSS13,YXS1# |
1 | ||
| 68630-30160 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-30160 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68630-30160 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 68640-43010 |
YXS10..CRW..4FC ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ) |
1 | ||
| Common parts | ||||
| 90109-06267 | ||||
| 90149-80030 | ||||
| 90151-50014 | ||||
| 90179-06159 | ||||
| 90333-25001 | ||||
| 90333-35002 | ||||
| 90950-01887 | ||||
| Linked diagrams | ||||
| 6707 | ||||
ILLUST NO. 1 OF 2(9801-0808)YXS10..CRW..4H,4HC ; (9801-0808)GBS12,GXS12,YXS11..SDX,STD ; (0706-0808)
ｸﾗｳﾝｺﾝﾌｵ-ﾄ(ｳｴﾙｷﾔﾌﾞ)ﾀｲﾌﾟ1 OR ﾀｲﾌﾟ2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-43020 |
LXS11,YXS1#..STD |
1 | ||
| 67003-43040 |
YXS1#..STD |
1 | ||
| 67003-43040 |
YXS1#..(4FC,4H,5F)..STD |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-43020 |
LXS11,YXS1#..STD |
1 | ||
| 67004-43060 |
YXS1#..(4FC,4H,5F)..STD |
1 | ||
| 67004-43060 |
YXS1#..STD |
1 | ||
| 67004-43100 |
YXS10..4FC..STD ｳｴﾙｷﾔﾌﾞ & ｱﾘ(ｺｳｶｲｺｳ ｺｳｾｷﾄﾞｱ) |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-43020 |
LXS11,YXS1#..STD |
1 | ||
| 67004-43060 |
YXS1#..(4FC,4H,5F)..STD |
1 | ||
| 67004-43060 |
YXS1#..STD |
1 | ||
| 67004-43100 |
YXS10..4FC..STD ｳｴﾙｷﾔﾌﾞ & ｱﾘ(ｺｳｶｲｺｳ ｺｳｾｷﾄﾞｱ) |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 67407-43011 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 67408-43011 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 67811A - PAD, REAR DOOR SILENCER | ||||
| 67811-22070 |
YXS10..CRW..4FC |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-14010 |
GXS10,LXS11,YXS1#..CRW,TAX |
2 | ||
| 67836-14010 |
YXS1#..(CRW,SED,TAX)..(4FC,5F) |
1 | ||
| 67837J - SEAL, DOOR DUST PROOF | ||||
| 67837-43010 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 67837-43010 |
GBS12,YXS1#..4FC,5F |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 67841-43010 |
YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 67842-43010 |
YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 67842-43020 |
YXS10..CRW..4FC ｸﾗｳﾝ ｺﾝﾌｵ-ﾄ(ｳｴﾙｷﾔﾌﾞ)TYPE 2 & ｱﾘ(ｺｳｶｲｺｳ ｺｳｾｷﾄﾞｱ) |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30040 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 67868-30040 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GXS10,LXS11,SXS11,YXS1# |
21 | ||
| 67867-12150 |
GBS12,YXS1#..4FC,5F |
21 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30040 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 67868-30040 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GXS10,LXS11,SXS11,YXS1# |
21 | ||
| 67867-12150 |
YXS10..CRW..4FC ｸﾗｳﾝ ｺﾝﾌｵ-ﾄ(ｳｴﾙｷﾔﾌﾞ)TYPE 2 & ｱﾘ(ｺｳｶｲｺｳ ｺｳｾｷﾄﾞｱ) |
22 | ||
| 67867-12150 |
GBS12,YXS1#..4FC,5F |
21 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-43011 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 67871-43010 |
GXS10,LXS11,YXS1# |
1 | ||
| 67871-43011 |
YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-43010 |
GXS10,LXS11,YXS1# |
1 | ||
| 67872-43011 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 67872-43011 |
YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 67872-43020 |
YXS10..CRW..4FC ｸﾗｳﾝ ｺﾝﾌｵ-ﾄ(ｳｴﾙｷﾔﾌﾞ)TYPE 2 & ｱﾘ(ｺｳｶｲｺｳ ｺｳｾｷﾄﾞｱ) |
1 | ||
| 67923B - CUSHION, REAR DOOR STIFFENER, NO.1 | ||||
| 67923-43010 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 67923-43010 |
GBS12,YXS1#..4FC,5F |
2 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-43020 |
YXS1#..(4FC,5F)..(DLX,SG,STD) *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68113-43010 |
GXS12,SXS13,YXS1#..DLX,SDX,SG,STD *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68113-43010 |
GXS10,LXS11,SXS11,YXS1# *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-43010 |
GXS12,SXS13,YXS1#..DLX,SDX,SG,STD *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68114-43010 |
GXS10,LXS11,SXS11,YXS1# *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68114-43030 |
YXS1#..(4FC,5F)..(DLX,SG,STD) *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68114-43040 |
YXS10..CRW..4FC *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｸﾗｳﾝ ｺﾝﾌｵ-ﾄ(ｳｴﾙｷﾔﾌﾞ)TYPE 2 & ｱﾘ(ｺｳｶｲｺｳ ｺｳｾｷﾄﾞｱ) |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-43010 |
GXS10,LXS11,SXS11,YXS1# *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68123-43010 |
GXS12,SXS13,YXS1#..DLX,SDX,SG,STD *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68123-43020 |
YXS1#..(4FC,5F)..(DLX,SG,STD) *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-43010 |
GXS10,LXS11,SXS11,YXS1# *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68124-43010 |
GXS12,SXS13,YXS1#..DLX,SDX,SG,STD *TT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68124-43020 |
YXS1#..(4FC,5F)..(DLX,SG,STD) *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68142-43010 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-43020 |
YXS10..CRW..4FC ｸﾗｳﾝ ｺﾝﾌｵ-ﾄ(ｳｴﾙｷﾔﾌﾞ)TYPE 2 & ｱﾘ(ｺｳｶｲｺｳ ｺｳｾｷﾄﾞｱ) |
1 | ||
| 68152-43010 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 68152-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68188-43010 |
YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68189-43010 |
YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-50010 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 68617-50010 |
GBS12,YXS1#..4FC,5F |
2 | ||
| 68618A - BRACKET, REAR DOOR CHECK ARM, LH | ||||
| 68618-50010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68618-50010 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 68618D - BRACKET, REAR DOOR CHECK ARM, RH | ||||
| 68618-50010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68618-50010 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-30160 |
GBS12,GXS1#,SXS13,TSS13,YXS1# |
1 | ||
| 68630-30160 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-30160 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68630-30160 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 68640-43010 |
YXS10..CRW..4FC ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ) |
1 | ||
| Common parts | ||||
| 90109-06267 | ||||
| 90149-80030 | ||||
| 90151-50014 | ||||
| 90179-06159 | ||||
| 90333-35002 | ||||
| 90950-01887 | ||||
| Linked diagrams | ||||
| 6707 | ||||
ILLUST NO. 2 OF 2(9512- )CRW,KYO,TAX
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-43010B0 |
LXS11,YXS1#..(CRW,TAX)..(DLX,STD) ﾄﾞｱﾄﾘﾑ=TYPE A-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-43040B0 |
YXS10 ﾄﾞｱﾄﾘﾑ=TYPE A-*104 & ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ=ｳﾝﾃﾝｾｷ ﾜﾝﾀﾂﾁ ｼｷ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-43040B0 |
LXS11,YXS1#..(CRW,TAX)..(DLX,STD) ﾄﾞｱﾄﾘﾑ=TYPE A-*104 & ｱﾘ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ=ﾜﾝﾀﾂﾁｼｷ),SHADOW GRAY,TRIM1# |
1 | ||
| 67630-43010B1 |
YXS1#..(CRW,TAX)..(4FC,4H,5F)..(DLX,STD) ﾄﾞｱﾄﾘﾑ=TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 67630-43040B1 |
YXS10..CRW..(4FC,4H) ﾄﾞｱﾄﾘﾑ=TYPE A-*104 & ｱﾘ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ=ﾜﾝﾀﾂﾁｼｷ),DK.GRAY,TRIM1# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-17030 |
YXS11..DLX,SG;GXS10,LXS11,SXS11,YXS10 ｲｴﾛｰ |
3 | ||
| 67771-17030 |
GXS10,LXS11,SXS11,YXS1# ｲｴﾛｰ |
3 | ||
| 67771-28020 |
GXS10,LXS11,SXS11,YXS1# ﾚｯﾄﾞ |
5 | ||
| 67771-43010 |
SXS13,YXS1#..(4FC,4H,5F)..(DLX,SG,STD) ﾋﾟﾝｸ |
2 | ||
| 67771-17030 |
SXS13,YXS1#..(4FC,4H,5F)..(DLX,SG,STD) ｲｴﾛｰ |
6 | ||
| 67771-17030 |
GXS10,LXS11,SXS11,YXS1# ｲｴﾛｰ |
8 | ||
| 67771-17030 |
SXS13,YXS1#..DLX,SG,STD ｲｴﾛｰ |
8 | ||
| 67771-17030 |
YXS1#..(4FC,5F)..(DLX,SG,STD) ｲｴﾛｰ |
5 | ||
| 67771-43010 |
YXS1#..(4FC,5F)..(DLX,SG,STD) ﾋﾟﾝｸ |
3 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-43050B0 |
LXS11,YXS1#..(CRW,TAX)..(DLX,STD) ﾄﾞｱﾄﾘﾑ=TYPE A-*104 & ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ=ｳﾝﾃﾝｾｷ ﾜﾝﾀﾂﾁ ｼｷ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-43050B0 |
YXS10 ﾄﾞｱﾄﾘﾑ=TYPE A-*104 & ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ=ｳﾝﾃﾝｾｷ ﾜﾝﾀﾂﾁ ｼｷ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-43010B0 |
LXS11,YXS1#..(CRW,TAX)..(DLX,STD) ﾄﾞｱﾄﾘﾑ=TYPE A-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-43020B0 |
LXS11,YXS1#..(CRW,TAX)..(DLX,STD) ﾄﾞｱﾄﾘﾑ=TYPE A-*104 & ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ=FR-RH,RR-LH ﾉﾐ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-43021B0 |
LXS11,YXS1#..(CRW,TAX)..(DLX,STD) ﾄﾞｱﾄﾘﾑ=TYPE A-*104 & ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ=FR-RH,RR-LH ﾉﾐ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-43011B0 |
LXS11,YXS1#..(CRW,TAX)..(DLX,STD) ﾄﾞｱﾄﾘﾑ=TYPE A-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-43051B0 |
GXS10,YXS10 ﾄﾞｱﾄﾘﾑ=TYPE A-*104 & ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ=ｳﾝﾃﾝｾｷ ﾜﾝﾀﾂﾁ ｼｷ),SHADOW GRAY,TRIM1# |
1 | ||
| 67640-43011B1 |
YXS1#..(CRW,TAX)..(4FC,4H,5F)..(DLX,STD) ﾄﾞｱﾄﾘﾑ=TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 67640-43051B1 |
YXS10..CRW..(4FC,4H) ﾄﾞｱﾄﾘﾑ=TYPE A-*104 & ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ=ｳﾝﾃﾝｾｷ ﾜﾝﾀﾂﾁ ｼｷ),DK.GRAY,TRIM1# |
1 | ||
| 67640-43021B1 |
YXS1#..(CRW,TAX)..(4FC,4H,5F)..(DLX,STD) ﾄﾞｱﾄﾘﾑ=TYPE A-*104 & ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ=FR-RH,RR-LH ﾉﾐ),DK.GRAY,TRIM1# |
1 | ||
| 67640-43270B0 |
YXS10..CRW..4FC ﾄﾞｱﾄﾘﾑ=TYPE A-*104 & ｸﾗｳﾝ ｺﾝﾌｵ-ﾄ(ｳｴﾙｷﾔﾌﾞ)TYPE 2 & ｱﾘ(ｺｳｶｲｺｳ ｺｳｾｷﾄﾞｱ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ),DK.GRAY,TRIM1# |
1 | ||
| 67640-43250B0 |
YXS10..CRW..4FC ﾄﾞｱﾄﾘﾑ=TYPE A-*104 & ｸﾗｳﾝ ｺﾝﾌｵ-ﾄ(ｳｴﾙｷﾔﾌﾞ)TYPE 2 & ｱﾘ(ｺｳｶｲｺｳ ｺｳｾｷﾄﾞｱ),DK.GRAY,TRIM1# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-17030 |
GXS10,LXS11,SXS11,YXS1# ｲｴﾛｰ |
3 | ||
| 67771-17030 |
YXS11..DLX,SG;GXS10,LXS11,SXS11,YXS10 ｲｴﾛｰ |
3 | ||
| 67771-17030 |
GXS10,LXS11,SXS11,YXS1# ｲｴﾛｰ |
8 | ||
| 67771-17030 |
SXS13,YXS1#..DLX,SG,STD ｲｴﾛｰ |
8 | ||
| 67771-28020 |
GXS10,LXS11,SXS11,YXS1# ﾚｯﾄﾞ |
5 | ||
| 67771-17030 |
SXS13,YXS1#..(4FC,4H,5F)..(DLX,SG,STD) ｲｴﾛｰ |
6 | ||
| 67771-17030 |
YXS1#..(4FC,5F)..(DLX,SG,STD) ｲｴﾛｰ |
5 | ||
| 67771-43010 |
SXS13,YXS1#..(4FC,4H,5F)..(DLX,SG,STD) ﾋﾟﾝｸ |
2 | ||
| 67771-43010 |
YXS1#..(4FC,5F)..(DLX,SG,STD) ﾋﾟﾝｸ |
3 | ||
| 67665B - REFLECTOR, REAR DOOR TRIM, RH | ||||
| 67665-20010 |
YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 67665-20010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68173-43010 |
SXS13,YXS1#..(4FC,4H,5F)..(DLX,SG,STD) |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-43020 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68174-43030 |
YXS10..CRW..4FC ｸﾗｳﾝ ｺﾝﾌｵ-ﾄ(ｳｴﾙｷﾔﾌﾞ)TYPE 2 & ｱﾘ(ｺｳｶｲｺｳ ｺｳｾｷﾄﾞｱ) |
1 | ||
| 68174-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 68174-43020 |
SXS13,YXS1#..(4FC,4H,5F)..(DLX,SG,STD) |
1 | ||
| Linked diagrams | ||||
| 7403 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
