YXS10-AEPRN (1995)
Toyota Crown Comfort/Sed
Production
Dec 1995
-
Aug 2008
Engine
3YPE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

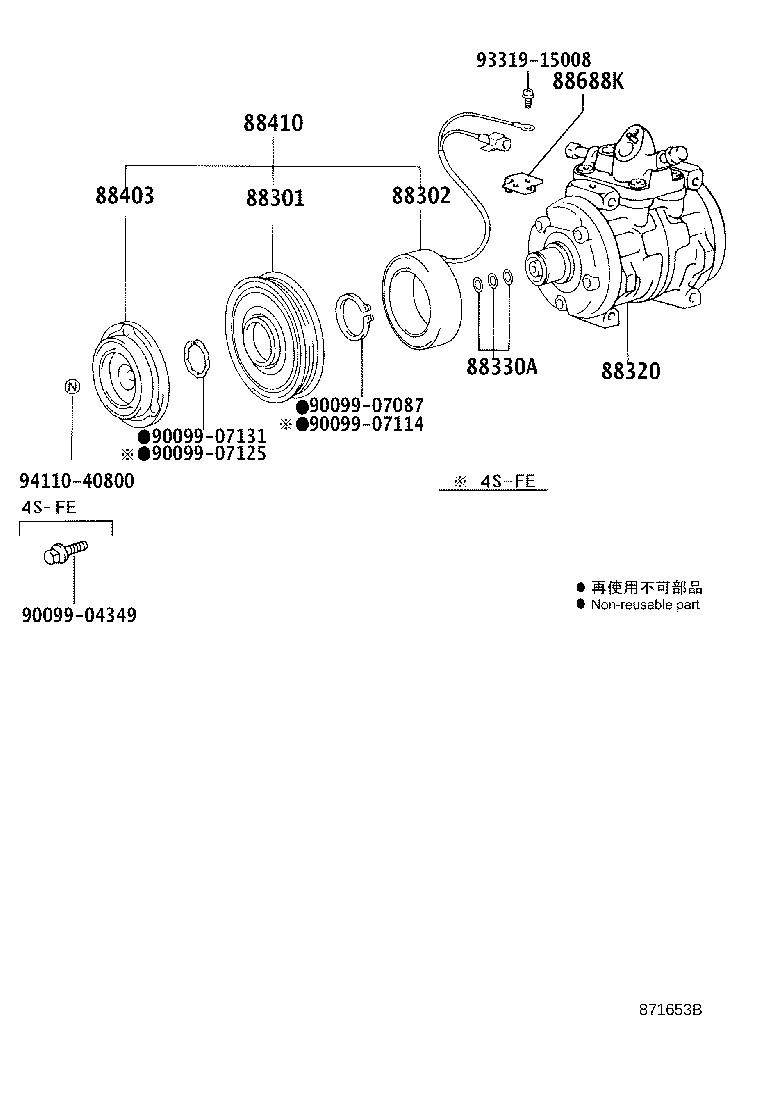

ILLUST NO. 2 OF 2(9512-0108)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22250 |
GXS10,YXS1# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-22300 |
LXS11,YXS1# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-22700 |
YXS1# |
1 | ||
| 88320-43040 |
YXS1#..4FC,5F |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-12050 |
GXS10,LXS11,YXS1# |
1 | ||
| 88335-14020 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-12030 |
GXS10,LXS11,YXS1# |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-22490 |
YXS1# |
1 | ||
| 88410-43040 |
YXS1#..4FC,5F |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-3A560 |
GXS10,YXS1# |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90099-07131 | ||||
| 93319-15008 | ||||
| 94110-40800 | ||||

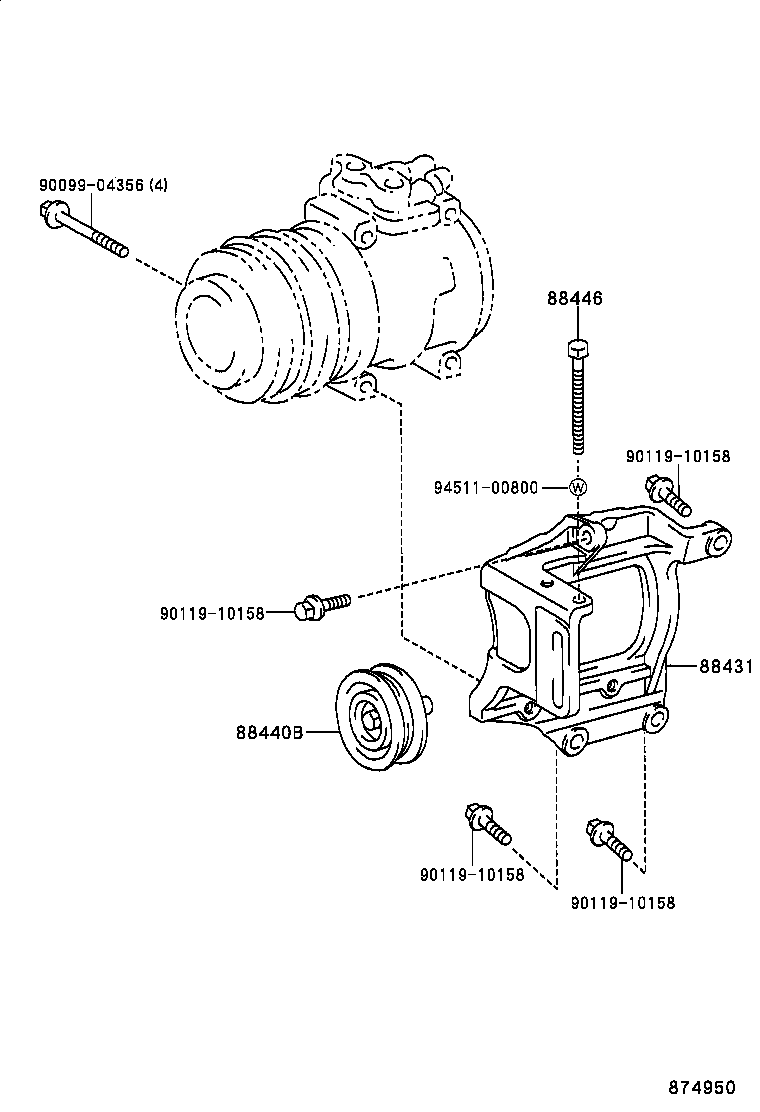

ILLUST NO. 1 OF 2(9512-0108)YXS1#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-43010 |
YXS1# |
1 | ||
| 88431-43030 |
YXS1#..4FC,5F |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-26100 |
GXS10,YXS1# |
1 | ||
| 88440-26100 |
GXS10,YXS1#..ATM |
1 | ||
| 88440-43010 |
YXS1#..4FC,5F |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-35010 |
YXS1# |
1 | ||
| 88446-35010 |
YXS1#..4FC,5F |
1 | ||
| Common parts | ||||
| 90099-04356 | ||||
| 90119-10158 | ||||
| 94511-00800 | ||||

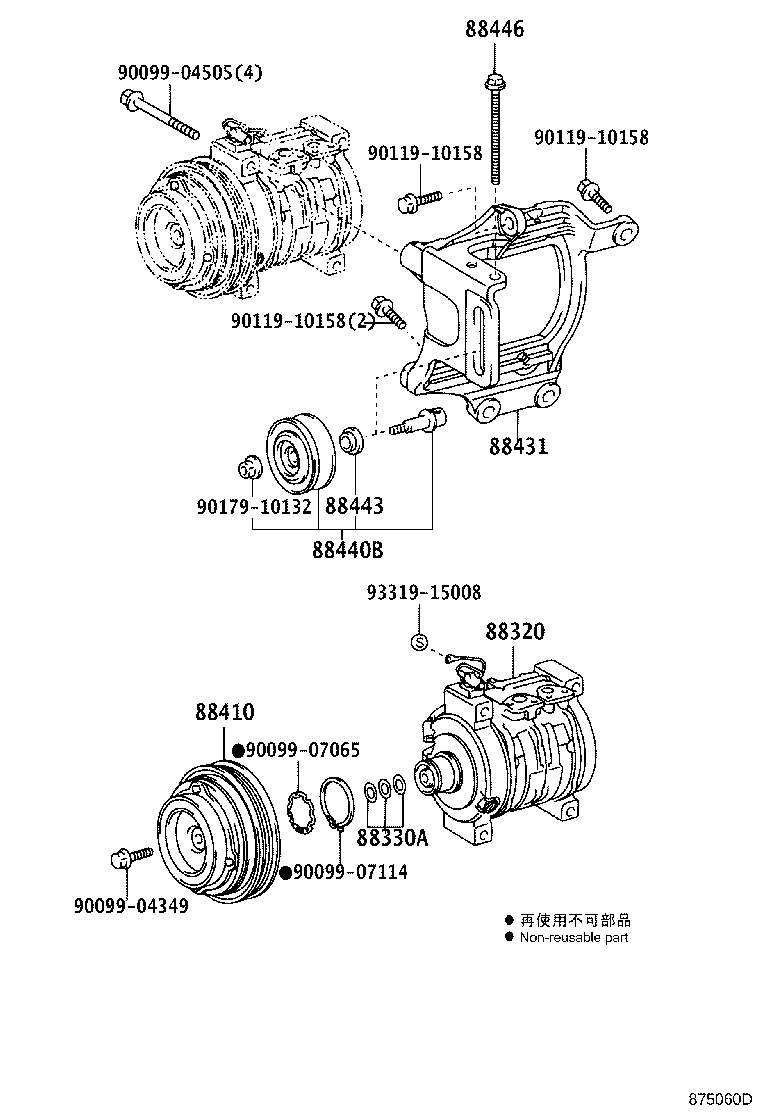

ILLUST NO. 1 OF 2(0108- )YXS1#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-22700 |
YXS1# |
1 | ||
| 88320-43040 |
YXS1#..4FC,5F |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-12050 |
GXS10,LXS11,YXS1# |
1 | ||
| 88335-14020 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-22490 |
YXS1# |
1 | ||
| 88410-43040 |
YXS1#..4FC,5F |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-43010 |
YXS1# |
1 | ||
| 88431-43030 |
YXS1#..4FC,5F |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-26100 |
GXS10,YXS1# |
1 | ||
| 88440-26100 |
GXS10,YXS1#..ATM |
1 | ||
| 88440-43010 |
YXS1#..4FC,5F |
1 | ||
| 88443 - COLLAR, IDLE PULLEY | ||||
| 88443-36010 |
YXS1#..4FC,5F |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-35010 |
YXS1# |
1 | ||
| 88446-35010 |
YXS1#..4FC,5F |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-04505 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-10158 | ||||
| 90179-10132 | ||||
| 93319-15008 | ||||
