Toyota Crown comfort/sed YXS10 ELECTRONIC FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
28515 - RESISTOR, SOLENOID
28515-73040	1GGPE,3YPE..GXS10,YXS1#	12/1995 - 08/2001	1
28515-73040	3YPE..YXS1#..4FC,5F	08/2001 - 12/2999	1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02004	GXS10,SXS11,YXS1#	12/1995 - 08/2001	1
90987-02027	GBS12,YXS1#..4FC,5F	08/2001 - 12/2999	1
85915A - RELAY, MAIN
90987-02009	GXS10,SXS11,YXS1#	12/1995 - 08/2001	1
90987-02009	GBS12,YXS1#..4FC,5F	08/2001 - 12/2999	1
89261 - COMPUTER, ENGINE STOP AND START
89261-43010	YXS1#..(CRW,TAX)..ATM..(DLX,STD)	08/2001 - 12/2999	1
89412A - SENSOR, E.G.R GAS TEMPERATURE
89412-43010	YXS1#..4FC,5F	08/2001 - 12/2999	1
89420 - SENSOR ASSY, VACUUM
89420-0W070	GXS10,SXS11,YXS1# NO.1	04/1996 - 01/1998	1
89420-0W070	YXS1# NO.1	12/1995 - 04/1996	1
89420-43020	YXS10..CRW..(4FC,4H);SXS13,YXS1#..KYO,SED,TAX NO.1	08/2001 - 08/2008	1
89420-30130	YXS10..CRW..ATM;GBS12,YXS11..4FC..(SDX,STD) ｱﾘ(ABS),NO.2	08/2001 - 08/2008	1
89420-43020	SXS11,YXS1# NO.1	01/1998 - 08/2001	1
89420-52030	YXS1#..(CRW,TAX)..ATM..(DLX,STD) NO.2	08/2001 - 02/2004	1
89420 - SENSOR ASSY, VACUUM
89420-0W070	GXS10,SXS11,YXS1# NO.1	04/1996 - 01/1998	1
89420-0W070	YXS1# NO.1	12/1995 - 04/1996	1
89420-43020	YXS10..CRW..(4FC,4H);SXS13,YXS1#..KYO,SED,TAX NO.1	08/2001 - 08/2008	1
89420-30130	YXS10..CRW..ATM;GBS12,YXS11..4FC..(SDX,STD) ｱﾘ(ABS),NO.2	08/2001 - 08/2008	1
89420-43020	SXS11,YXS1# NO.1	01/1998 - 08/2001	1
89420-52030	YXS1#..(CRW,TAX)..ATM..(DLX,STD) NO.2	08/2001 - 02/2004	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010	GXS10,SXS11,YXS1#	12/1995 - 08/2001	1
89422-20010	YXS10..CRW..(4FC,4H);GXS10,YXS1#..KYO,SED,TAX	08/2001 - 08/2008	1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010	YXS1#..4FC,5F	08/2001 - 12/2999	1
89424-12010	GXS10,LXS11,SXS11,YXS1#	12/1995 - 08/2001	1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-30120	GXS10,YXS1#	12/1995 - 04/2001	1
89452-43010	YXS1#	05/2001 - 08/2001	1
89452-43010	GXS10,YXS1#	08/2001 - 08/2008	1
89661 - COMPUTER, ENGINE CONTROL
89661-43061	YXS1# FUJITSU TEN	02/2002 - 10/2002	1
89661-43060	YXS1# FUJITSU TEN	08/2001 - 02/2002	1
89661-43063	YXS1# FUJITSU TEN	05/2003 - 06/2004	1
89661-43070	YXS1#..(CRW,TAX)..ATM..(DLX,STD) FUJITSU TEN,ｱﾘ(ﾄﾖﾀｽﾄﾂﾌﾟｱﾝﾄﾞｺﾞ- ｼｽﾃﾑ)	08/2001 - 02/2002	1
89661-43071	YXS1#..(CRW,TAX)..ATM..(DLX,STD) FUJITSU TEN,ｱﾘ(ﾄﾖﾀｽﾄﾂﾌﾟｱﾝﾄﾞｺﾞ- ｼｽﾃﾑ)	02/2002 - 10/2002	1
89661-43010	YXS1# FUJITSU TEN	12/1995 - 08/2001	1
89661-43072	YXS1#..(CRW,TAX)..ATM..(DLX,STD) FUJITSU TEN,ｱﾘ(ﾄﾖﾀｽﾄﾂﾌﾟｱﾝﾄﾞｺﾞ- ｼｽﾃﾑ)	10/2002 - 05/2003	1
89661-43062	YXS1# FUJITSU TEN	10/2002 - 05/2003	1
89661-43073	YXS1#..(CRW,TAX)..ATM..(DLX,STD) FUJITSU TEN,ｱﾘ(ﾄﾖﾀｽﾄﾂﾌﾟｱﾝﾄﾞｺﾞ- ｼｽﾃﾑ)	05/2003 - 06/2004	1
89661-43120	YXS1#..(CRW,SED,TAX)..4FC FUJITSU TEN,ｱﾘ(ﾄﾖﾀｽﾄﾂﾌﾟｱﾝﾄﾞｺﾞ- ｼｽﾃﾑ)	06/2004 - 12/2999	1
89661-43130	YXS1#..4FC,5F FUJITSU TEN	06/2004 - 12/2999	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-43010	YXS1#..DLX,SG,STD	08/2001 - 05/2004	1
89667-43010	LXS11..5F;GXS10,SXS11,YXS1#	12/1995 - 08/2001	1
89667-43010	YXS1#..(CRW,TAX)..(4FC,5F)	06/2004 - 12/2999	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-43010	LXS11..5F;GXS10,SXS11,YXS1#	12/1995 - 08/2001	1
89668-43010	YXS1#..DLX,SG,STD	08/2001 - 05/2004	1
89668-43010	YXS1#..(CRW,TAX)..(4FC,5F)	06/2004 - 12/2999	1
Common parts
90430-12005
90430-12221
91631-J0612
91635-G0616
93319-15010
93568-55014
93568-55016

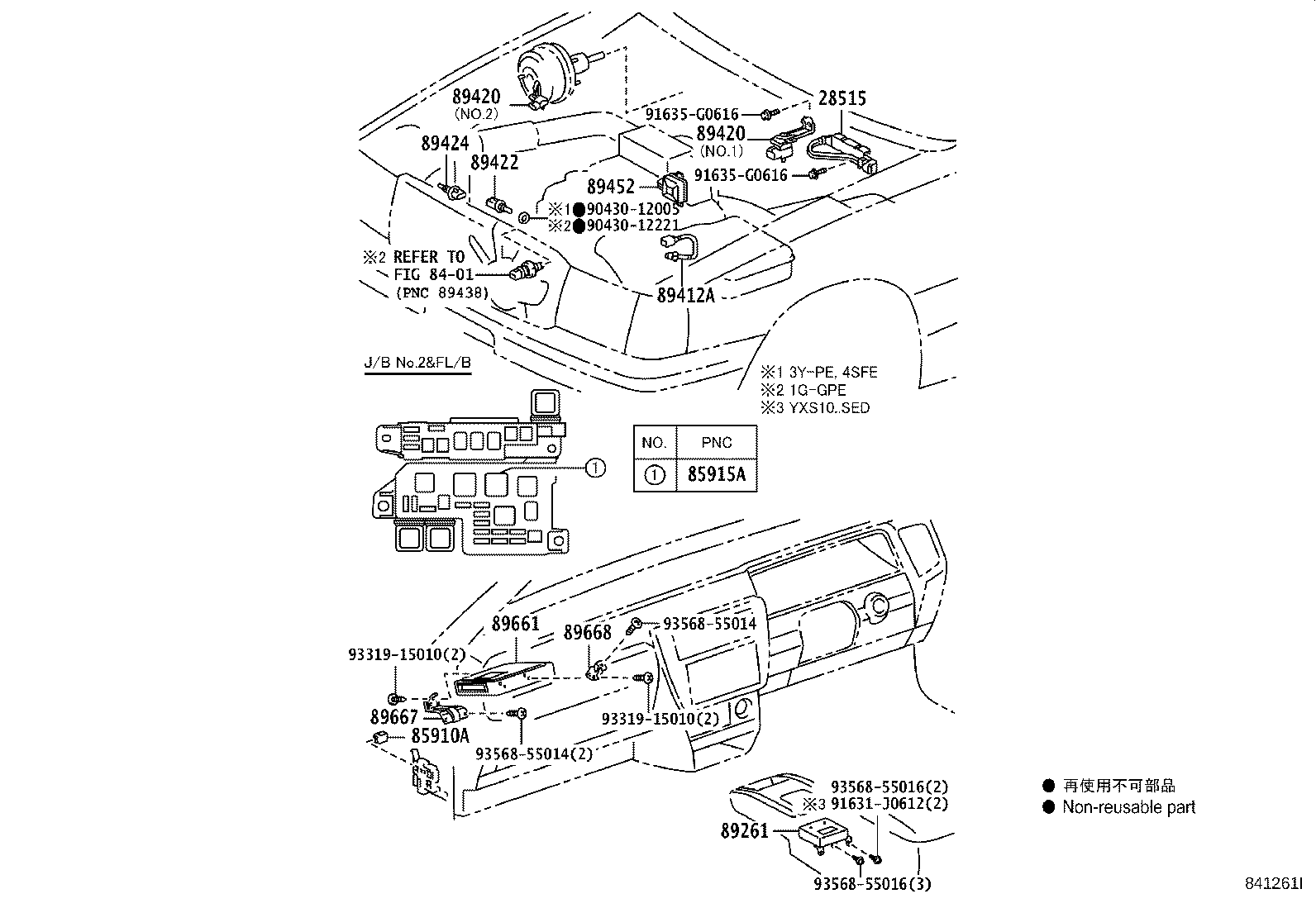

Linked diagrams
8401

YXS10-AEPRN (1995)

(9512- )GXS10,LXS11,SXS11,YXS1#
