Toyota Crown comfort/sed YXS10 ACCELERATOR LINK

YXS10-AEPRN (1995)

Toyota Crown Comfort/Sed

Production Dec 1995 - Aug 2008

Engine 3YPE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

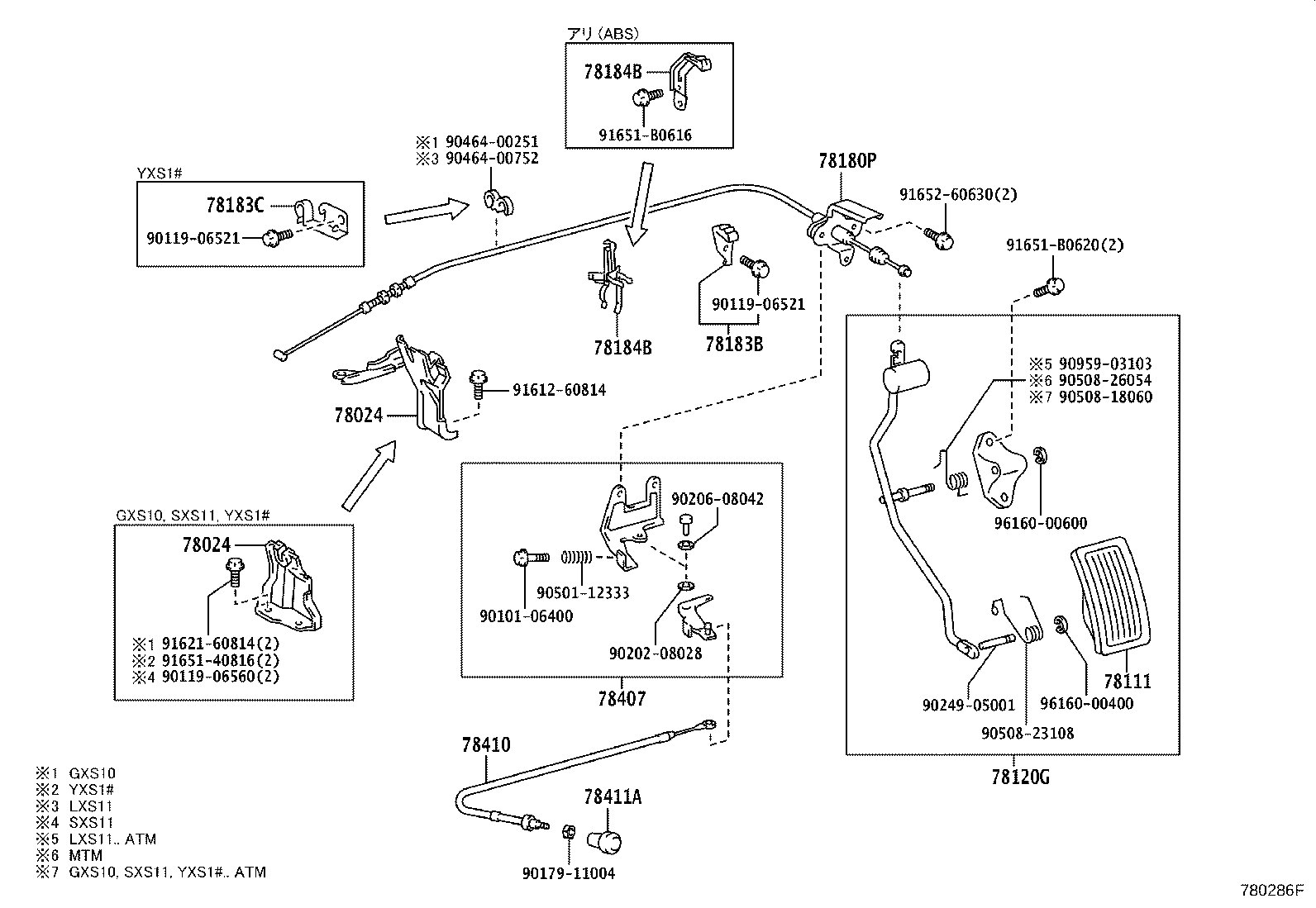

(9512-0108)

Click highlighted areas on diagram

Part #	Description	Period	Qty
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22080	GXS10,YXS1#	12/1995 - 08/2001	1
78024-22080	YXS1#..4FC,5F;YXS10..CRW..4HC	08/2001 - 12/2999	1
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22080	GXS10,YXS1#	12/1995 - 08/2001	1
78024-22080	YXS1#..4FC,5F;YXS10..CRW..4HC	08/2001 - 12/2999	1
78111 - PEDAL, ACCELERATOR
78111-22010	GXS10,LXS11,SXS11,YXS1#	12/1995 - 02/1997	1
78111-30120	GXS10,LXS11,SXS11,YXS1#	02/1997 - 08/2001	1
78111-30081	YXS1#..(4FC,5F)..(DLX,SG,STD)	10/2002 - 12/2999	1
78111-30120	GBS12,YXS1#..4FC,5F ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	08/2001 - 12/2999	1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-43020	GXS10,SXS11,YXS1#..ATM	12/1995 - 08/2001	1
78120-43050	YXS1#..4FC..(DLX,SG,STD)	10/2002 - 12/2999	1
78120-43020	GBS12,YXS1#..4FC ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	08/2001 - 12/2999	1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-43020	YXS1#	12/1995 - 08/2001	1
78180-43021	YXS1#..4FC,5F	08/2001 - 12/2999	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-22061	GXS10,LXS11,SXS11,YXS1#	12/1995 - 08/2001	1
78183-22061	YXS10..CRW..(4FC,4H);GBS12,GXS1#,SXS13,YXS1#..KYO,SED,TAX	08/2001 - 08/2008	1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-43010	YXS1#	12/1995 - 08/2001	1
78183-43010	YXS1#..4FC,5F	08/2001 - 12/2999	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-43020	YXS1#	12/1995 - 05/1996	1
78184-43030	GXS10,LXS11,SXS11,YXS1# ｱﾘ(ABS)	01/1997 - 08/2001	1
78184-43021	YXS1#	05/1996 - 07/1998	1
78184-43030	YXS1#..(4FC,5F)..(DLX,SG,STD) ｱﾘ(ABS)	08/2001 - 12/2999	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-43020	YXS1#	12/1995 - 05/1996	1
78184-43030	GXS10,LXS11,SXS11,YXS1# ｱﾘ(ABS)	01/1997 - 08/2001	1
78184-43021	YXS1#	05/1996 - 07/1998	1
78184-43030	YXS1#..(4FC,5F)..(DLX,SG,STD) ｱﾘ(ABS)	08/2001 - 12/2999	1
78407 - ARM SUB-ASSY, THROTTLE CONTROL
78407-22050	GXS10,YXS1# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	12/1995 - 08/2001	1
78407-22050	YXS1#..4FC,5F ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	08/2001 - 12/2999	1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-43010	GXS10,YXS1# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	12/1995 - 08/2001	1
78410-43010	YXS1#..4FC,5F ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	08/2001 - 12/2999	1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-43010	GXS10,YXS1# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	12/1995 - 08/2001	1
78411-43010	YXS1#..4FC,5F ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	08/2001 - 12/2999	1
Common parts
90101-06400
90119-06521
90119-06560
90179-11004
90202-08028
90206-08042
90249-05001
90464-00251
90464-00752
90501-12333
90508-18060
90508-23108
90508-26054
90959-03103
91612-60814
91621-60814
91651-40816
91651-B0616
91651-B0620
91652-60630
96160-00400
96160-00600

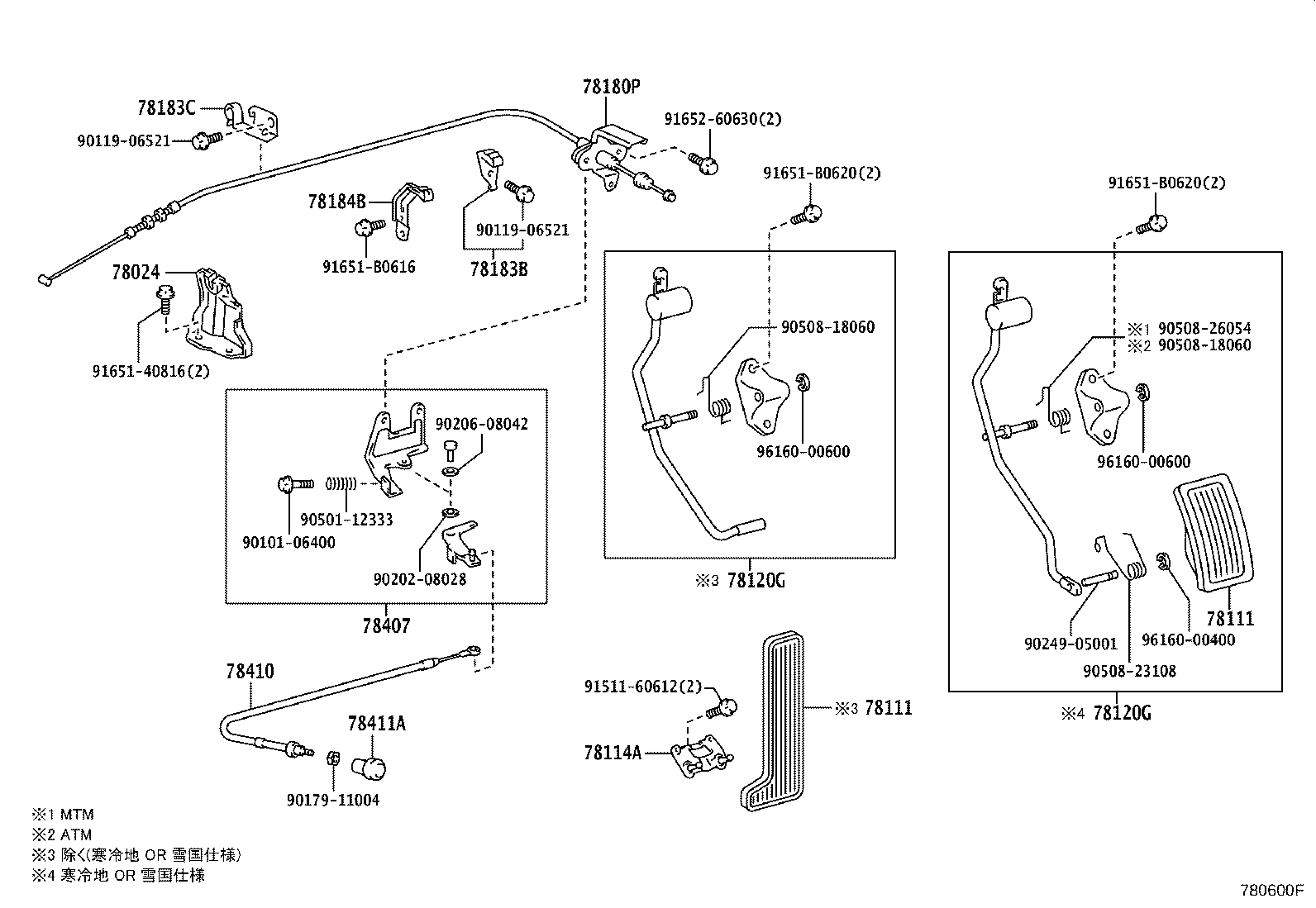

(0108- )YXS1#

Click highlighted areas on diagram

Part #	Description	Period	Qty
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-22080	GXS10,YXS1#	12/1995 - 08/2001	1
78024-22080	YXS1#..4FC,5F;YXS10..CRW..4HC	08/2001 - 12/2999	1
78111 - PEDAL, ACCELERATOR
78111-22010	GXS10,LXS11,SXS11,YXS1#	12/1995 - 02/1997	1
78111-30120	GXS10,LXS11,SXS11,YXS1#	02/1997 - 08/2001	1
78111-30081	YXS1#..(4FC,5F)..(DLX,SG,STD)	10/2002 - 12/2999	1
78111-30120	GBS12,YXS1#..4FC,5F ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	08/2001 - 12/2999	1
78111 - PEDAL, ACCELERATOR
78111-22010	GXS10,LXS11,SXS11,YXS1#	12/1995 - 02/1997	1
78111-30120	GXS10,LXS11,SXS11,YXS1#	02/1997 - 08/2001	1
78111-30081	YXS1#..(4FC,5F)..(DLX,SG,STD)	10/2002 - 12/2999	1
78111-30120	GBS12,YXS1#..4FC,5F ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	08/2001 - 12/2999	1
78114A - BRACKET, ACCELERATOR PEDAL SUPPORT
78114-30050	YXS1#..(4FC,5F)..(DLX,SG,STD)	10/2002 - 12/2999	1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-43020	GXS10,SXS11,YXS1#..ATM	12/1995 - 08/2001	1
78120-43050	YXS1#..4FC..(DLX,SG,STD)	10/2002 - 12/2999	1
78120-43020	GBS12,YXS1#..4FC ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	08/2001 - 12/2999	1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-43020	GXS10,SXS11,YXS1#..ATM	12/1995 - 08/2001	1
78120-43050	YXS1#..4FC..(DLX,SG,STD)	10/2002 - 12/2999	1
78120-43020	GBS12,YXS1#..4FC ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	08/2001 - 12/2999	1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-43020	YXS1#	12/1995 - 08/2001	1
78180-43021	YXS1#..4FC,5F	08/2001 - 12/2999	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-22061	GXS10,LXS11,SXS11,YXS1#	12/1995 - 08/2001	1
78183-22061	YXS10..CRW..(4FC,4H);GBS12,GXS1#,SXS13,YXS1#..KYO,SED,TAX	08/2001 - 08/2008	1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-43010	YXS1#	12/1995 - 08/2001	1
78183-43010	YXS1#..4FC,5F	08/2001 - 12/2999	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-43020	YXS1#	12/1995 - 05/1996	1
78184-43030	GXS10,LXS11,SXS11,YXS1# ｱﾘ(ABS)	01/1997 - 08/2001	1
78184-43021	YXS1#	05/1996 - 07/1998	1
78184-43030	YXS1#..(4FC,5F)..(DLX,SG,STD) ｱﾘ(ABS)	08/2001 - 12/2999	1
78407 - ARM SUB-ASSY, THROTTLE CONTROL
78407-22050	GXS10,YXS1# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	12/1995 - 08/2001	1
78407-22050	YXS1#..4FC,5F ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	08/2001 - 12/2999	1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-43010	GXS10,YXS1# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	12/1995 - 08/2001	1
78410-43010	YXS1#..4FC,5F ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	08/2001 - 12/2999	1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-43010	GXS10,YXS1# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	12/1995 - 08/2001	1
78411-43010	YXS1#..4FC,5F ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	08/2001 - 12/2999	1
Common parts
90101-06400
90119-06521
90179-11004
90202-08028
90206-08042
90249-05001
90501-12333
90508-18060
90508-23108
90508-26054
91511-60612
91651-40816
91651-B0616
91651-B0620
91652-60630
96160-00400
96160-00600

YXS10-AEPRN (1995)

(9512-0108)

(0108- )YXS1#
